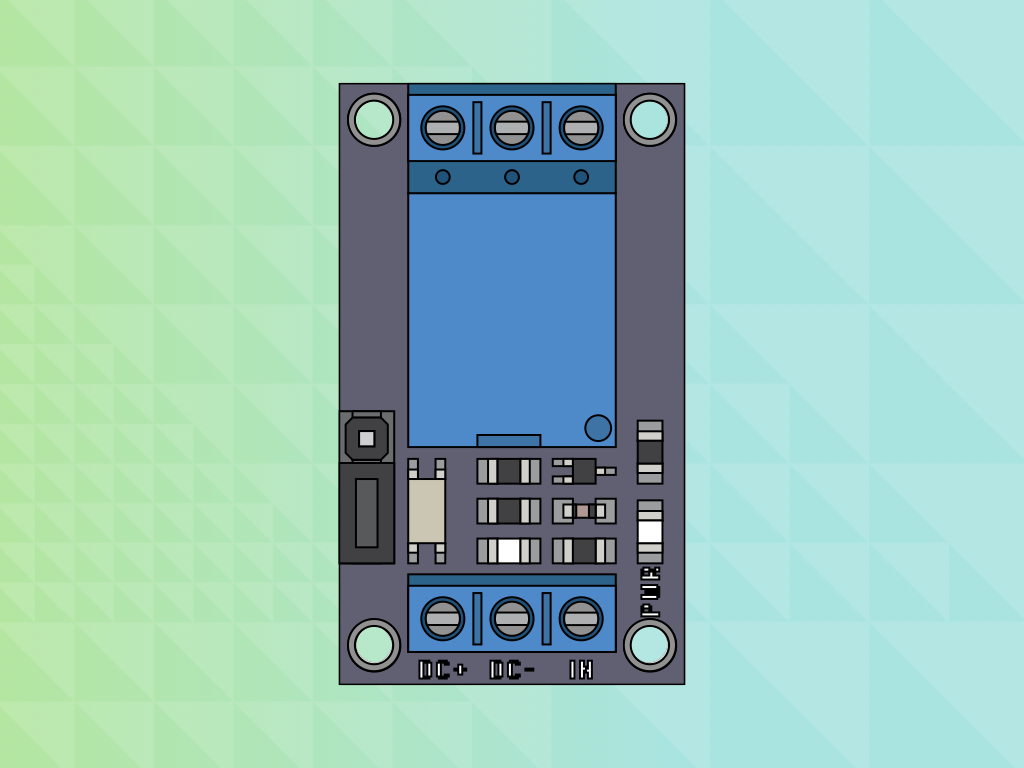

1-channel Relay with micro:bit

Difficulty
Easy
Steps
12

A relay is an electromagnetic switch. It is turned on by a small current but can turn on or off a much larger electric current. This is immensely useful as they can be used both as switches as well as amplifiers (converting small currents to large currents).

In this guide, you will learn to connect a relay to the micro:bit and get it to turn a light on and off.

You can use relays are used in all sorts of things, and you can find them used in cars and computer boards just to name a few examples.

Parts Used in This Guide

Buy

What is a relay?

Before we begin, let's talk about what a relay is exactly!

  • A relay is an electromagnetic switch that has contacts in it that can trigger a circuit to be open or close.
  • It's the kind of switch that can be controlled by means of a control signal.
  • The two states of a relay:
    • Open state: When open, that means the circuit is interrupted and so no current flows.
    • Closed state: When closed, current can flow!

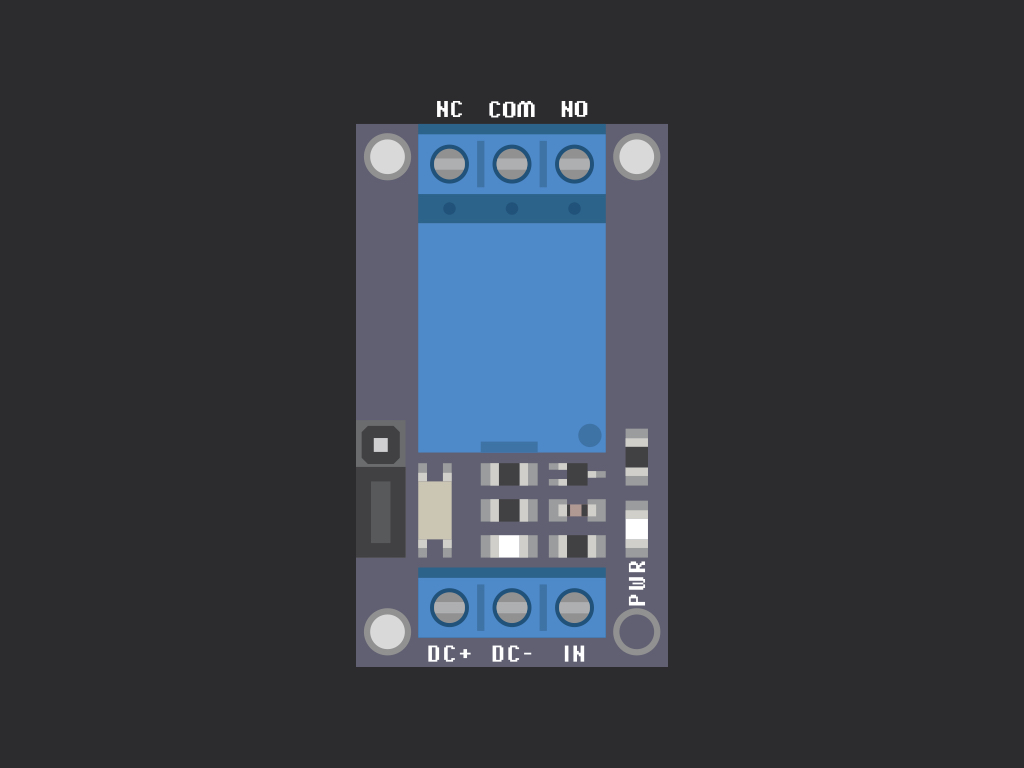

Now take a look at the relay module and you might notice that there are six connections.

Three of these control the state of the relay:

  • Direct Current + (DC+): In this guide, we connected it to 3.3V
  • Direct Current - (DC-):  Connected to GND.
  • Input (IN): This is the signal connection that is used to control the relay.

Three of the other connections control the circuit:

  • NC - Stands for 'Normally closed'. it is connected to COM when there is a trigger in the relay.
  • NO - Stands for 'Normally open'. It is normally connected to COM when there is no trigger in the relay.
  • COM - Stands for 'Common'. it is the part of the relay that moves.
    • When a relay is off, COM is connected to NC. NO is not connected here.
    • When the relay turns on, it moves from NC to NO.

Step 1  Connect module to breadboard

Step 2  Connect GND to DC-

Step 3  Connect P0 to IN

Step 4  Connect GND to LED (Negative lead)

Step 5  Add a resistor

Step 6  Connect COM to resistor

Step 7  Connect NO to +

Step 8  Connect 3.3V to +

Step 9  Make the LED blink


  • From the 'Pins' tab, grab a 'digital write pin P0 to 0' block.
    • Note: We use P0 here because the relay's 'IN' pin is connected to Pin 0 of the micro:bit.
  • Click on the 'Basic' tab and get a 'pause (ms)' block. Set it to 1000 for 1 second.
  • Right-click on 'digital write pin P0 to 0' and select 'Duplicate'.
  • Change its value to 'P0' and '1'.
    • Note: The connection to NO means a HIGH or '1' signal will turn the LED on.
  • Use another 'pause (ms) 1000' block and attach it under the second 'digital write pin' block as shown.

Step 10  Upload the code

It's time to upload the code and see it for yourself!

  1. Connect the micro:bit to your computer using a microUSB cable

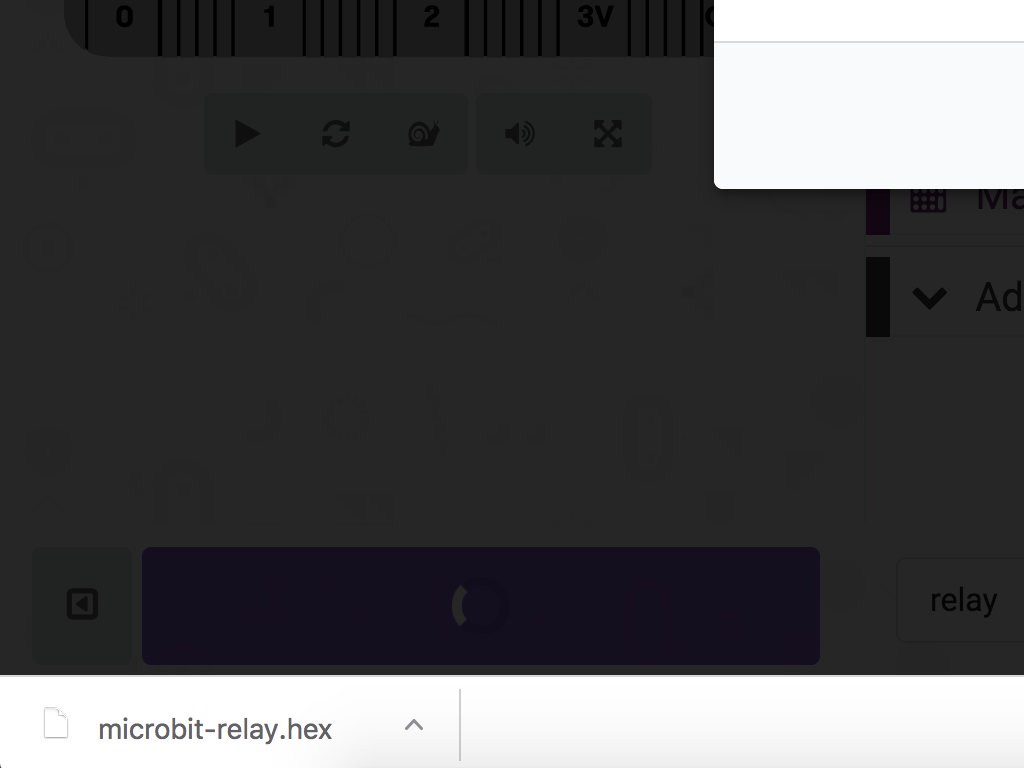

  2. Click on the 'Download' button over in MakeCode editor

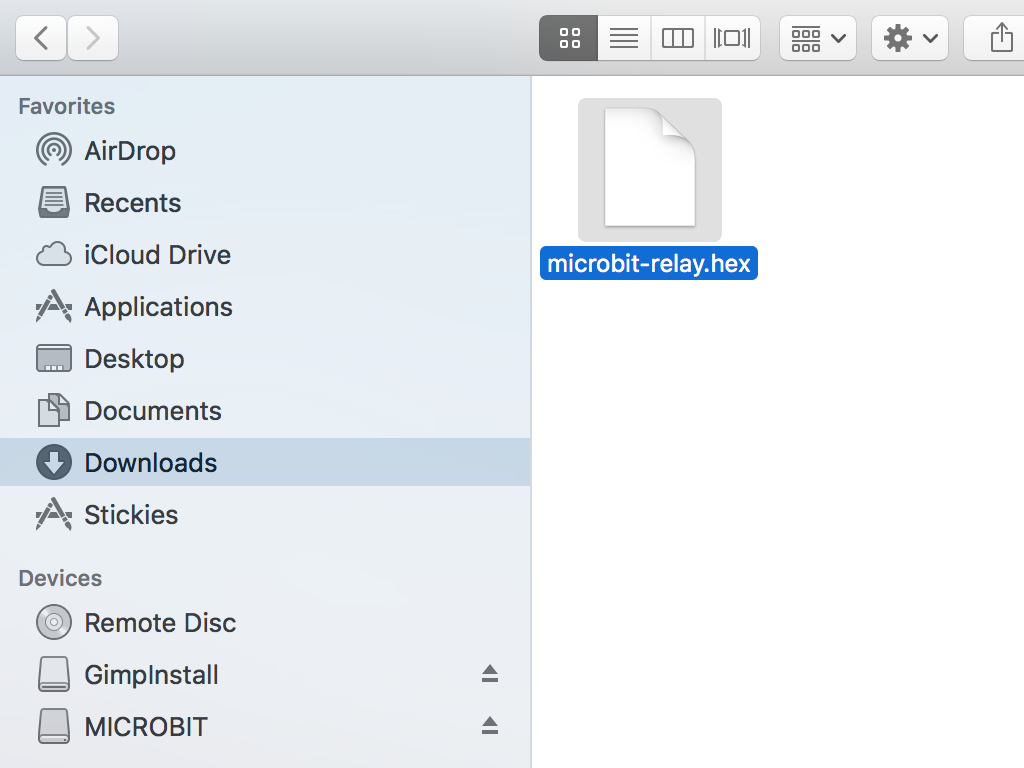

  3. Find the downloaded .hex file in the 'Downloads' folder
  4. Drag and drop it to the MICROBIT drive

Step 11  Turn LED off

  • Now, remove the connection from NO.
  • Connect NC to 3.3v.
  • With the same code on the micro:bit,
  •  A connection to NC means the LED will turn off when the relay gives off a HIGH or '1' signal.
