Today, we will learn about another electro-mechanical switch, the rotary encoder. It is a unique component as its output signal can be used to determine the direction that its knob is being rotated. Not only that, but it is capable of continuous rotation, unlike a regular potentiometer.

In this guide, we will connect it to a micro:bit and program it using the MakeCode editor.

After completing this guide, you will understand the basics in using a rotary encoder. This can be used to create many useful projects, such as a volume controller for your music or even a MIDI device to make your own music!

Parts Used in This Guide

Buy

Step 1  The Module

Let's take a closer look at the rotary encoder module.

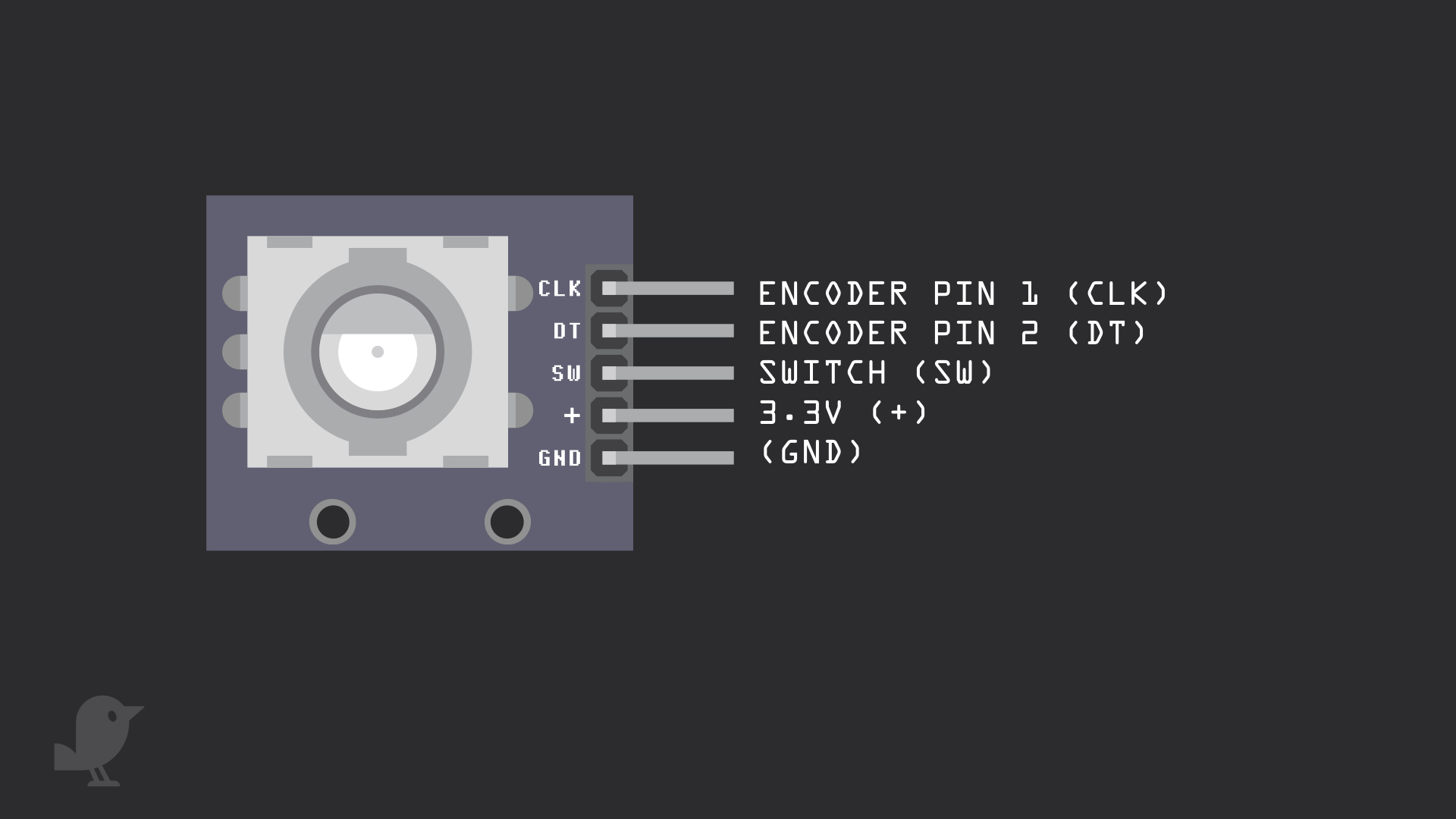

It has five pins:

  • Encoder Pin 1 (CLK)
  • Encoder Pin 2(DT)
  • Switch (SW)
  • 3.3V  : This pin on the module is labelled '+'. We'll connect the VCC pin to 3.3V on the micro:bit
  • GND: In electronics, we define a point in a circuit to be a kind of zero volts or 0V reference point, on which to base all other voltage measurements. This point is called  ground or GND.
    • Note: Voltage is the difference in potential between two points. As it is difficult to talk about voltage without a reference point, we need another point to compare it to.
  • Note: Please use the M-F jumper wires included in the kit to connect this module to the breadboard.

Step 2  Connect GND to GND

Step 3  Connect 3.3V to +

Step 4  Connect P0 to SW

Step 5  Connect P1 to DT

Step 6  Connect P2 to CLK

Step 7  Download the KY-040 package

First, open up MakeCode editor and start a new project.

We will need to download the KY-040 package for the rotary encoder module to work.

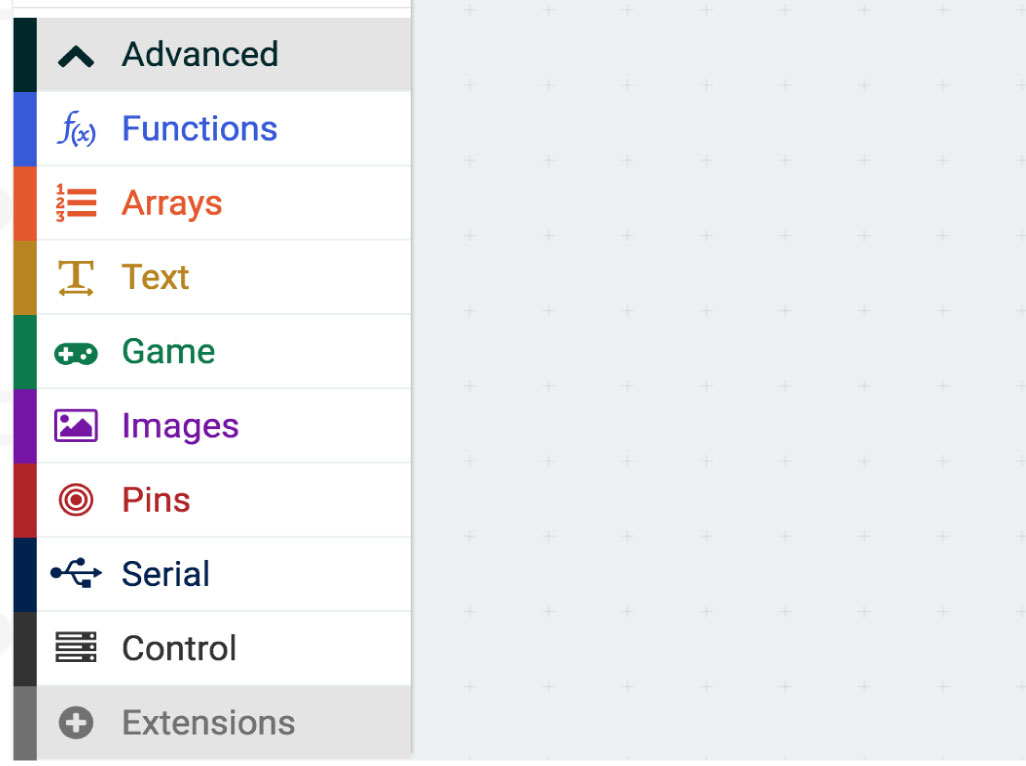

  1. Click on the 'Advanced' tab
  2. Click on 'Extensions' tab

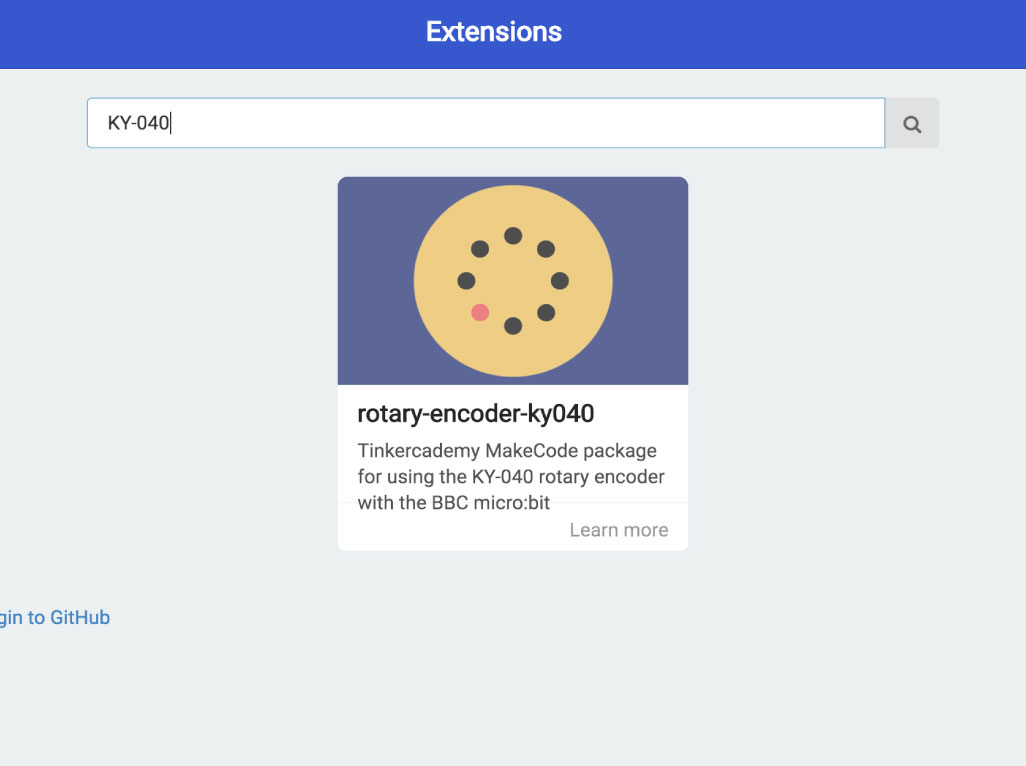

  3. Type 'KY-040' in the search bar
  4. Click on 'rotary-encoder-KY-040' library and it will be added to the MakeCode editor

Step 8  Turn it left or right!

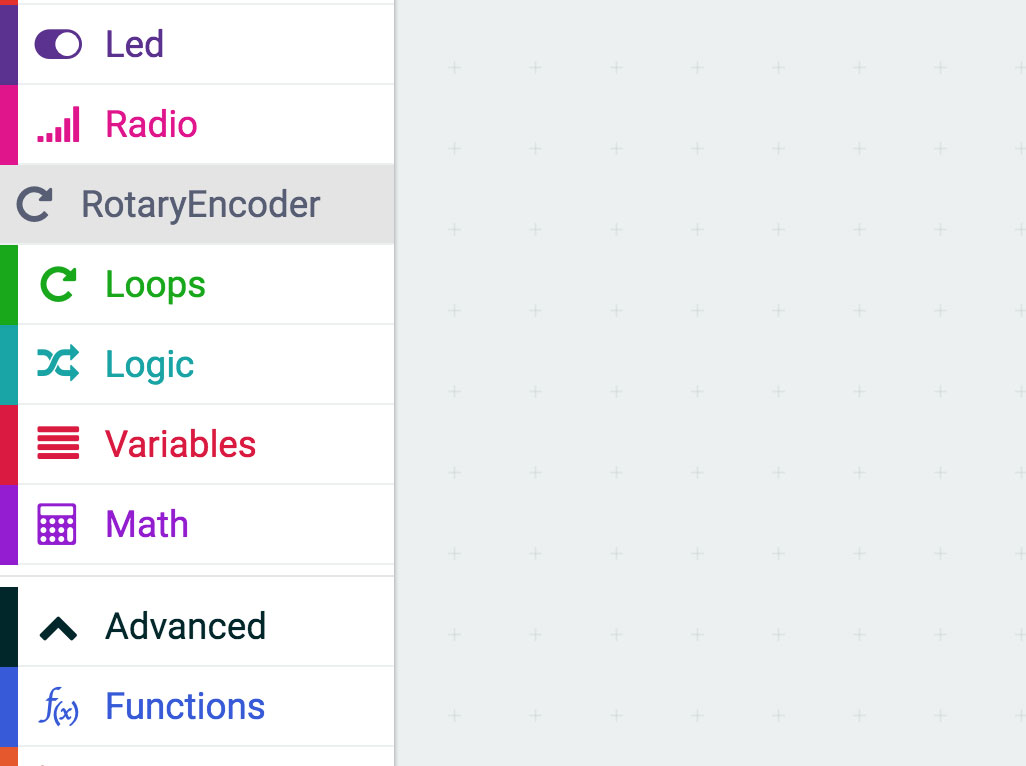

  • From 'RotaryEncoder' tab, drag and drop a 'connect clk ... dt ... sw ..." block into the editor
  • Change the values:
    • CLK pin to Pin 2
    • dt pin to Pin 1
    • SW pin to Pin 0
  • Grab a 'on rotated' block from 'RotaryEncoder' tab.
  • Duplicate the 'on rotated' block by right-clicking it and selecting 'Duplicate'
  • change its value from 'Left' to 'Right'
  • From 'Basic' tab, get out a 'show string' block
  • We want to show the string "<" when the rotary encoder is turned to the left, and show the string ">" when it is turned to the right.

Step 9  Show numbers!

  • Remove the 'show string' blocks and replace them with 'change item by ...' blocks.
  • Rename the variable 'Num'
  • Let's do some calculations!
    • Minus 5 from the variable, 'Num,' each time the rotary encoder is rotated left
    • Add 5 to the variable, 'Num' each time the rotary encoder is rotated right
  • Grab a 'forever' block in the Basic tab, and place a 'show number' block in it.
  • Change its value to show the variable, 'Num'.

Step 10  Upload the code

  1. Connect the micro:bit to your computer using a microUSB cable

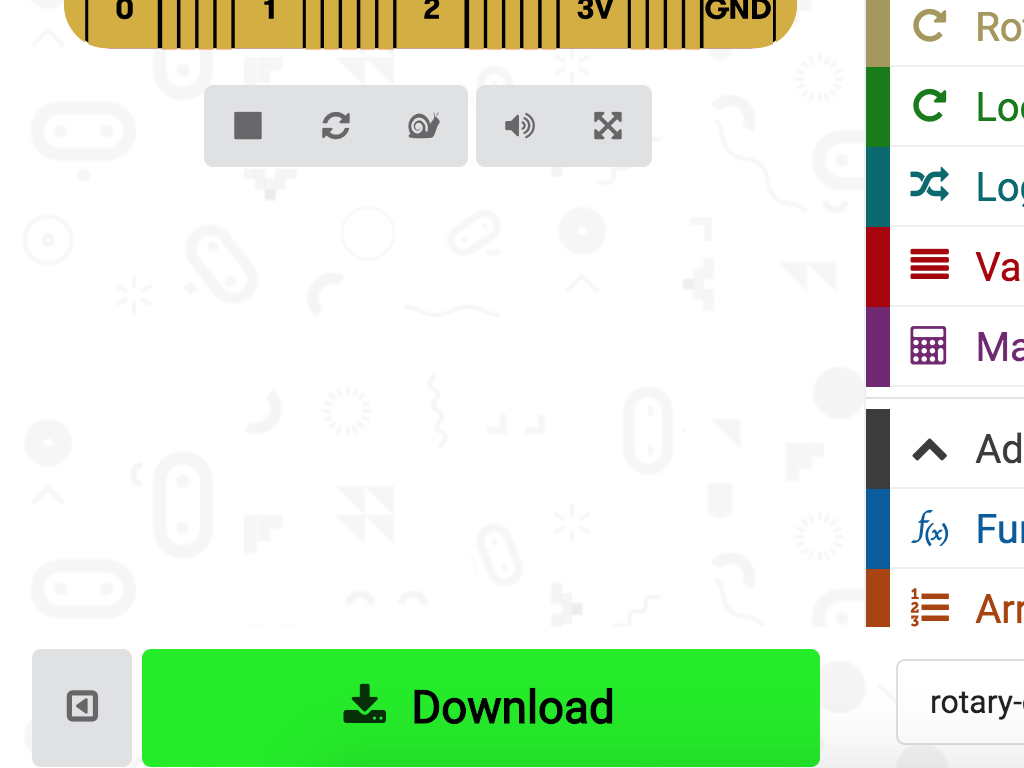

  2. Click on the 'Download' button in MakeCode editor

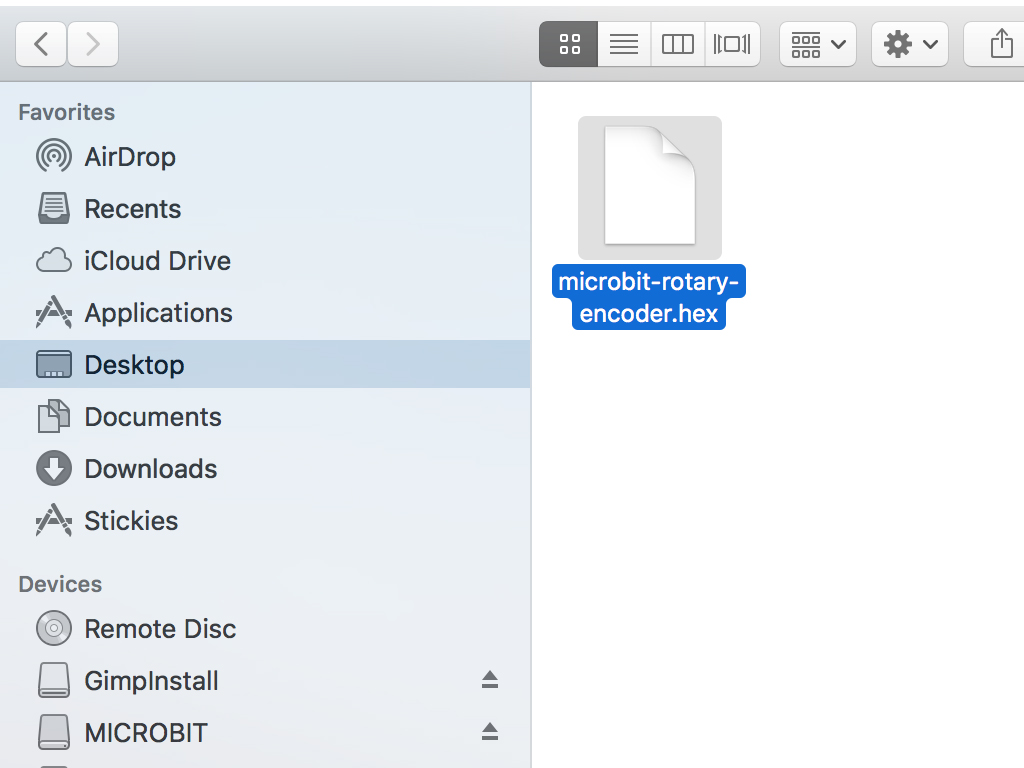

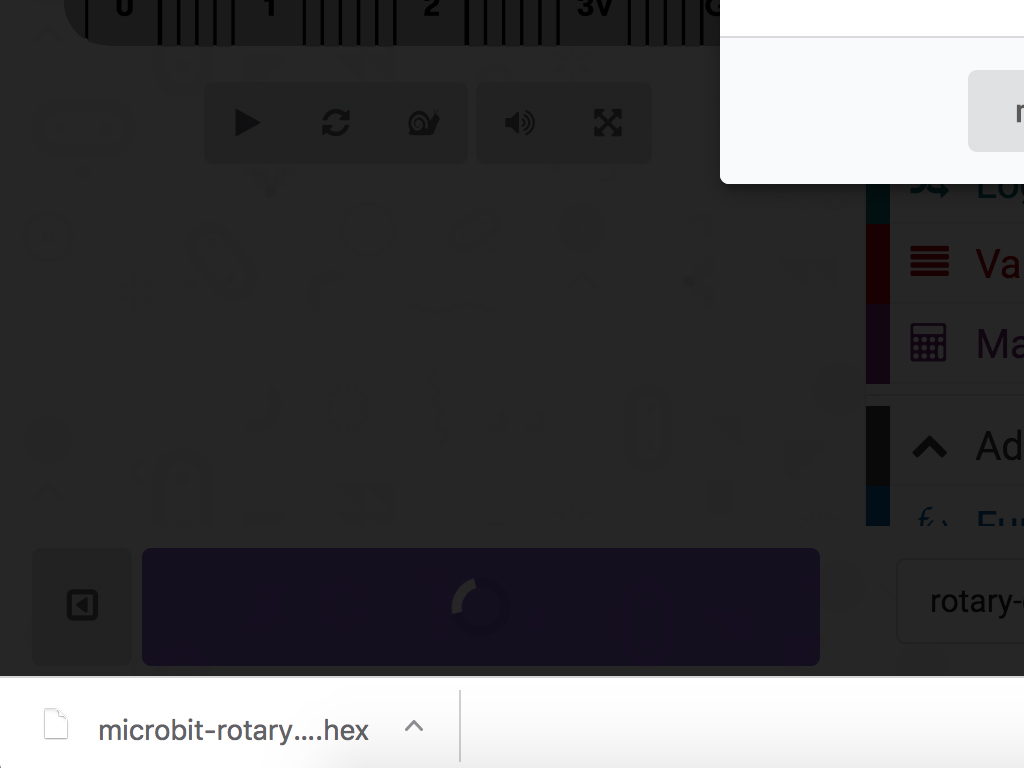

  3. Open up Finder on the Mac OSX or if you are using Windows, open up Windows explorer. Find the downloaded hex file in your Downloads folder.
  4. Drag and drop this hex file to the MICRO:BIT drive
  5. The micro:bit will flash as the code is being uploaded.

Now, if you turn the rotary encoder knob, the number will change and display on the micro:bit's LED matrix!
