Smoke sensor with micro:bit

Difficulty
Easy
Steps
12

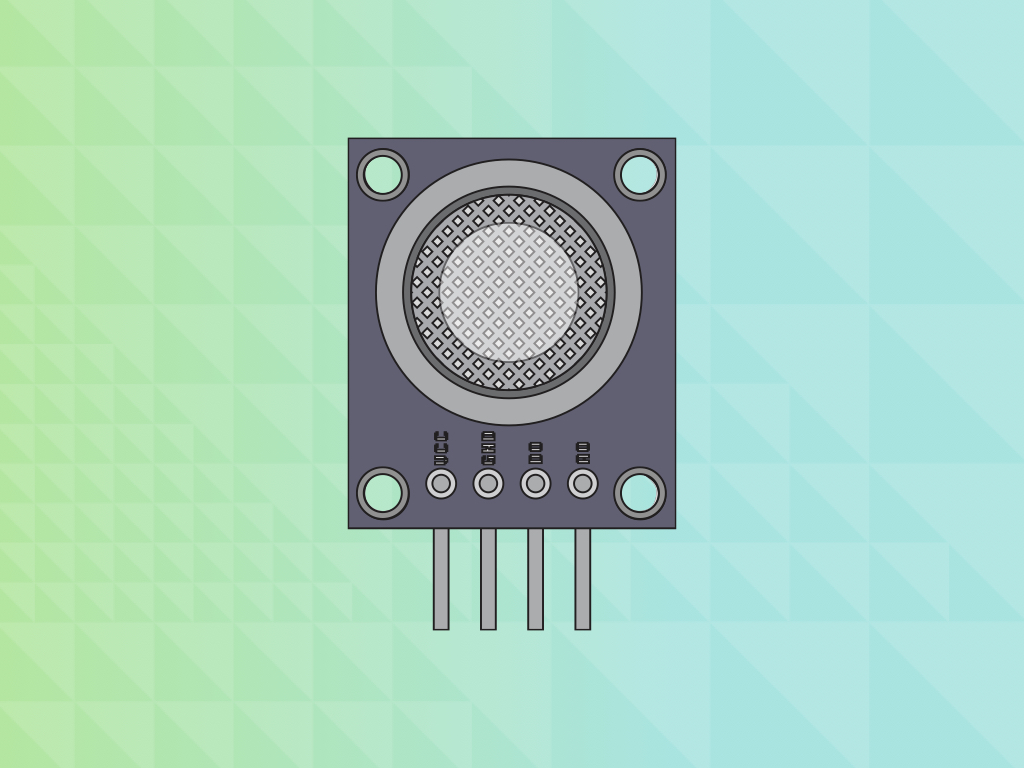

This is the MQ-2 smoke sensor module. It is sensitive to flammable gases such as LPG, propane, and methane.

In this guide, we will learn to connect it to the micro:bit and program it to sound an alarm, if it goes above the threshold level. When it is below the threshold level, a heart icon will be displayed instead.

Complete this guide to understand the basics on how to connect and program a smoke sensor with the micro:bit.

Parts Used in This Guide

Buy

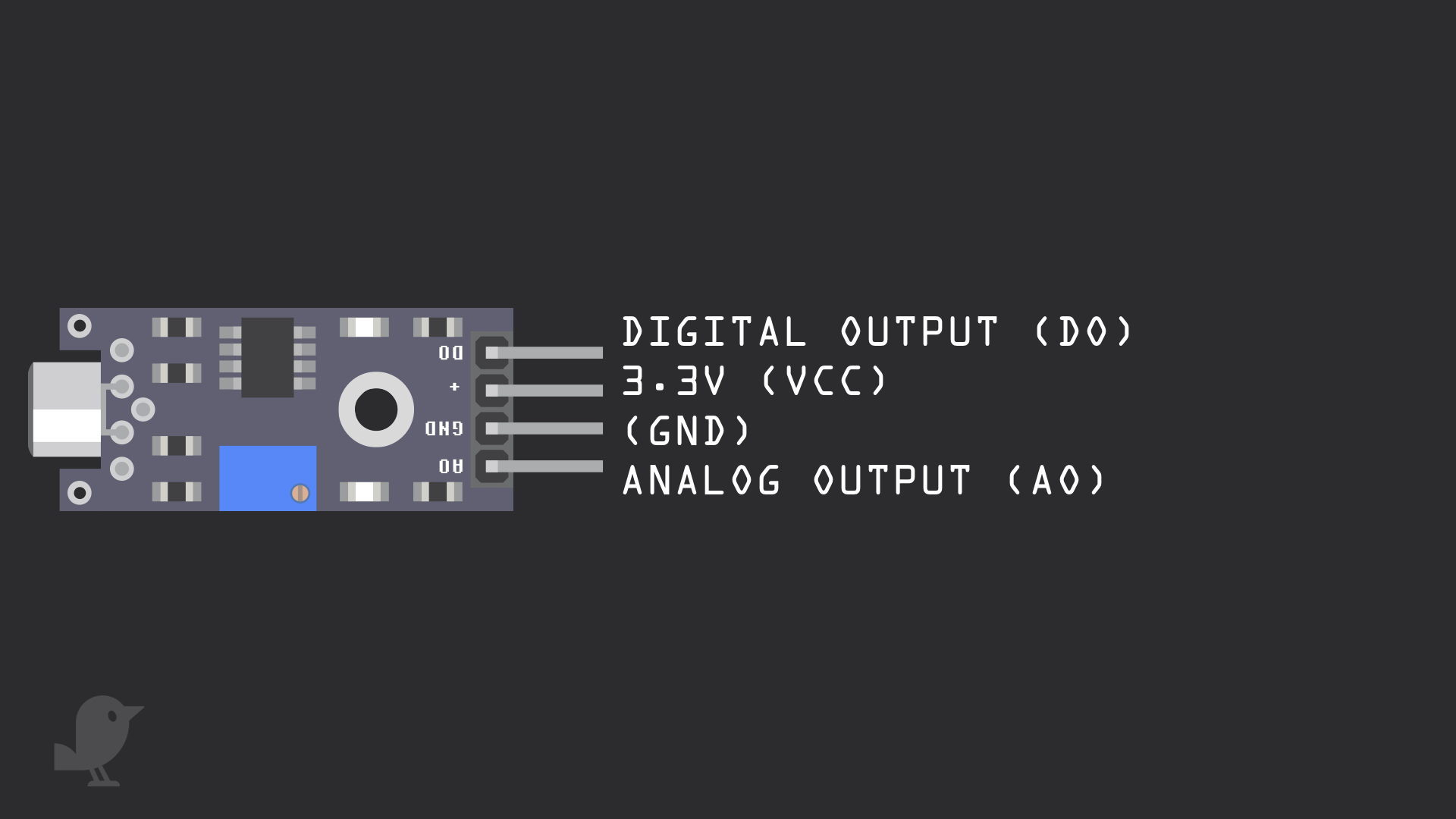

Step 1  The Module

Let's take a look at the smoke sensor module!

It has four pins:

  • AO: Analog Output
  • DO: Digital Output
  • GND: In electronics, we define a point in a circuit to be a kind of zero volts or 0V reference point, on which to base all other voltage measurements. This point is called  ground or GND.
    • Note: Voltage is the difference in potential between two points. As it is difficult to talk about voltage without a reference point, we need another point to compare it to.
  • 3.3V  : While 'VCC' stands for Voltage Common Collector, we'll connect the VCC pin to 3.3V on the micro:bit

Step 2  Connect module to breadboard

Step 3  Connect + to VCC

Step 4  Connect GND to GND

Step 5  Connect P5 to DO

Step 6  Connect P1 to AO

Step 7  Connect + to VCC (Buzzer module)

Step 8  Connect P0 to I/O

Step 9  Connect GND to GND

Step 10  Connect + to 3.3V

Step 11  The MakeCode!

  • We will get started with programming it using the MakeCode editor.
  • We want to set it up so that:
    • A heart icon is displayed on the micro:bit's 5X5 LED matrix when all is well.
    • A sad smiley face icon is displayed as well as an alarm indicates that harmful gases are detected.
  • First, create a variable and call it 'sensorVal'.
  • As the analog pin of the smoke sensor is connected to Pin 1 of the micro:bit, the 'analog read pin' block's value is set to P1.
  • Create another variable, and call it 'threshold', set its value to 800.
  • Get an 'if... then ... else ... ' block, and place this after 'set threshold to 800'
  • Create a condition. If 'sensorVal' is above threshold:
    • Play a High C tone for 1 beat and show a sad face icon.
    • Else, show a heart icon.
  • Note: Although a threshold level has been set, this does not mean the device has been calibrated! Calibration is a safety procedure that ensures the detectors are measuring the correct level of flammable gas. But playing around with flammable gases is not something you should try at home, so we will not cover calibration today.

Step 12  Upload the code

  1. Connect the micro:bit to the computer using a microUSB cable
  2. Download the code by clicking on the 'Download' button in MakeCode editor
  3. Find the downloaded hex file in your Downloads folder
  4. Drag and drop it into the MICRO:BIT drive
  5. The micro:bit will flash as the code is being uploaded
