Building the Pong Game Hardware

Difficulty
Moderate
Steps
16

Pong is one of the earliest arcade games, released in 1972.

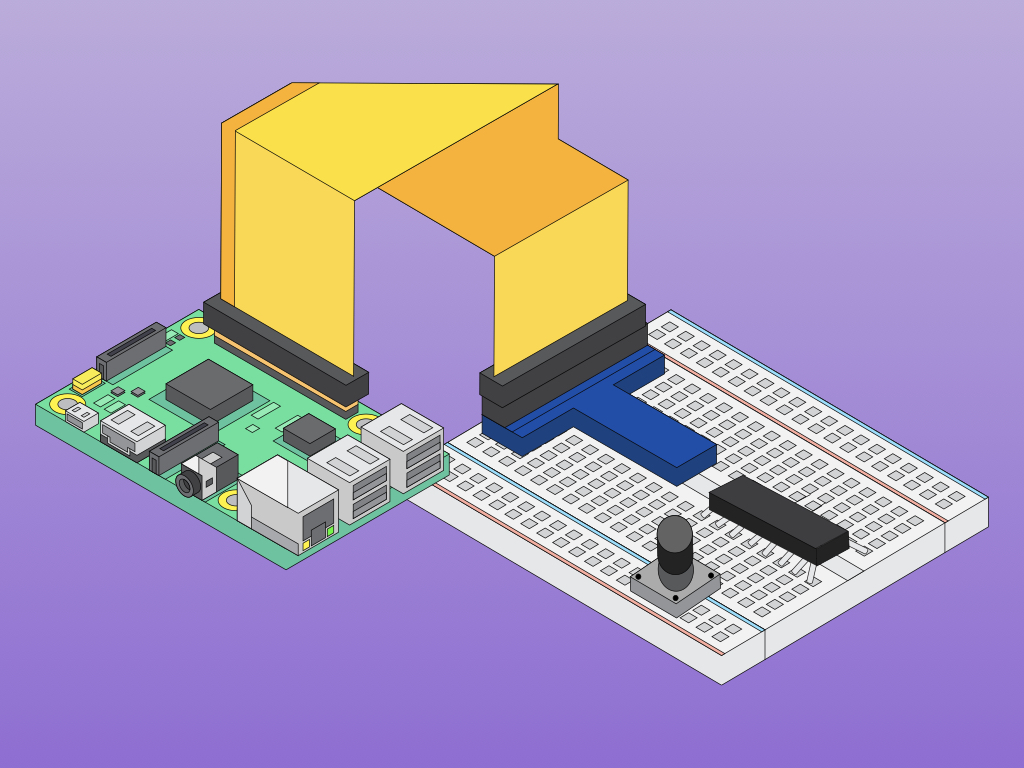

In this guide, you will build a hardware controller using a Raspberry Pi to play the old-school classic, Pong.

Complete this guide to get started. Make customisations to your build!

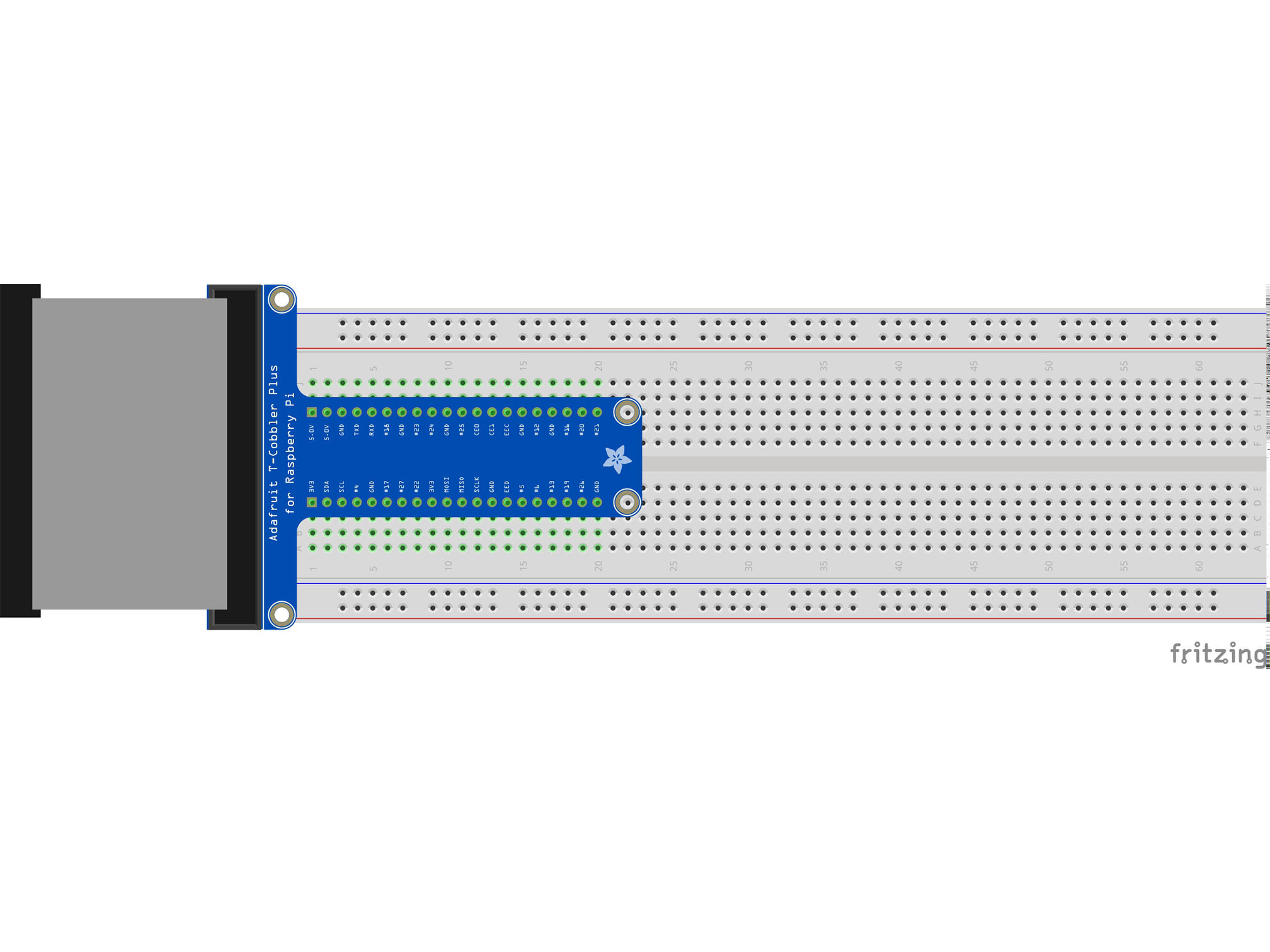

Step 1  Fitting the cobbler

  • This is the Pi T-Cobbler. It breaks out the GPIO pins from the Pi allowing us to connect cool stuff
  • Firmly press the cobbler into the breadboard making sure the first 5.0v pin is in H1

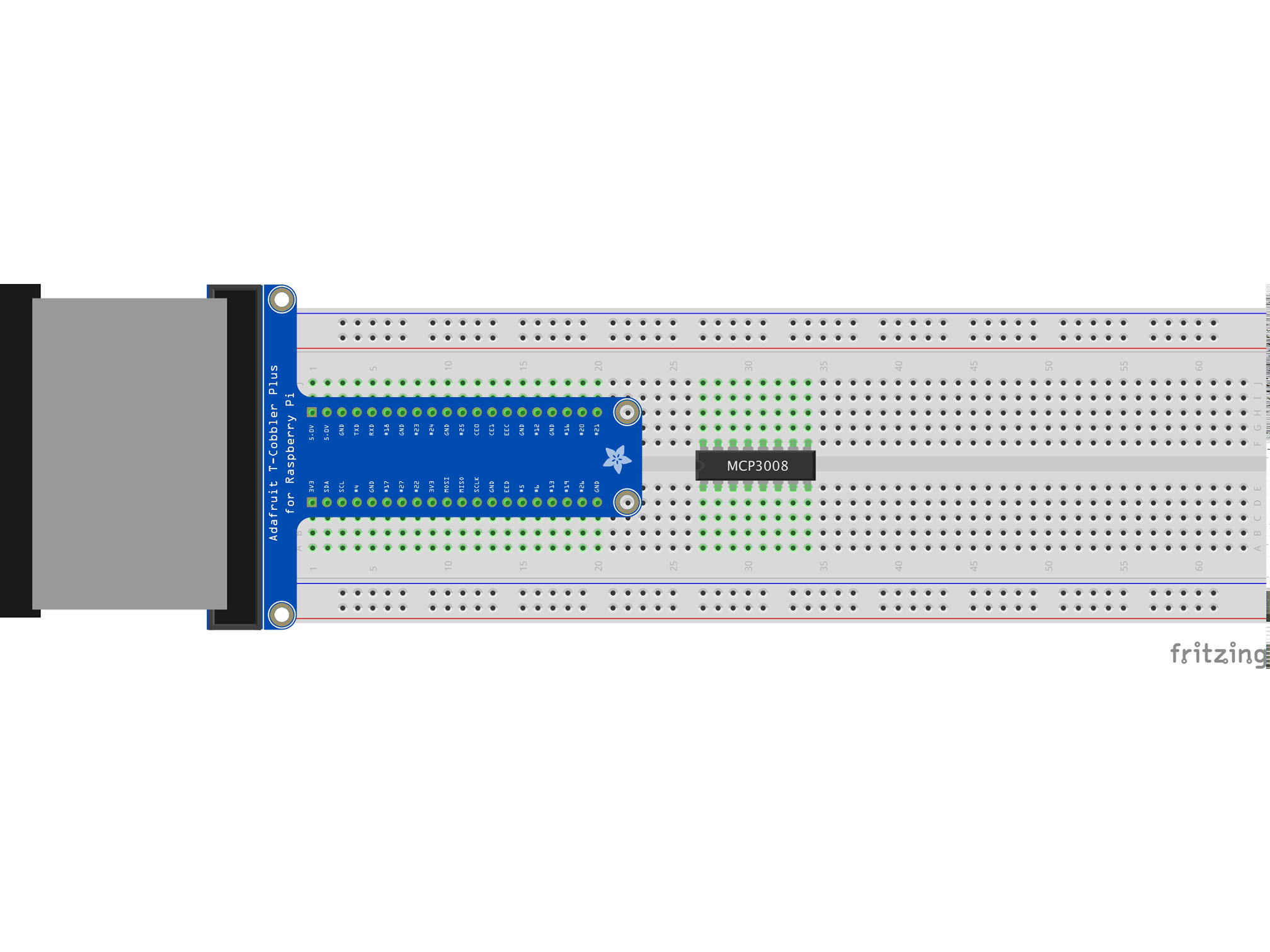

Step 2  Fitting the ADC

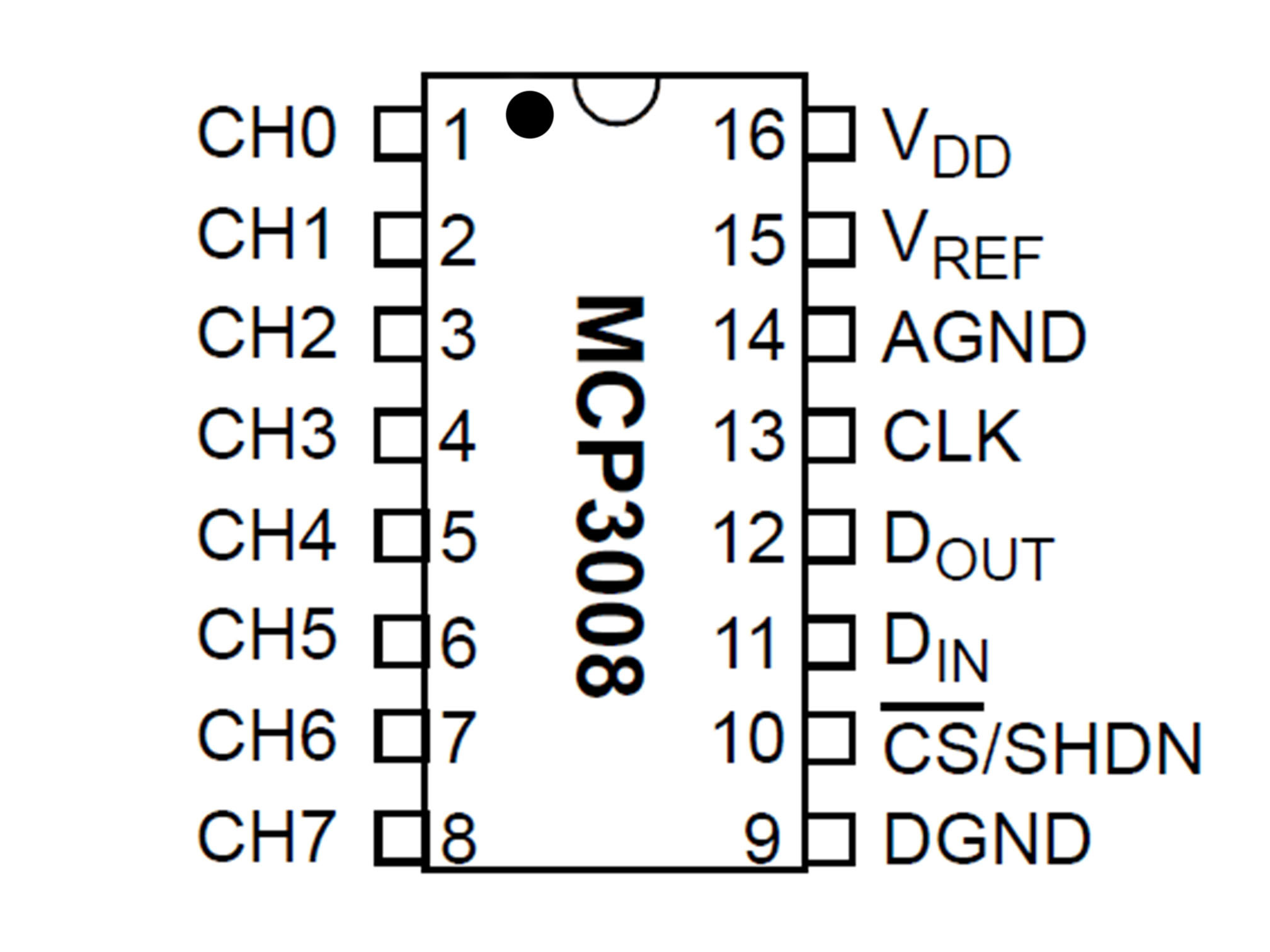

  • This IC (integrated circuit) is an analog to digital converter allowing us to read analog inputs into our Pi
  • Line up pin 1 (marked by a small indent on the plastic) with E27
  • Press firmly into the breadboard

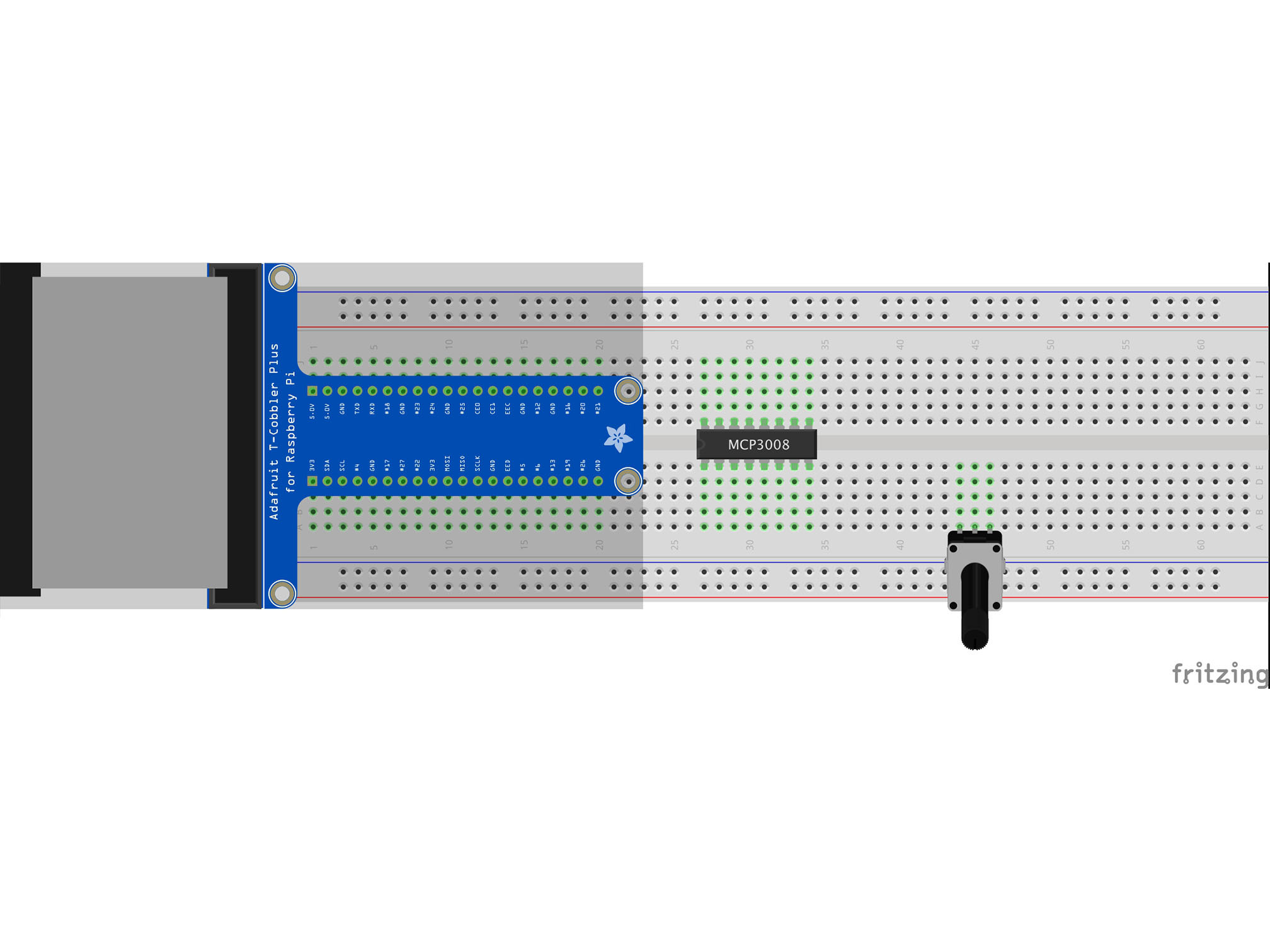

Step 3  Fitting the knob

  • This is a potentiometer. It will be our analog input.
  • Press it into the breadboard as shown with the first pin in A44

Step 4  Wiring chip select

  • Connect J12 to J33 using a yellow jumper wire

  • This is our chip select line

  • It tells the IC when it can send data

  • MCP3008 CS/SHDN to Raspberry Pi CE0

Step 5  Wiring Analog Input

  • Connect C45 to C27 using a green jumper wire
  • This is our analog input

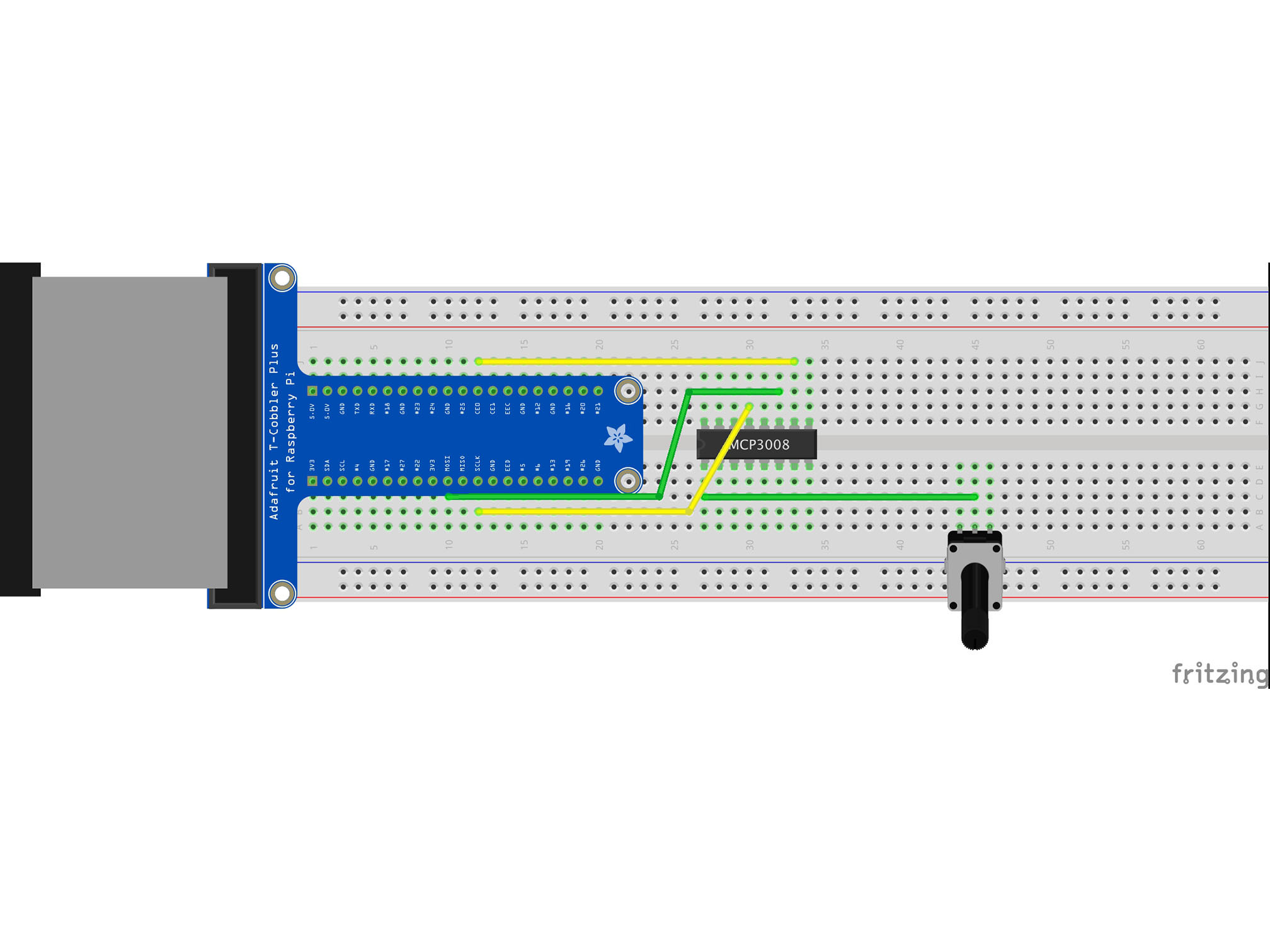

Step 6  Wiring data clock

  • Connect J30 to B12 using a yellow jumper wire
  • This is our data clock, it allows the Pi to synchronize data transfer with the IC
  • MCP3008 CLK to Raspberry Pi SCLK

Step 7  Wiring MOSI

  • Connect C10 to H30 using a green jumper wire
  • This is our MOSI (Master Output Slave Input)
  • It allows the Pi to talk to the IC
  • MCP3008 DIN to Raspberry Pi MOSI

Step 8  Wiring MISO

  • Connect G31 to A11 using a blue jumper wire
  • This is out MISO (Master Input Slave Output)
  • It allows our IC to talk to the Pi
  • MCP3008 DOUT to Raspberry Pi MISO

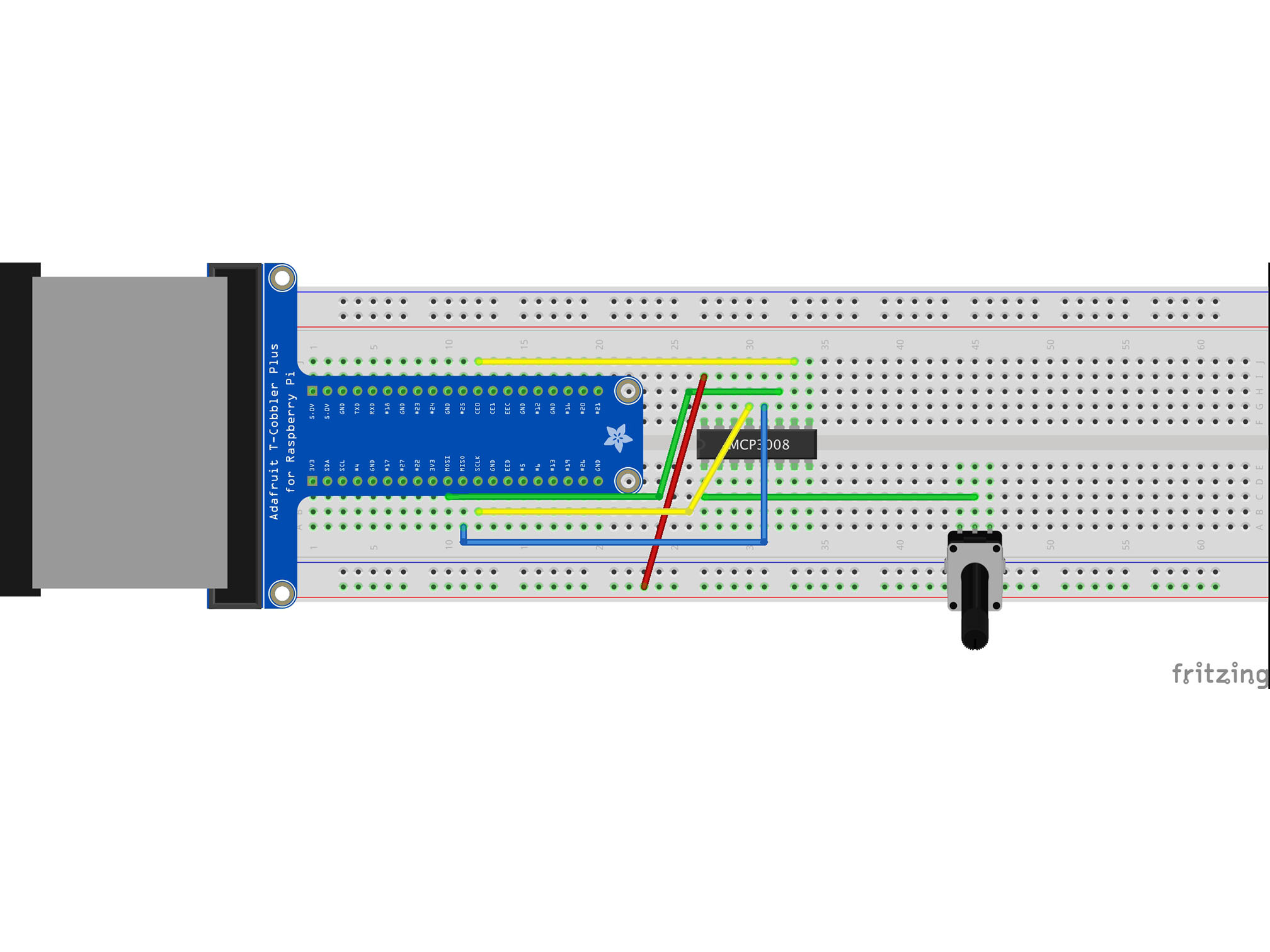

Step 9  Wiring VDD

  • Connect the RED power rail to I27 with a red jumper cable
  • This is providing power connection to our IC
  • MCP3008 VDD to Raspberry Pi 3.3V

Step 10  Wiring Vref

  • Connect the RED power rail to I28 using a red jumper cable
  • This is our Vref
  • It provides a reference voltage to measure our analog input against MCP3008 VREF to Raspberry Pi 3.3V

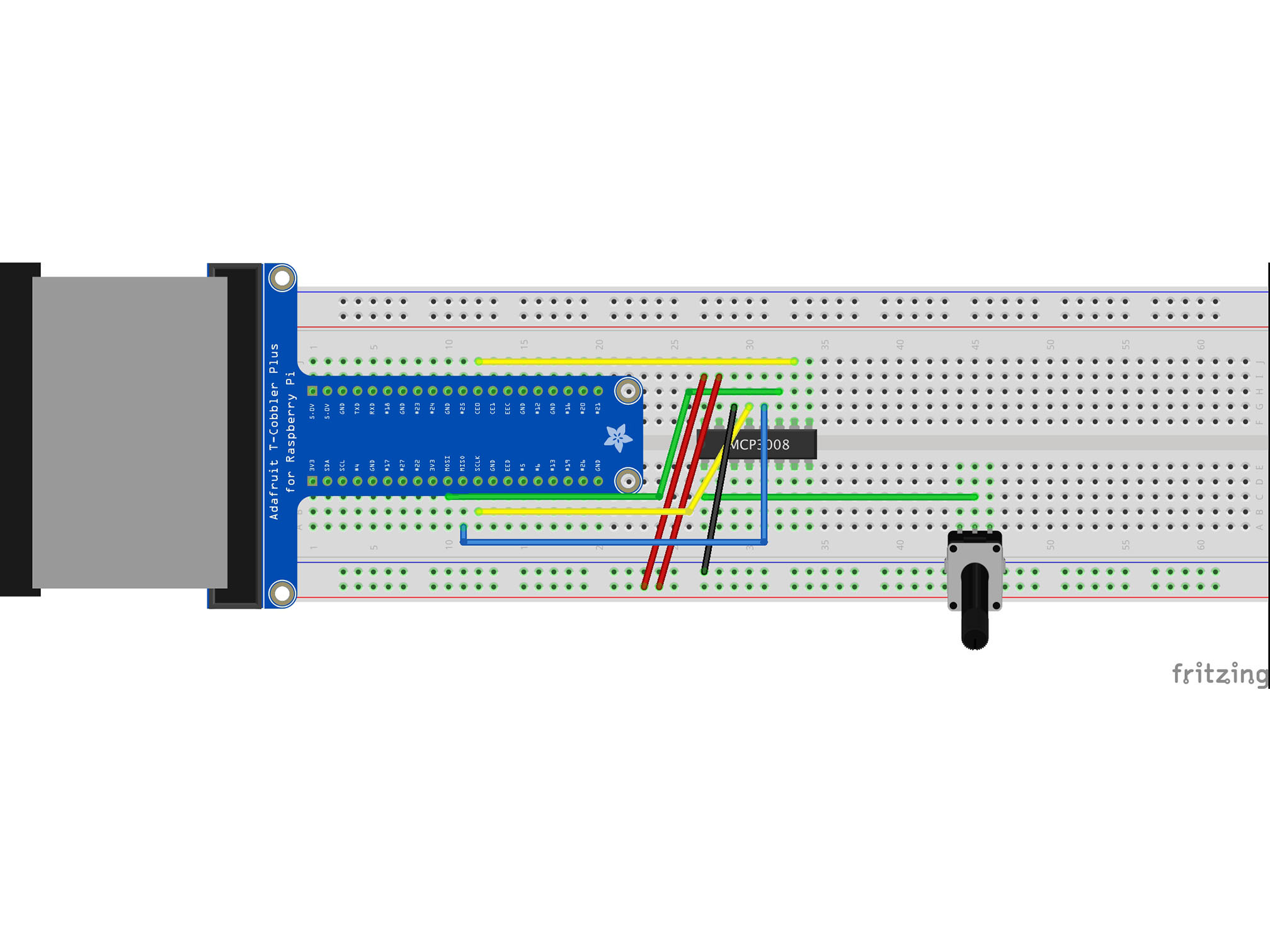

Step 11  Wiring AGND

  • Connect the BLUE power rail to G29 using a black jumper cable
  • This is our analog signal negative (ground or GND) connection to the IC
  • MCP3008 AGND to Raspberry Pi GND

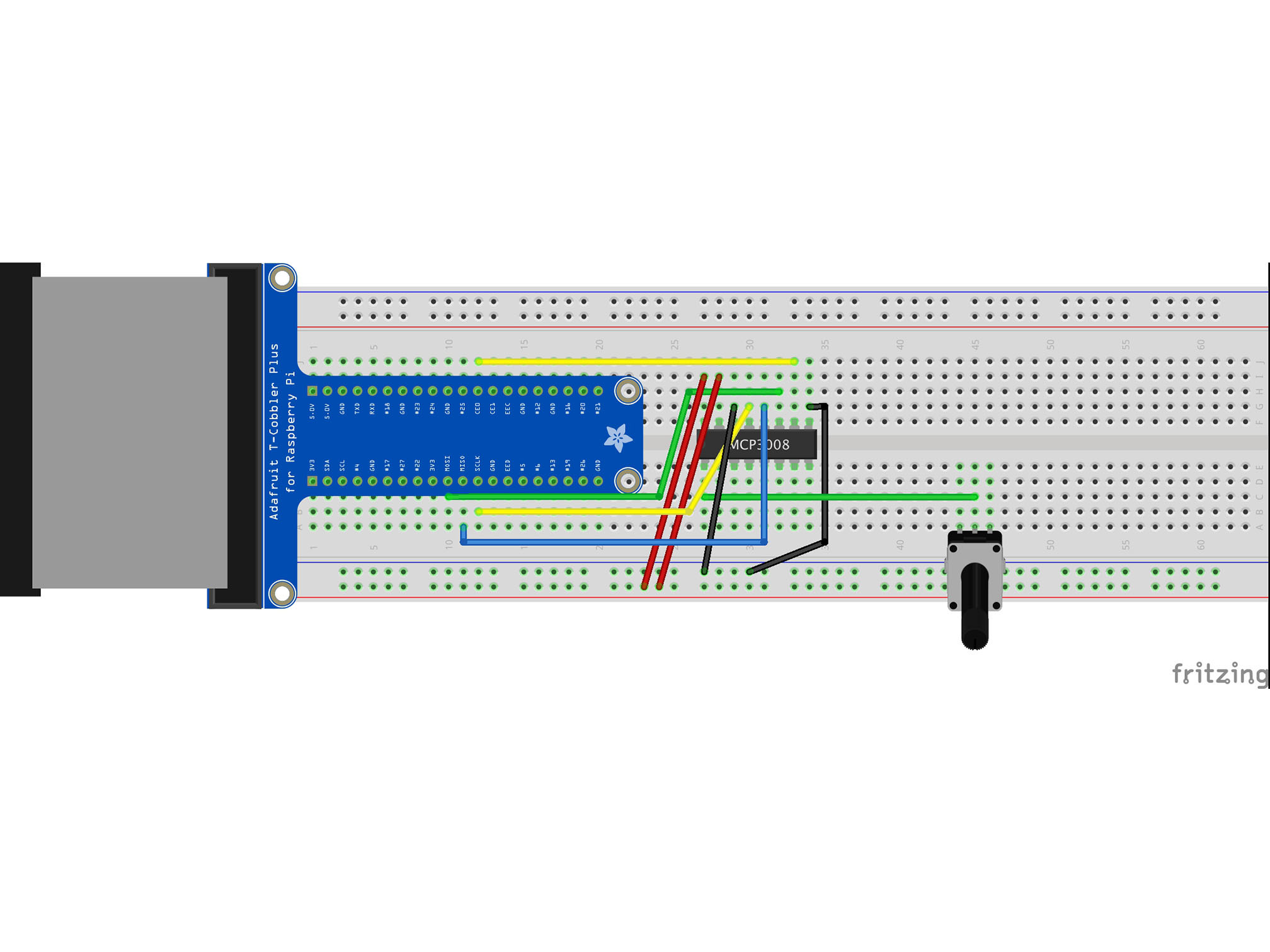

Step 12  Wiring IC GND

  • Connect G34 to the BLUE power rail with a black jumper cable
  • This is our negative (ground or GND) connection to the IC
  • MCP3008 DGND to Raspberry Pi GND

Step 13  Wiring negative to the knob

  • Connect the BLUE power rail to B46 with a black jumper cable
  • This is our negative (GND) connection the the potentiometer

Step 14  Wiring positive to the knob

  • Connect the RED power rail to B44 with a red jumper cable
  • This is our positive connection the the Potentiometer

Step 15  Wiring GND to the Pi

  • Connect the BLUE power rail to A20 with a black jumper cable
  • This allows the raspberry Pi to share a ground (negative, GND) connection with the rest of our circuit

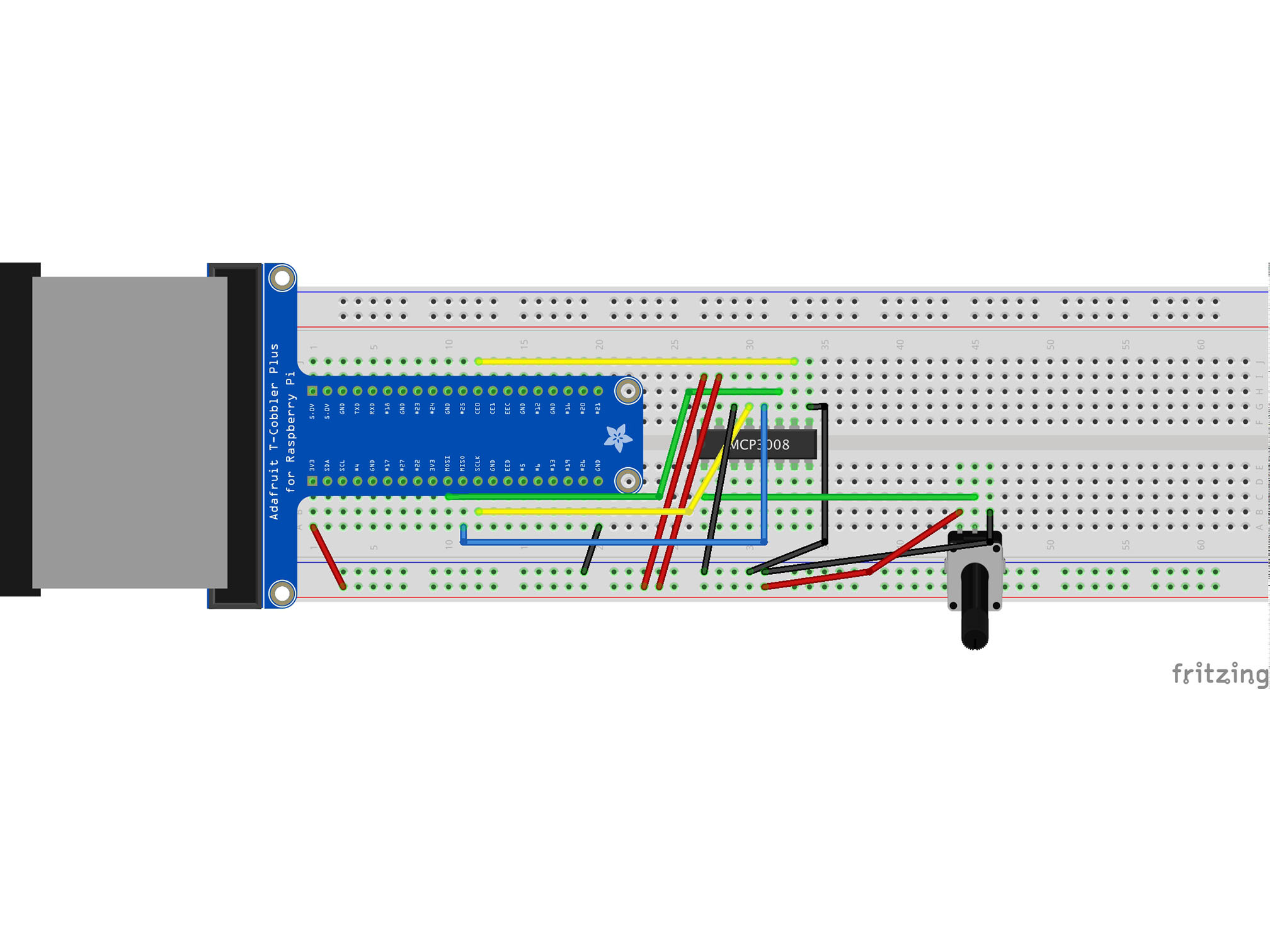

Step 16  Wiring 3V3

  • Connect the RED power rail to A1
  • This provides power to our circuit from the Pi
