Use the Sense HAT Emulator in Raspbian
The Sense HAT is a very useful piece of Raspberry Pi hardware. It adds a variety of sensors such as a gyroscope, accelerometer, magnetometer, temperature sensor, barometric pressure sensor, and humidity sensor. If you've ever wanted to try your hands on coding with one, you don't actually need the Sense HAT itself!
In this guide, you will learn how to program the Sense HAT and run it in the Sense HAT emulator on Raspbian. We will use a Raspberry Pi 3 Model B+, although it will work for the other Raspberry Pi boards too.
After doing so, you may wish to get an actual physical Sense HAT and you will be able to program it with ease!
|Parts Used in This Guide|

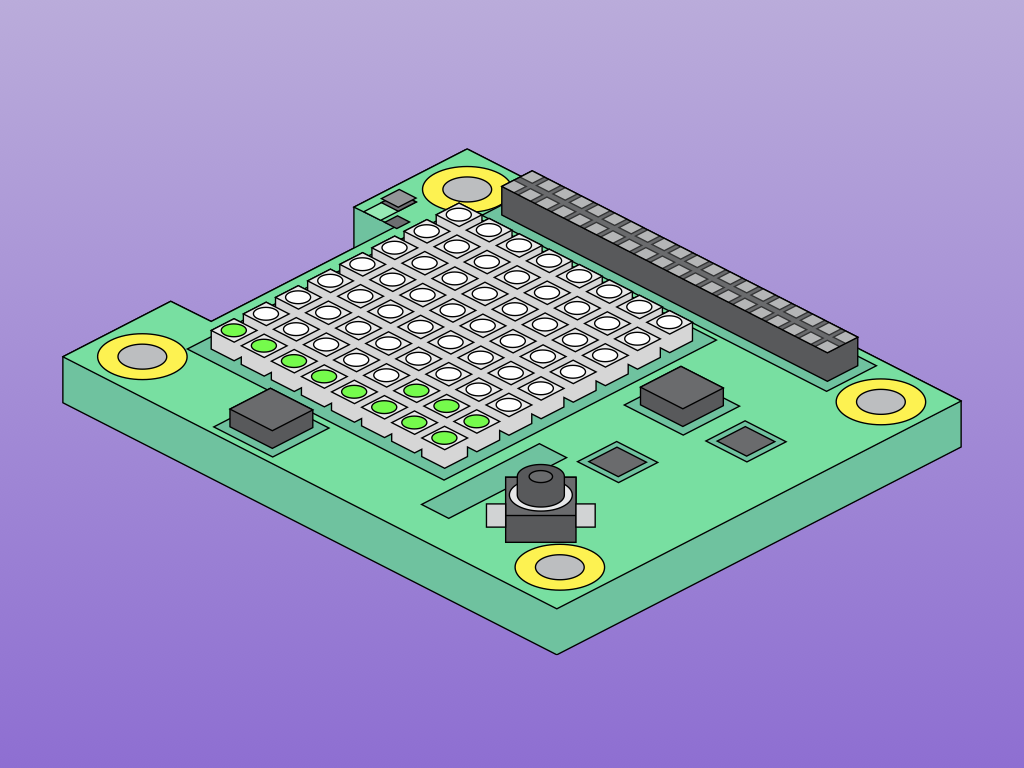

What is the Sense HAT?
Believe it or not, the Sense HAT was first developed to be used by astronauts in the International Space Station.
That's right, and it was also then made available to be purchased. School children around the world have used it to develop code, and some of that code was then run in space as part of a series of competitions.
With the Sense HAT emulator, you don't need the actual Sense HAT hardware and can develop a program for the Astro Pi mission, too!
Step 1 Start Raspbian
Step 2 Start the Sense HAT emulator
Connect your Raspberry Pi to a keyboard, mouse and monitor display. Insert the NOOBS microSD card into the SD card slot and then power up the board with the official power supply for the Raspberry Pi 3 Model B+. Raspbian will boot up.

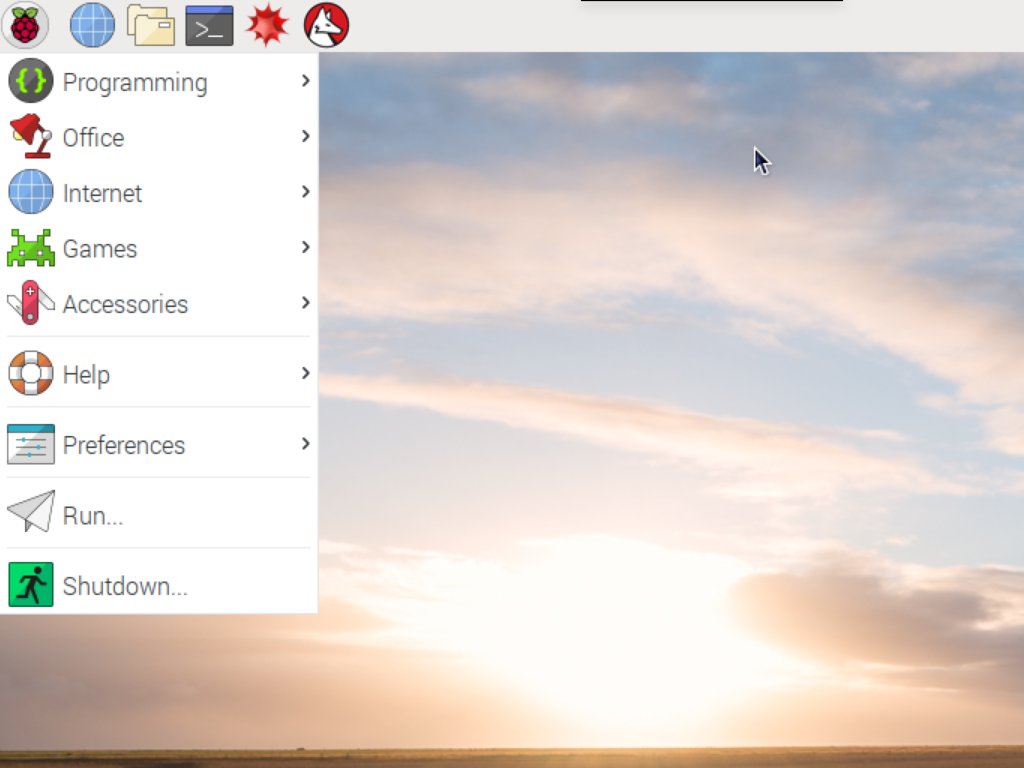

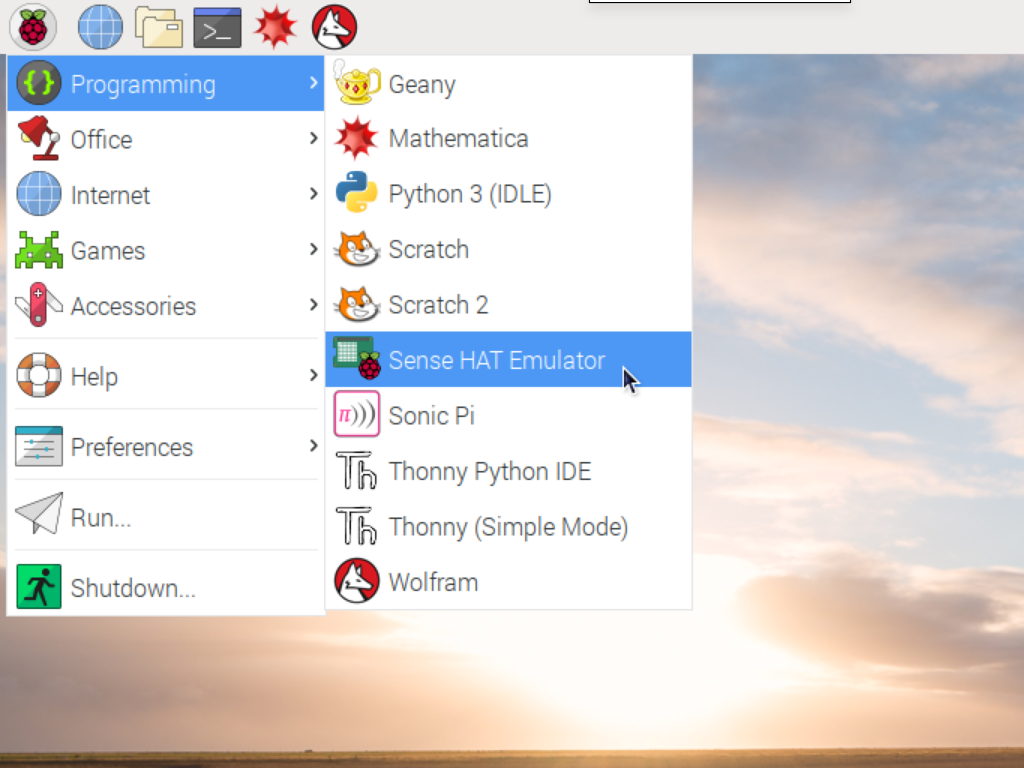

Firstly, we will open up the Sense HAT emulator. It can be found from the desktop menu.

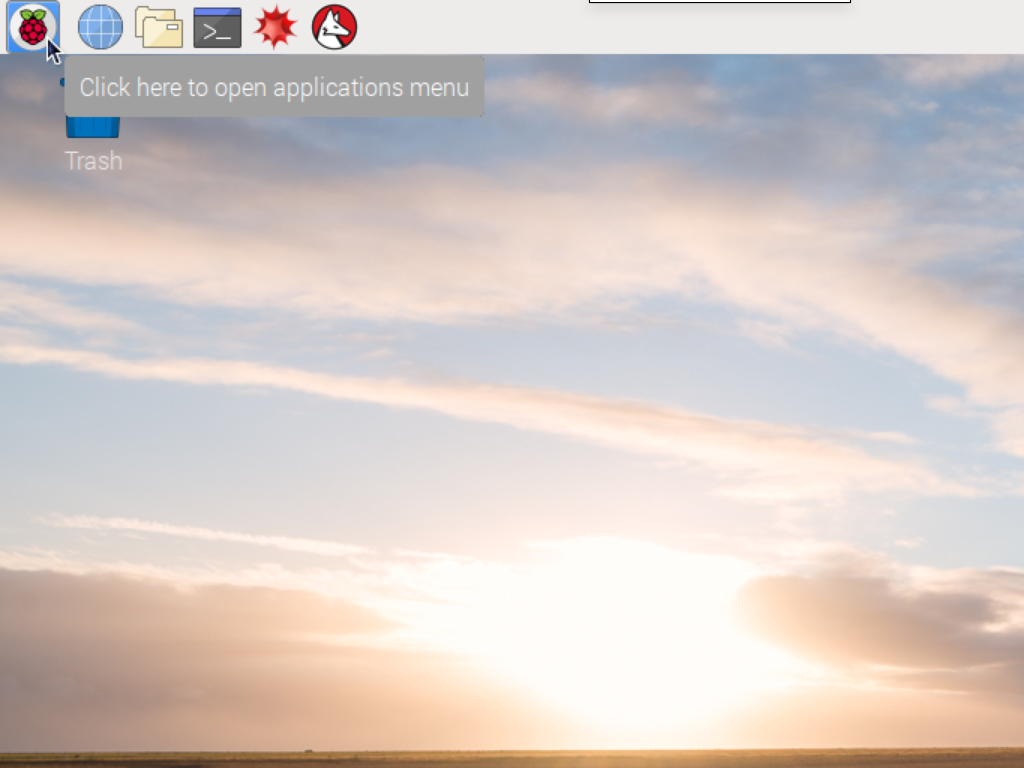

- Click on the Raspberry Pi icon on the top left hand corner of the desktop
- Hover your mouse over programming
- Select Sense HAT emulator
Step 3 Use the Sense HAT Emulator

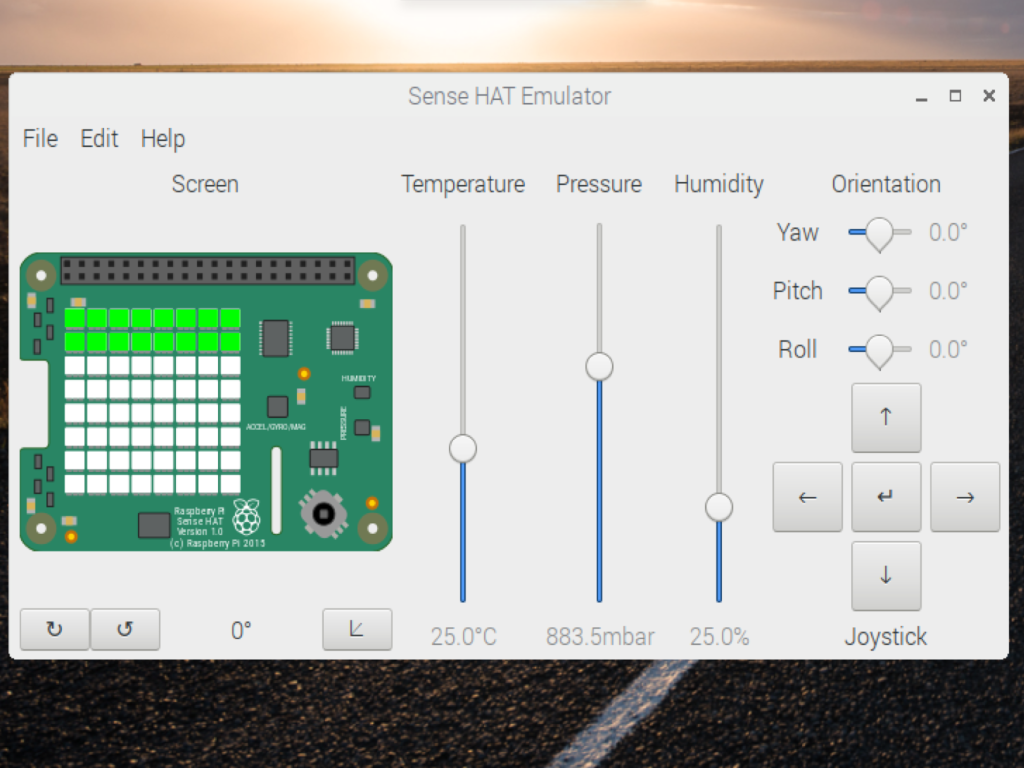

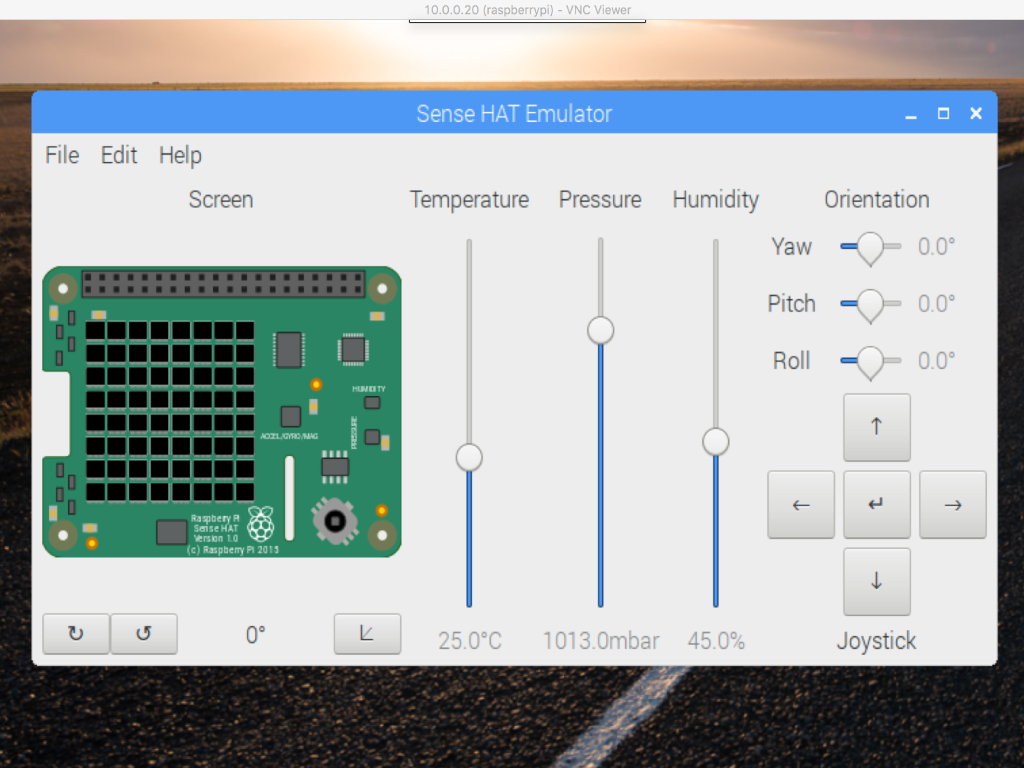

You should now see a range of buttons and sliders. This is a visual representation of the Sense HAT hardware, where you can simulate its features.
With the Sense HAT emulator, you can simulate the experience of connecting the Raspberry Pi to the Sense HAT.

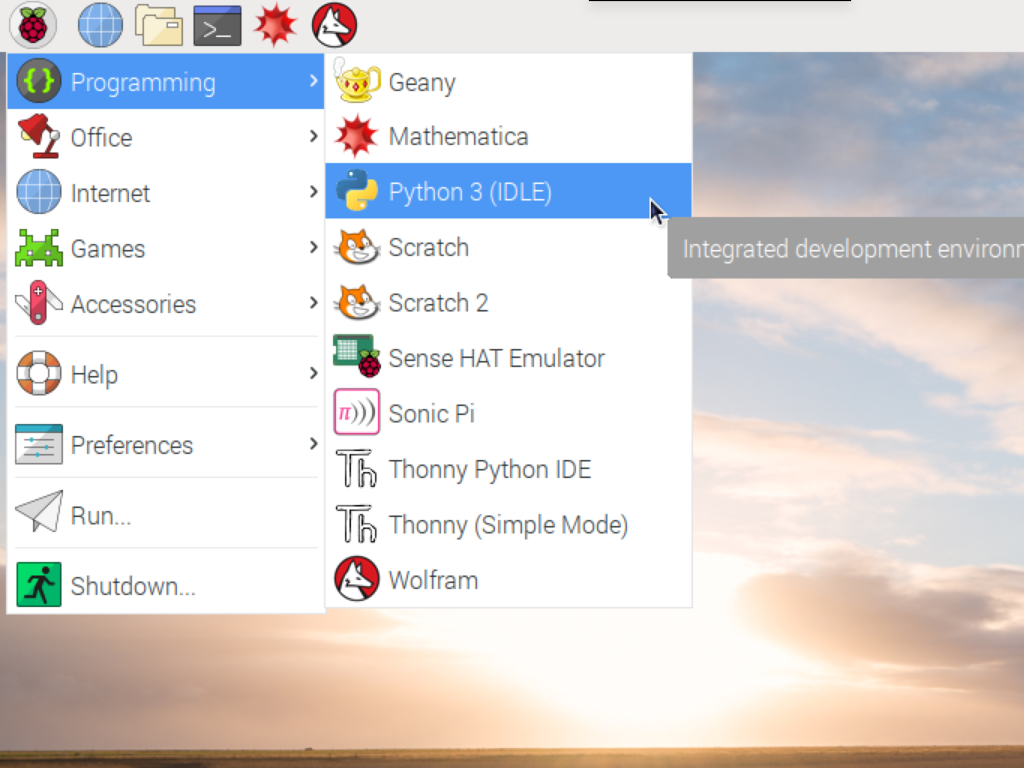

Step 4 Open IDLE
- Click on the Raspberry Pi logo on the top left hand corner of the desktop.
- Navigate to Programming > Python 3 (IDLE)
- Choose File > New
Step 5 Program the Sense HAT emulator
from sense_emu import SenseHat sense = SenseHat() green = (0,255,0) white = (255,255,255) while True: humidity = sense.humidity humidity_value = 64 * humidity / 100 pixels = [green if i < humidity_value else white for i in range(64)] sense.set_pixels(pixels)
Now to program it! The program detects the humidity level and adjusts the number of green and white pixels on the LED accordingly.
Step 6 Run the program

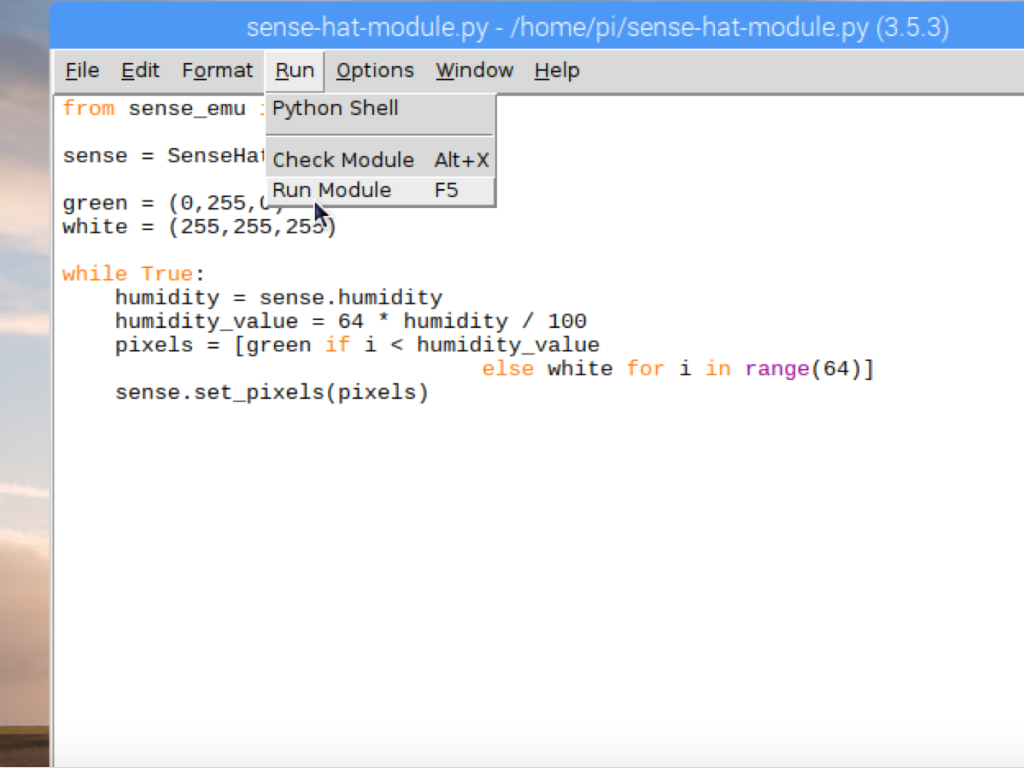

In IDLE, click on Run > Run Module
It will prompt you to save the file, give it a name and save to run.

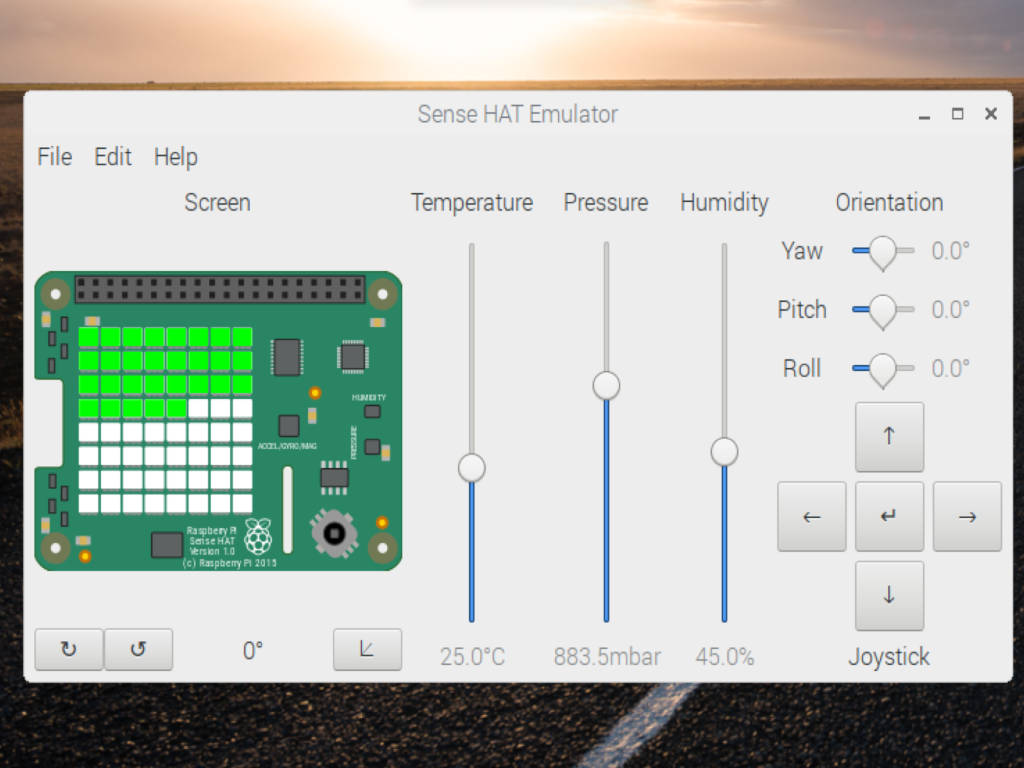

The Sense HAT image will update and display some green LEDs. Try to adjust the humidity slider and watch the changes!

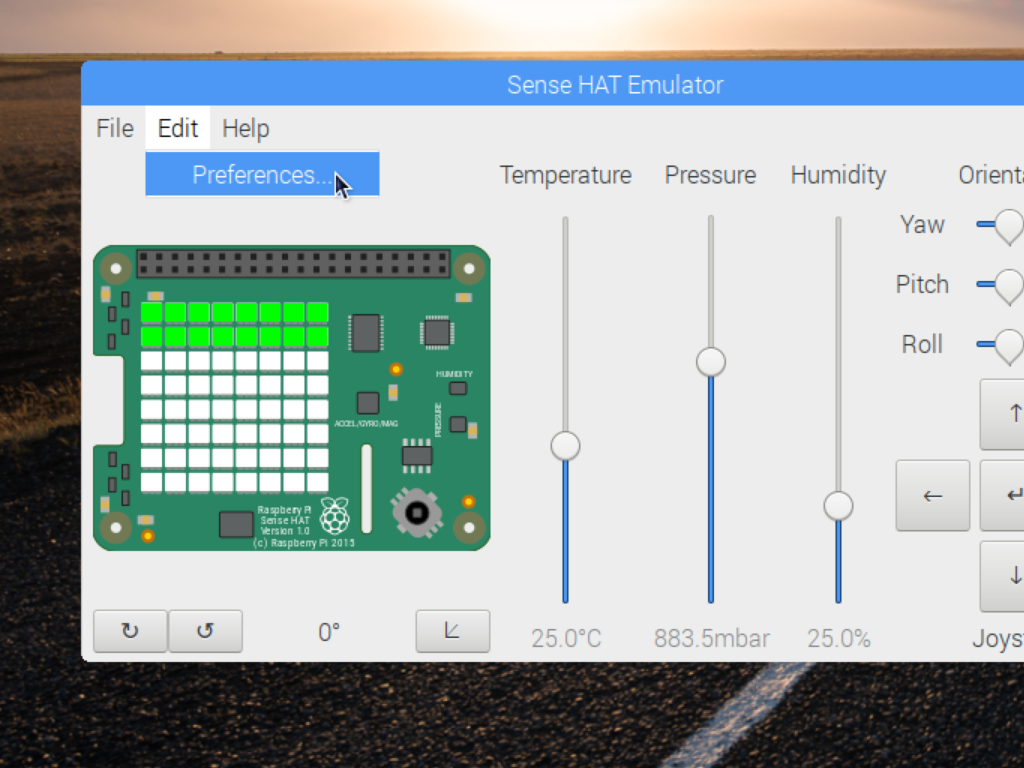

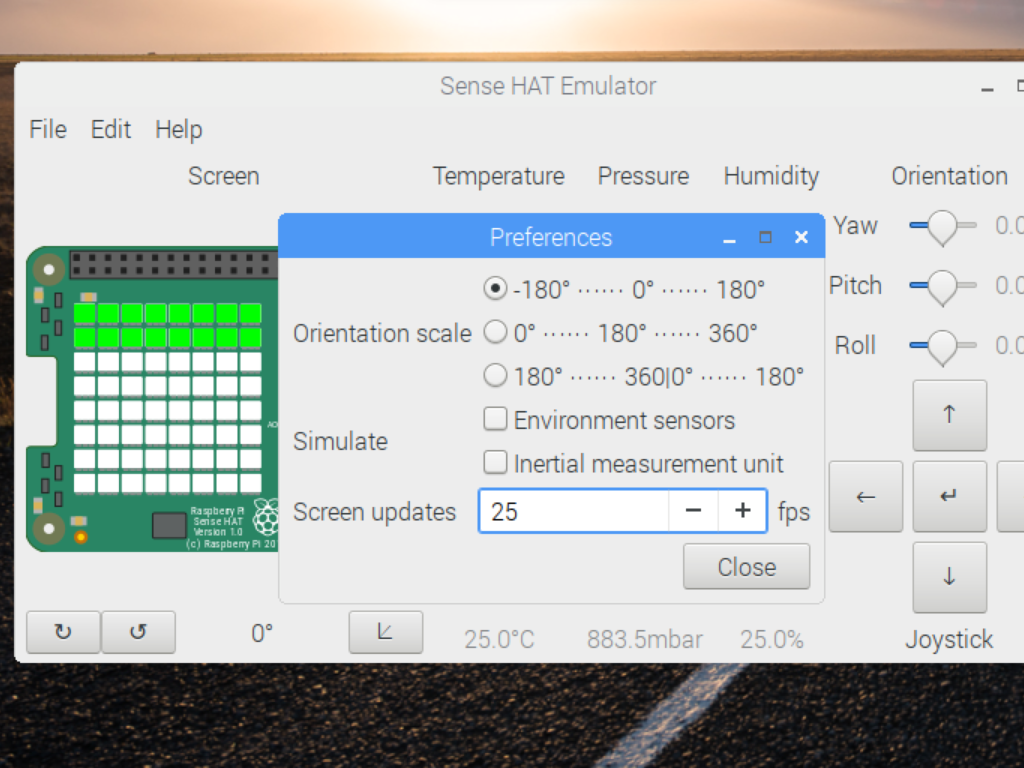

Step 7 Set Preferences
That's not all. You can make adjustments over in the preferences menu. For instance, you can adjust the behaviour of the emulator to represent the behaviour in the actual hardware sensors more accurately.
- Choose Edit > Preferences
- Increase the 'Screen updates' value
The values will now update according to the known error tolerances of the actual physical sensors in the Sense HAT.

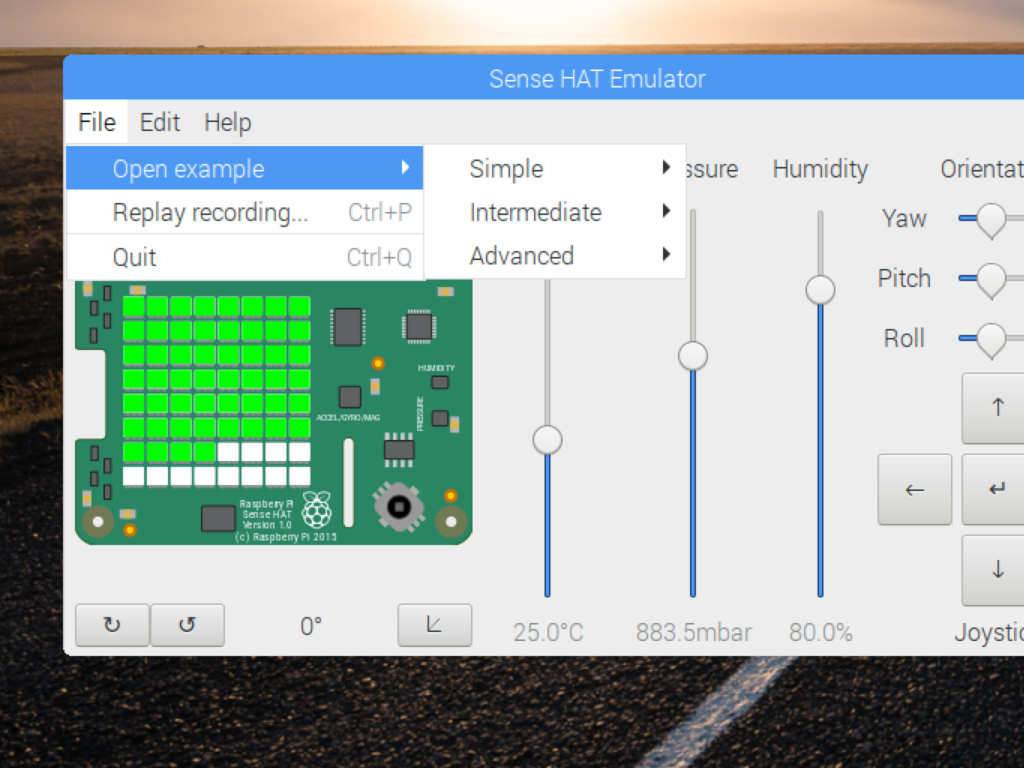

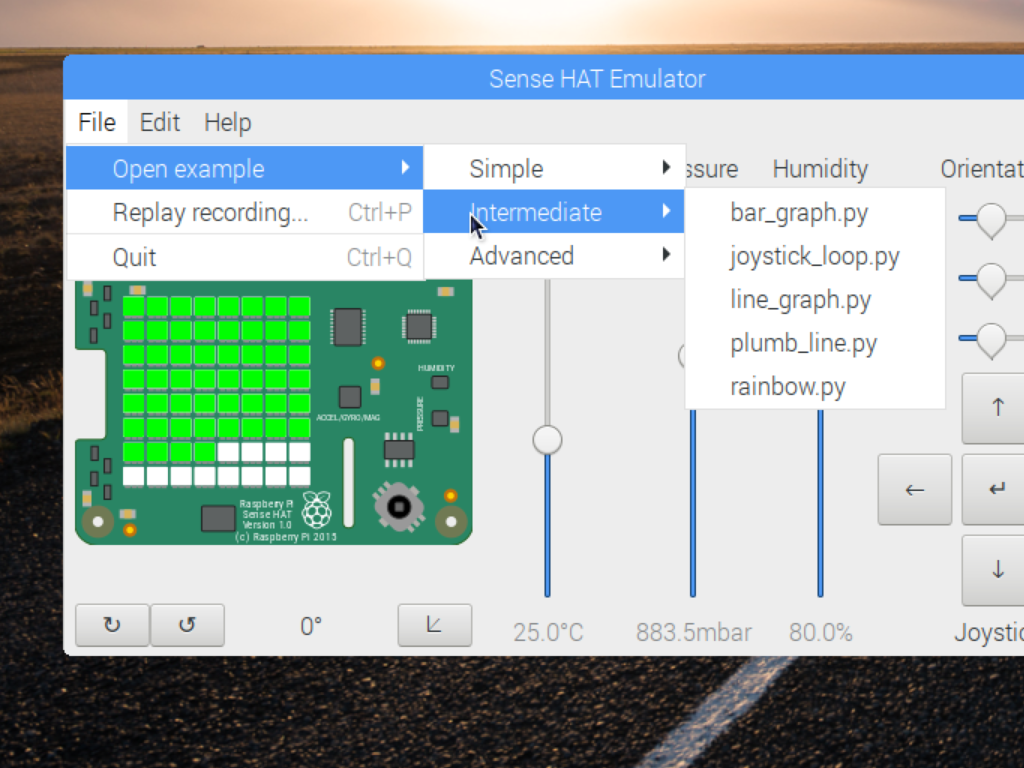

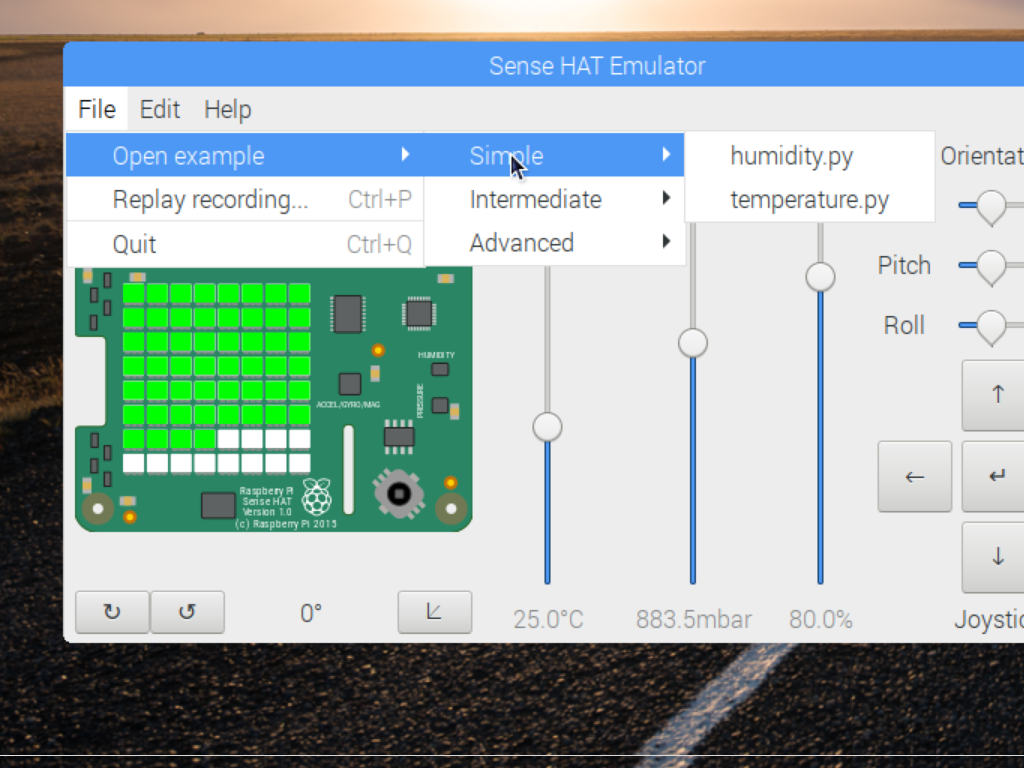

Step 8 Use code examples
If you would like to get more familiar with programming the Sense HAT, there are code examples available for your use!
Step 9 Port your emulator code to Sense HAT
from sense_hat import SenseHat sense = SenseHat() green = (0,255,0) white = (255,255,255) while True: humidity = sense.humidity humidity_value = 64 * humidity / 100 pixels = [green if i < humidity_value else white for i in range(64)] sense.set_pixels(pixels)
It's easy to port your code over to an actual Sense HAT!
If you want to reverse that process and port code from an actual Sense HAT to the emulator, simply change:
