Get Started with Pi Camera V2

Difficulty
Easy
Steps
9

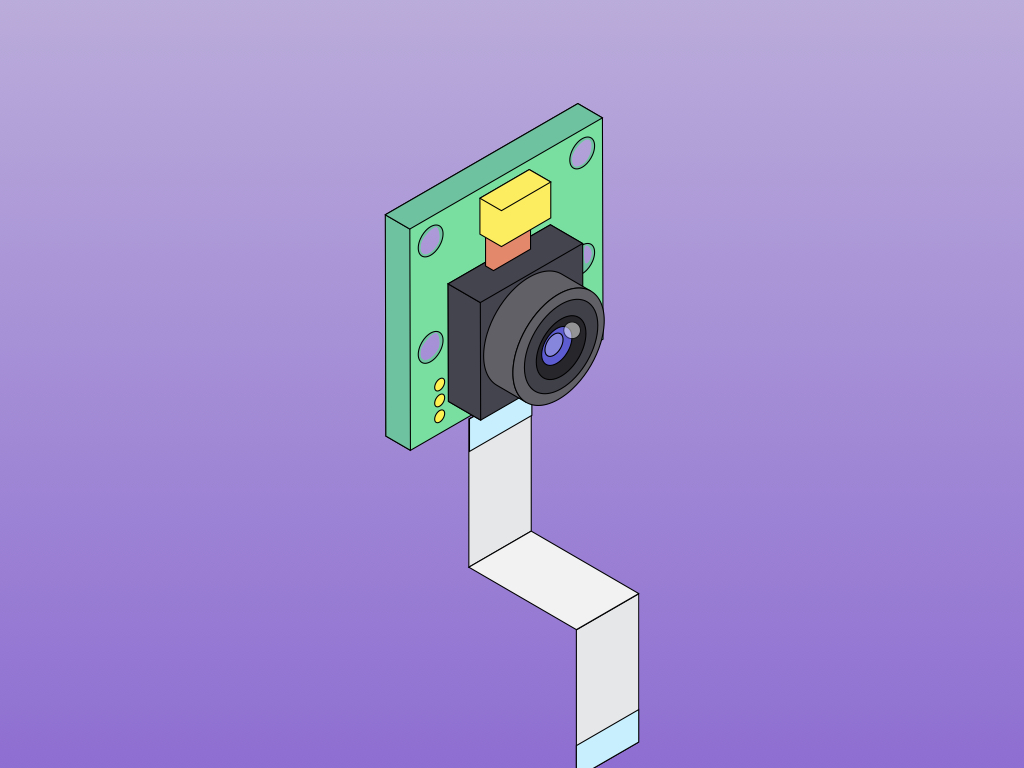

The Raspberry Pi Camera V2 board is a high quality 8 megapixel camera that can take 3280 x 2464 pixel static images as well as capture videos in HD 1080p.

In this guide, you will learn to set up and get started with the Raspberry Pi Camera V2 using Python and picamera.

After this, you will be able to work on more advanced projects such as a time-lapse camera, a home security system, motion detection, time lapse photography, slow-motion video and much more!

Step 1  Connect the Camera Module

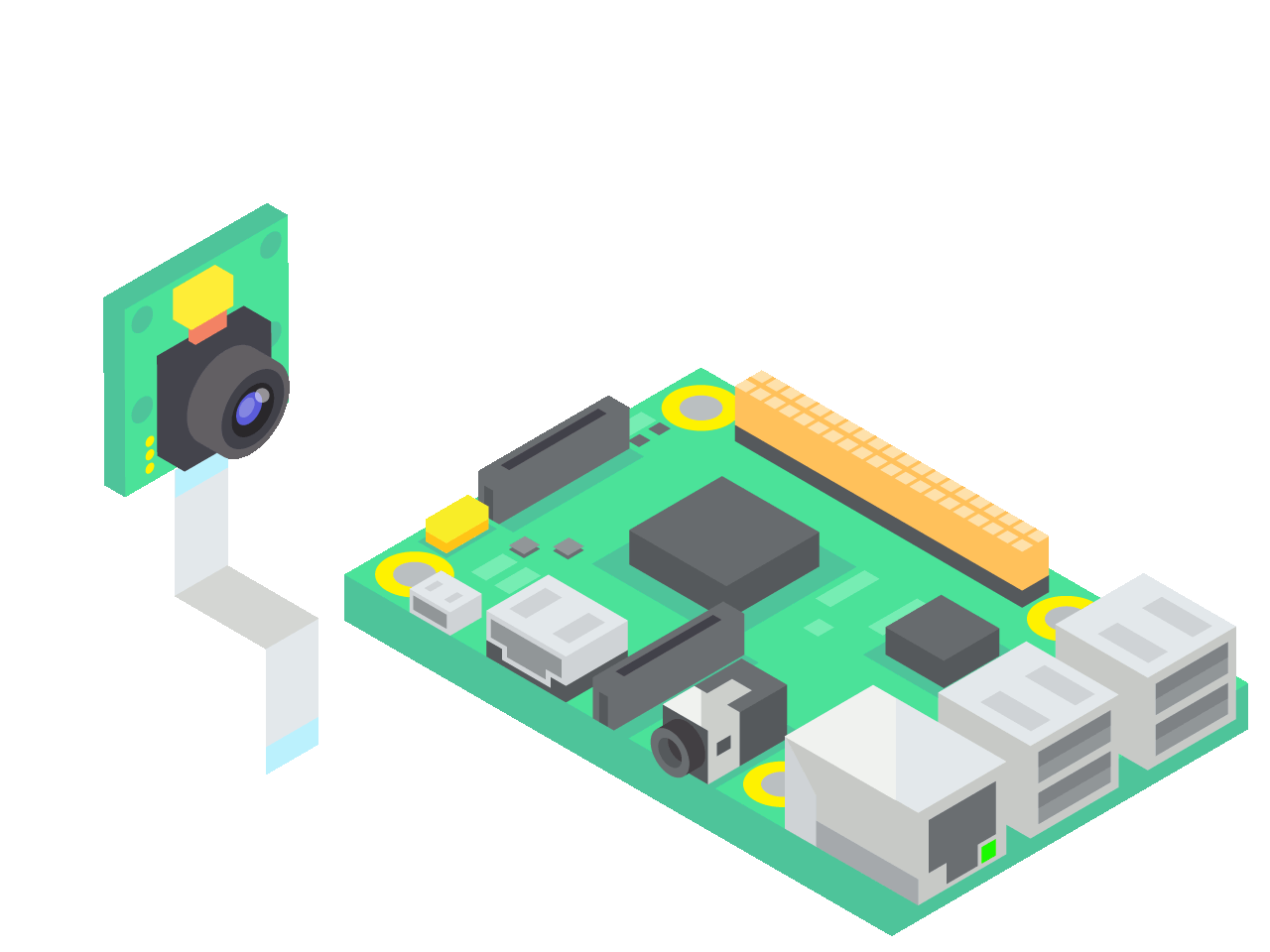

The first step is to connect the camera module to the Raspberry Pi. Make sure that the camera is connected in the right orientation, with the ribbon blue letters facing up as shown in the diagram.

In this guide, the Raspberry Pi 3 Model B+ is used here, but the camera module will work with other Raspberry Pi boards as well. However, with the Raspberry Pi Zero or Raspberry Pi Zero W, where there is a smaller CSI (Camera Serial Interface) port, it is required that you use the Raspberry Pi Zero Camera Cable.

Step 2  Enable the Camera Software

After connecting the camera module to the Raspberry Pi, connect it to the official Raspberry Pi power supply, attach it to a display and start it up. You will need to use a keyboard and a mouse here, so connect those as well.

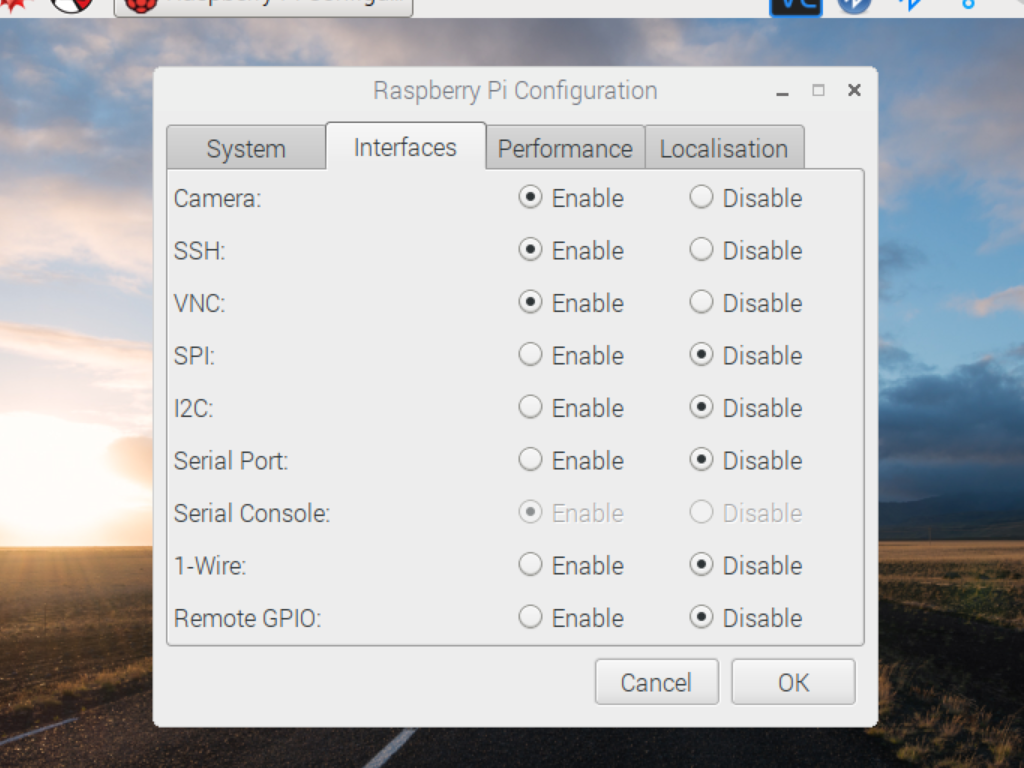

Navigate to the Raspberry Pi Configuration tool from the main menu.

Click on the Interfaces tab, and ensure that Camera is enabled.

Step 3  Start a Camera Preview


              from picamera import PiCamera
from time import sleep

camera = PiCamera()

camera.start_preview()
sleep(30)
camera.stop_preview()


After enabling Camera and rebooting the Pi, it's time to start a camera preview!

So, open Python 3 from the main menu. Create a new file and name is camera.py and enter the following.

Save the file by hitting CTRL + S. To run it, hit F5 and the preview should show up for 30 seconds before closing.

Step 4  Rotate the Preview


              camera.rotation = 180
camera.start_preview()
sleep(10)
camera.stop_preview()


Depending on how your preview turned out, you may want to rotate it if it was upside-down.

So enter the following code to camera.py

Alternatively, camera.rotation can be set to 0, 90, or 270 degrees.

Step 5  Alter the Transparency


              from picamera import PiCamera
from time import sleep

camera = PiCamera()

camera.start_preview(alpha=200)
sleep(10)
camera.stop_preview()


You might want to alter the transparency of the camera preview. To do so, set an alpha level, the value can be anywhere between 0 and 255. To test it out, enter the following in the code:

Step 6  Take Still Pictures


              camera.start_preview()
sleep(5)
camera.capture('/home/pi/Desktop/image.jpg')
camera.stop_preview()


Now, if you want to take still pictures with the camera, you can!

Enter the following code, but make sure that the sleep value is more than 2. This is because it is important for the camera to sleep for at least two seconds in order to give the sensor the time to set its light levels.

After running the code, you will see that the camera preview captures a still picture after 5 seconds.

The photo can be found on your Desktop.

Step 7  Add a Loop


              camera.start_preview()
for i in range(5):
    sleep(5)
    camera.capture('/home/pi/Desktop/image%s.jpg' % i)
camera.stop_preview()


A loop can be added so that the camera will now take five pictures in a row.

Enter the following code.

The variable i is the current iteration number. You will realize that the image file names will be saved as image0.jpg, image1.jpg, image2.jpg, image3.jpg and so forth.

Run the code. Each picture will be taken every five seconds before the preview closes.

Step 8  Capture Video


              camera.start_preview()
camera.start_recording('/home/pi/video.h264')
sleep(10)
camera.stop_recording()
camera.stop_preview()


You might want to record a video. To do so, get rid of capture() . Replace it with start_recording() and stop_recording():

Step 9  Play the Video


              omxplayer video.h264


On the top left hand corner, click on the black monitor icon to open a terminal window.

Enter omxplayer video.h264 to play the video!
