Ultrasonic Rangefinder with Arduino

Difficulty
Easy
Steps
5

What to use when you need proximity sensing in an Arduino project? A good option is to use an ultrasonic sensor.

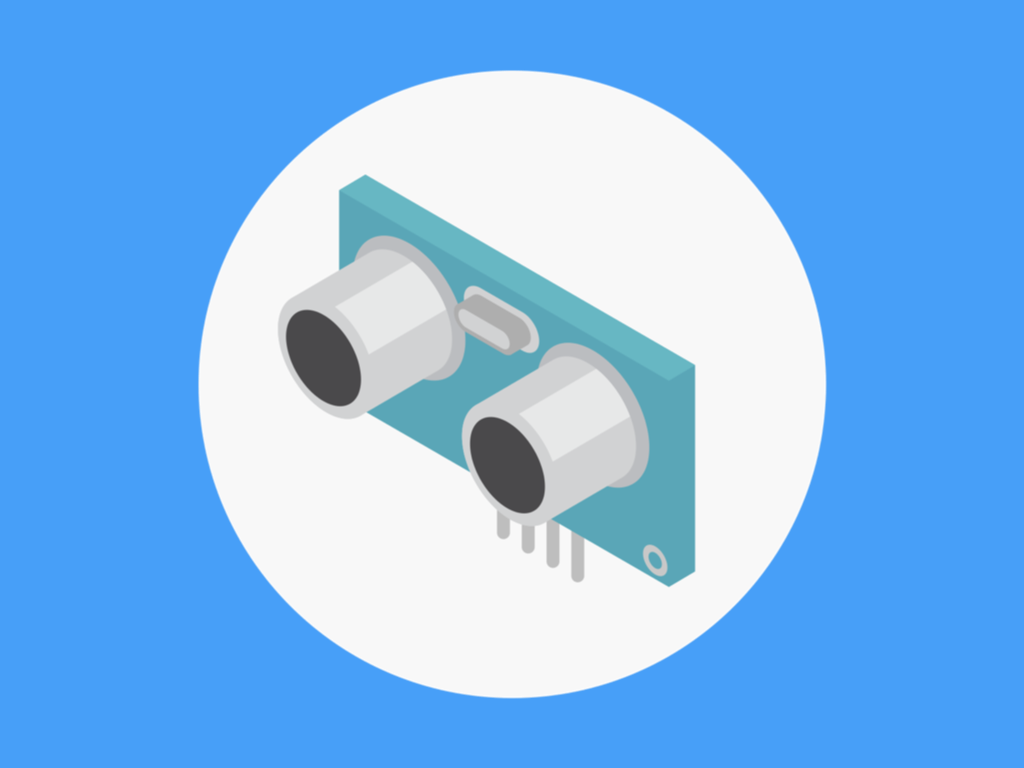

In this guide, you will learn to do just that with an Ultrasonic Rangefinder, a little module that can tell you when something is close, by measuring distance using ultrasonic waves.

After completing this guide, you will be able to incorporate it into your projects!

Step 1  Connect Arduino 5V to the Ultrasonic Range Finder.

  • Connect Arduino 5V to the Ultrasonic Range Finder.

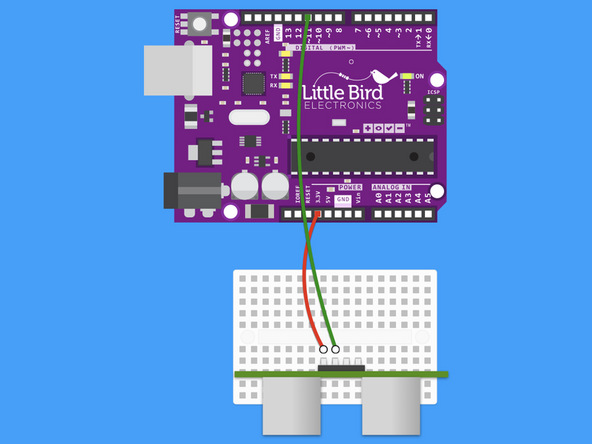

Step 2  Connect Arduino Digital 12 to Trig Pin.

  • Connect Arduino Digital 12 to the Ultrasonic Range Finder's Trig Pin.

Step 3  Connect Arduino Digital 11 to Echo Pin.

  • Connect Arduino Digital 11 to the Ultrasonic Range Finder's Echo Pin.

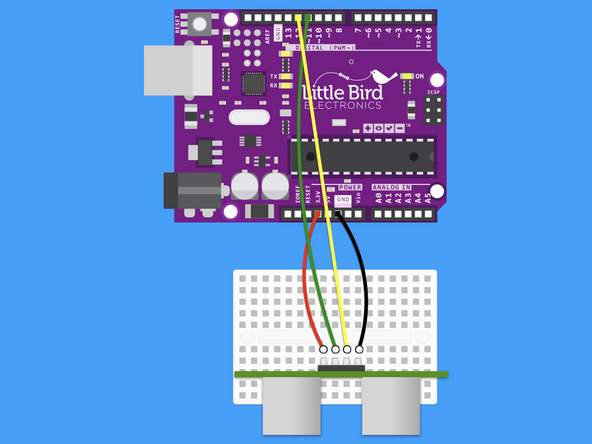

Step 4  Connect Arduino GND to the GND.

  • Connect Arduino GND to the Ultrasonic Range Finder's GND.

Step 5  Program 1: Measure the Distance.


              // defines pins numbers
const int trigPin = 11;
const int echoPin = 12;

// defines variables
long duration;
int distance;

void setup() {
  pinMode(trigPin, OUTPUT); // Make the trigPin an OUTPUT
  pinMode(echoPin, INPUT); // Make the echoPin an INPUT
  Serial.begin(9600); // Setup the Serial Port
}

void loop() {

  // Clear the trigPin
  digitalWrite(trigPin, LOW);
  delayMicroseconds(2);

  // Send a pulse by setting the trigPin Higj for 10 Micro seconds
  digitalWrite(trigPin, HIGH);
  delayMicroseconds(10);
  digitalWrite(trigPin, LOW);

  // Read the length of time for the sound wave to return
  duration = pulseIn(echoPin, HIGH);

  // Calculating the total distance from the object
  distance = duration * 0.034 / 2;

  // Prints the distance to the Serial Port
  Serial.print("The Distance Is: ");
  Serial.println(distance);
}

  • This code will measure the distance from an object and print out the value to your Serial Monitor.
  • Copy and paste the code into your Arduino Software.
  • Upload the code to your Arduino.
  • Open your Serial Monitor at a Baud of 9600.
