Capacitive Touch Sensor with Arduino

Difficulty
Easy
Steps
8

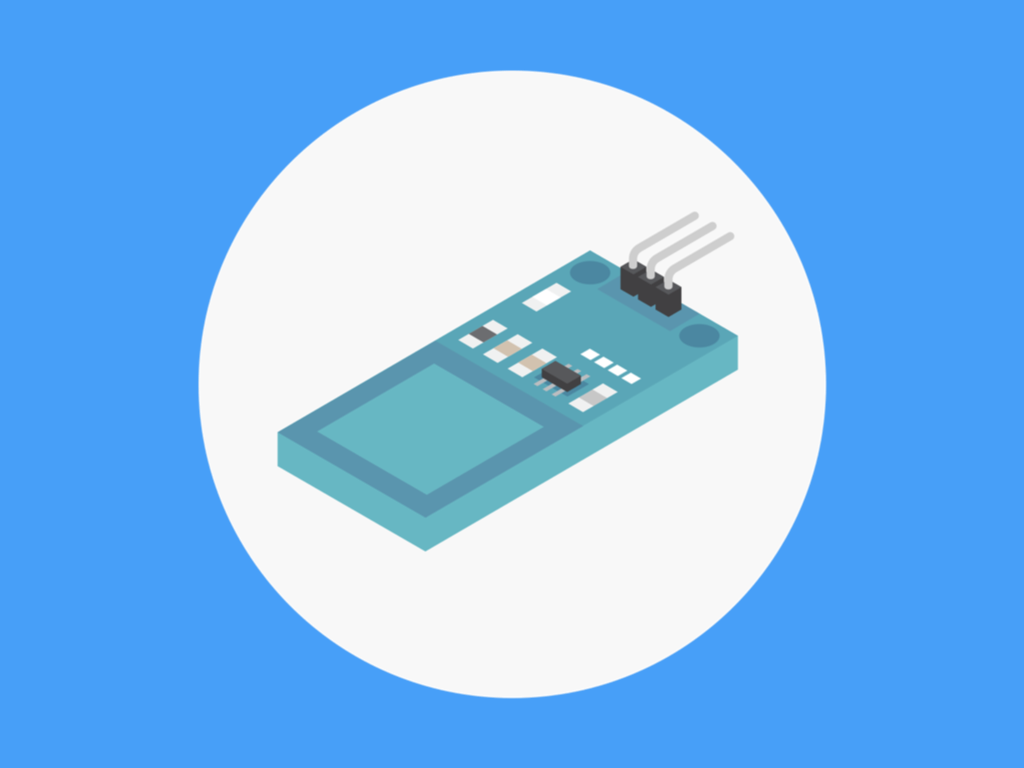

Capacitive touch sensors detect touch, force, or pressure on its surface. When there is contact, the circuit closes inside the sensor, and there is a flow of current.

Follow this guide to learn to turn an LED on and off with a touch sensor and an Arduino. In this guide, we will be using a capacitive touch sensor for Arduino and a Little Bird Uno R3 development board.

The completion of this guide will give you a better understanding of how touch sensors work, as well as how to use them in your own Arduino projects!

Step 1  Connect the Touch Sensor to 5V.

  • Connect the Touch Sensor to 5V.

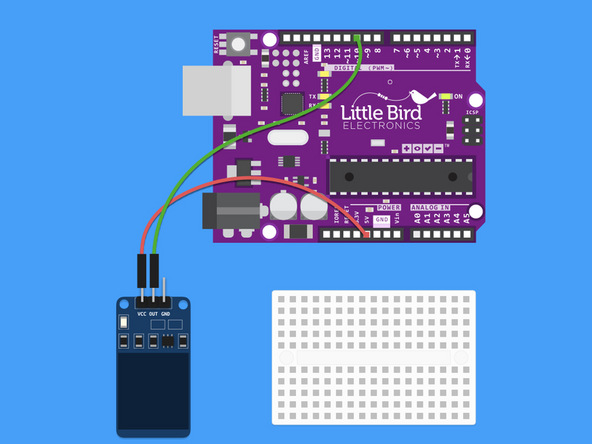

Step 2  Connect the Touch Sensor to Digital Pin 10.

  • Connect the Touch Sensor to Digital Pin 10.

Step 3  Connect the Touch Sensor to Ground.

  • Connect the Touch Sensor to Ground.

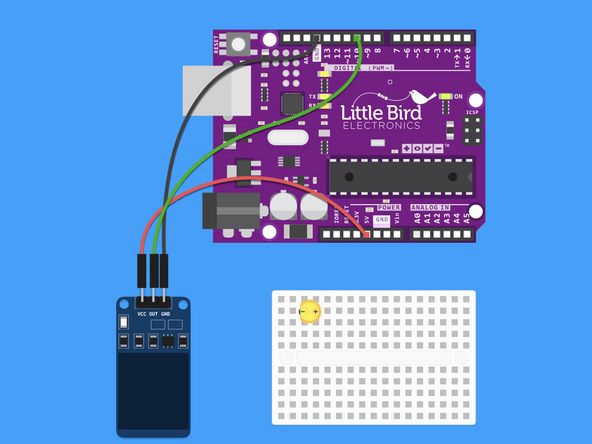

Step 4  Insert LED into Breadboard.

  • Insert LED into Breadboard with the Cathode (short leg) on the left hand side.

Step 5  Insert 220 Ohm Resistor into the Breadboard.

  • Insert 220 Ohm Resistor into the Breadboard.
  • Ensure that it is inline with the LED's anode (longer leg).

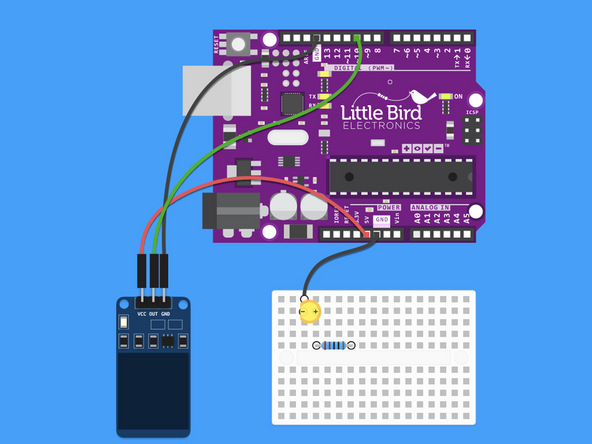

Step 6  Connect LED to Ground.

  • Connect the Cathode of the LED to Ground.

Step 7  Connect 220 Ohm Resistor to Digital Pin 13.

  • Connect 220 Ohm Resistor to Digital Pin 13.

Step 8  Upload the code.


              int touch = 10;  // pin for touch sensor
int ledPin = 13; // pin for the LED

void setup() {
  Serial.begin(9600);
  pinMode(ledPin, OUTPUT);
  pinMode(touch, INPUT);
}

void loop() {
  int touchValue = digitalRead(touch);
  if (touchValue == HIGH){
    digitalWrite(ledPin, HIGH);
    Serial.println("touched");
  }
  else{
    digitalWrite(ledPin,LOW);
    Serial.println("not touched");
  }
  delay(500);

}

  • Upload this code to your Arduino.
  • When you touch the blue area on the sensor the LED on Pin 13 should turn on. Also a red light switches on the sensor.
