Pulse Monitor with EagLED

Difficulty
Moderate
Steps
24

The Pulse Sensor is a plug-and-play, heart-rate sensor for Arduino and Arduino-compatible microcontrollers such as the EagLED, which has an ATMega32U4.  This pulse sensor adds amplification and noise cancellation circuitry, and will enable you to get reliable pulse readings.

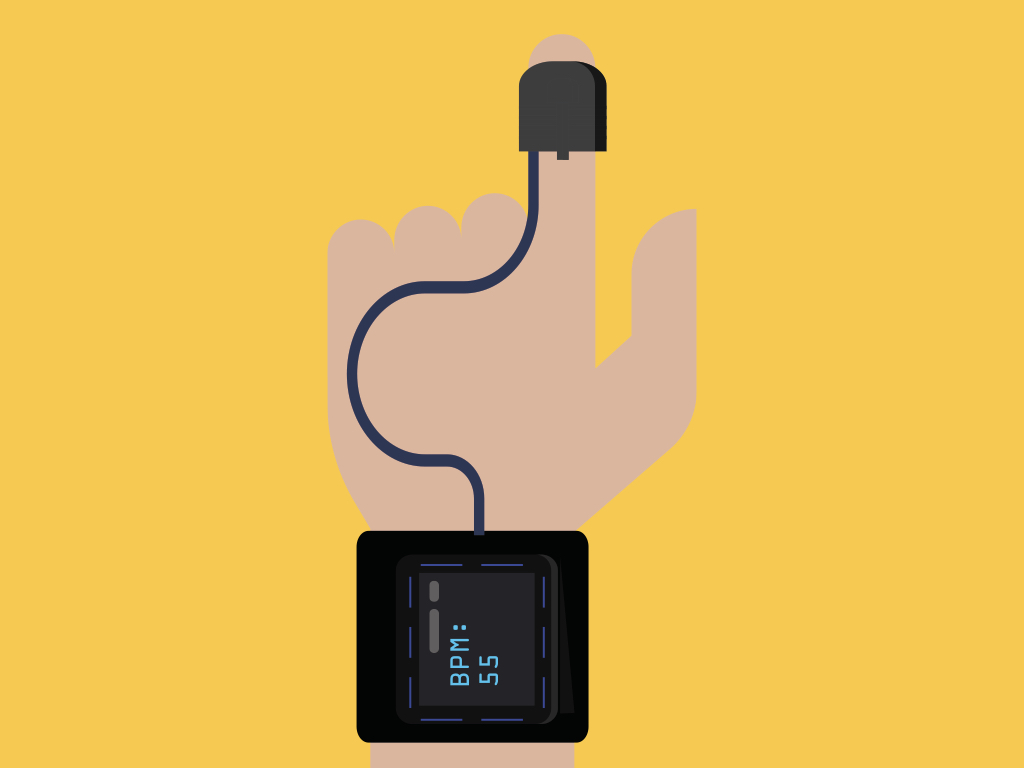

In this guide, we'll prototype a simple heart rate monitor with the pulse sensor, alligator clips and EagLED, then it will be moved onto felt fabric.

Complete this guide to create your own heart rate monitor with EagLED.

Overview

  • This project uses the EagLED board along with a Pulse Sensor Amped to create a wearable pulse monitor that will measure heart beats per minute (BPM).
  • BPM is a measure of an average of some beats over time. Yup, your heart doesn't actually beat with the regularity of clockwork. In actuality, it speeds up and slows down as your activities vary throughout the day.

  • Generally, a low BPM indicates rest, while a high BPM corresponds with exertion or even anxiety
  • Many things can affect your heart rate, including: physical activity, fitness level, air temperature, emotions, medication, and age

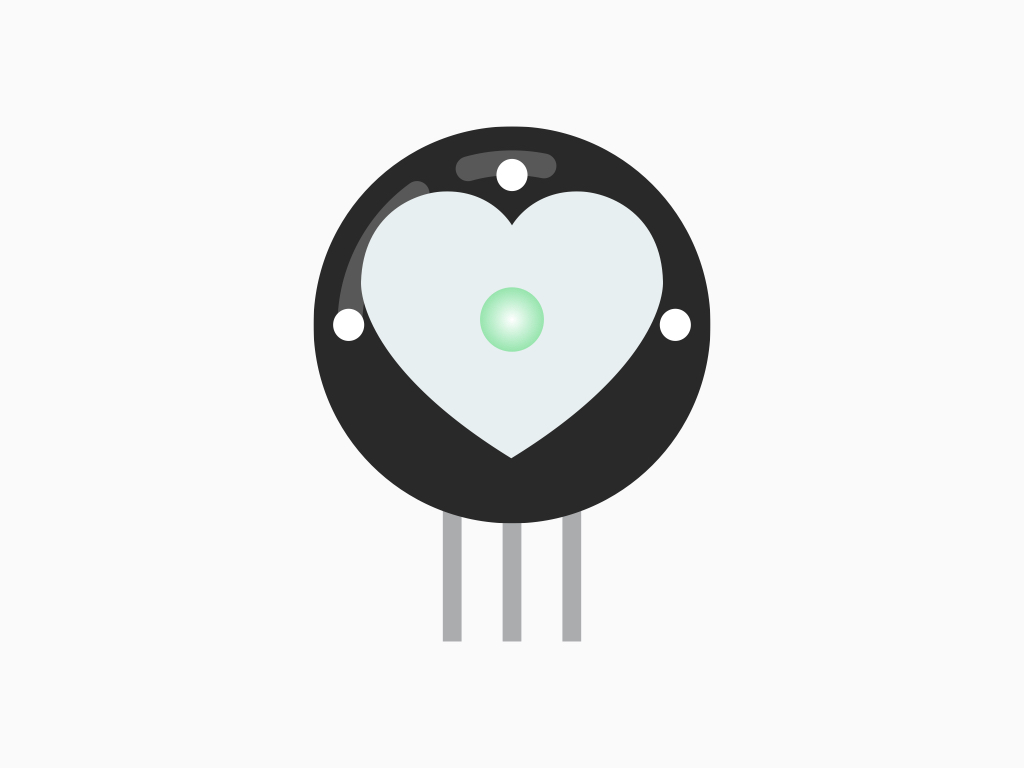

The Pulse Sensor

  • The Pulse Sensor Amped works by using photoplethysmography (PPG), which measures differences in light absorption. This is a technique used for non-invasive heart rate monitoring.
  • On one side of the sensor, there is a green LED. On the other side, there is a light-sensitive diode.
  • When placed on say your finger or earlobe,  this green light penetrates the skin! Some of this green light is then reflected back to the sensor, and measured by the light-sensitive diode.
    • When blood pulses through your veins, more green light absorbed.
    • In between beats, there is less green light absorbed due to the absence of blood.
  •  The heart pulse signal that comes out of a photoplethysmograph is an analog signal reflecting fluctuations in voltage:
    • If the amount of light incident on the sensor remains constant, then the signal value will remain close to 512.
    • More light and the signal goes up, less light and the signal goes down.

Step 1  Connect a red alligator clip to VBATT

  • To begin prototyping with alligator clips, first connect a red alligator clip to:
    • '+' on Pulse Sensor
    • 'VBATT' on EagLED

Step 2  Connect a black alligator clip to GND

  • Next, connect a black alligator clip to:
    • '-' on Pulse Sensor
    • 'GND' on EagLED

Step 3  Connect an alligator clip to #A9

  • Next, connect another alligator clip to:
    • 'S' on Pulse Sensor
    • '#A9' on EagLED

Step 4  Connect an alligator clip to #6

  • Get out a heart-shaped LED and connect another alligator clip to:
    • '+' on LED
    • '#6' on EagLED

Step 5  Connect an alligator clip to GND

  • Connect another black alligator clip to:
    • '-' on LED
    • 'GND' on EagLED

Step 6  Connect LiPo battery to EagLED

  • The EagLED can be powered by a USB cable or a LiPo battery
  • Connect the 180mAh LiPo battery to the JST connector found on the EagLED.

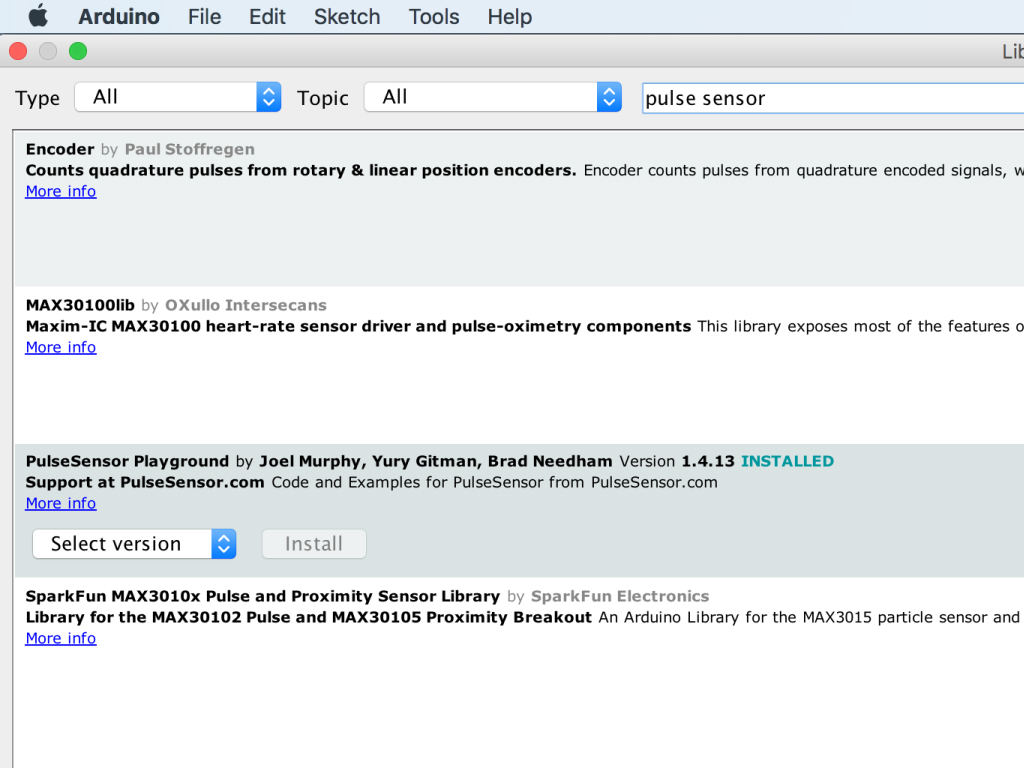

Step 7  Download PulseSensor Library

  • Before we can program the pulse sensor, the Pulse Sensor library will need to be installed:
    • Go to Tools > Manage Libraries ...
    • Type 'pulse sensor' in the search field
    • Scroll down to find 'PulseSensor Playground'
    • Click on the 'Install' button

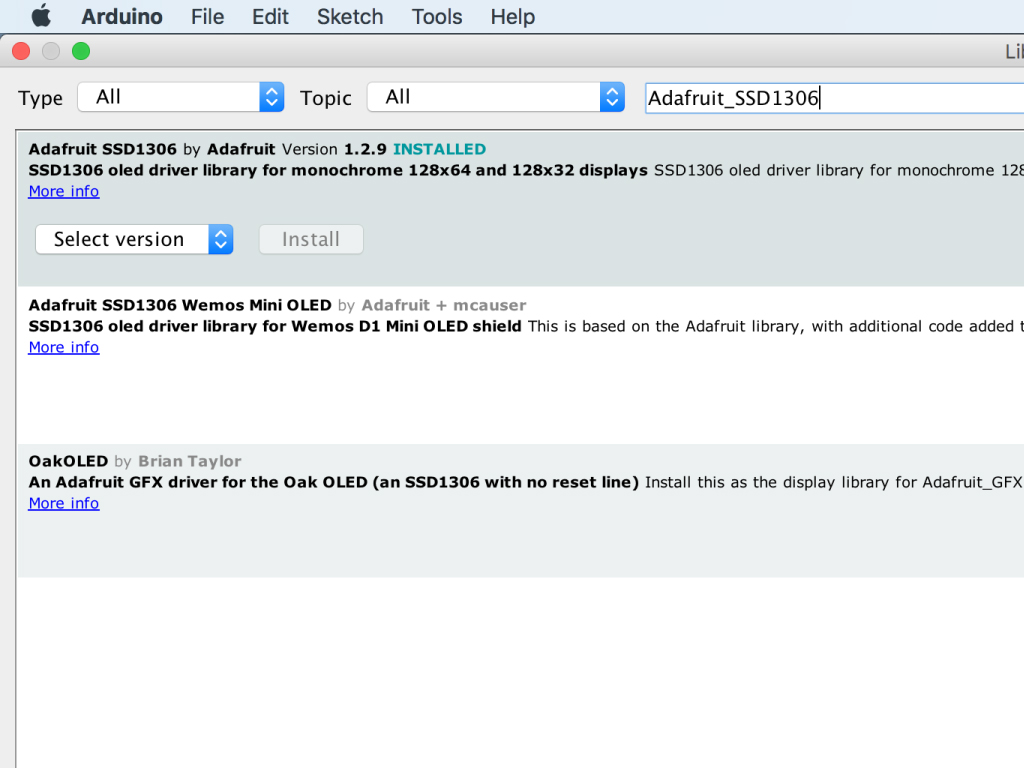

Step 8  Download Adafruit_SSD1306 Library

  • You will also need a library for the SSD1306 OLED screen
    • Type 'pulse sensor' in the search field
    • Find 'Adafruit_SSD1306'
    • Click on the 'Install' button

Step 9  Getting BPM to Monitor



/*  Getting_BPM_to_Monitor prints the BPM to the Serial Monitor, using the least lines of code and PulseSensor Library.
 *  Tutorial Webpage: https://pulsesensor.com/pages/getting-advanced
 *
--------Use This Sketch To------------------------------------------
1) Displays user's live and changing BPM, Beats Per Minute, in Arduino's native Serial Monitor.
2) Print: "♥  A HeartBeat Happened !" when a beat is detected, live.
2) Learn about using a PulseSensor Library "Object".
4) Blinks LED on PIN 6 with user's Heartbeat.
--------------------------------------------------------------------*/

#define USE_ARDUINO_INTERRUPTS true    // Set-up low-level interrupts for most acurate BPM math.
#include <PulseSensorPlayground.h>     // Includes the PulseSensorPlayground Library.

//  Variables
const int PulseWire = A9;       // PulseSensor PURPLE WIRE connected to ANALOG PIN 0
const int LED = 6;          // The on-board Arduino LED, close to PIN 13.
int Threshold = 550;           // Determine which Signal to "count as a beat" and which to ignore.
                               // Use the "Gettting Started Project" to fine-tune Threshold Value beyond default setting.
                               // Otherwise leave the default "550" value.

PulseSensorPlayground pulseSensor;  // Creates an instance of the PulseSensorPlayground object called "pulseSensor"


void setup() {

  Serial.begin(9600);          // For Serial Monitor

  // Configure the PulseSensor object, by assigning our variables to it.
  pulseSensor.analogInput(PulseWire);
  pulseSensor.blinkOnPulse(LED);       //auto-magically blink Arduino's LED with heartbeat.
  pulseSensor.setThreshold(Threshold);

  // Double-check the "pulseSensor" object was created and "began" seeing a signal.
   if (pulseSensor.begin()) {
    Serial.println("We created a pulseSensor Object !");  //This prints one time at Arduino power-up,  or on Arduino reset.
  }
}



void loop() {

 int myBPM = pulseSensor.getBeatsPerMinute();  // Calls function on our pulseSensor object that returns BPM as an "int".
                                               // "myBPM" hold this BPM value now.

if (pulseSensor.sawStartOfBeat()) {            // Constantly test to see if "a beat happened".
 Serial.println("♥  A HeartBeat Happened ! "); // If test is "true", print a message "a heartbeat happened".
 Serial.print("BPM: ");                        // Print phrase "BPM: "
 Serial.println(myBPM);                        // Print the value inside of myBPM.
}

  delay(20);                    // considered best practice in a simple sketch.

}



  • Connect the EagLED to the computer via USB cable
  • Upload this code to the EagLED
  • Then go to Tools > Serial Monitor

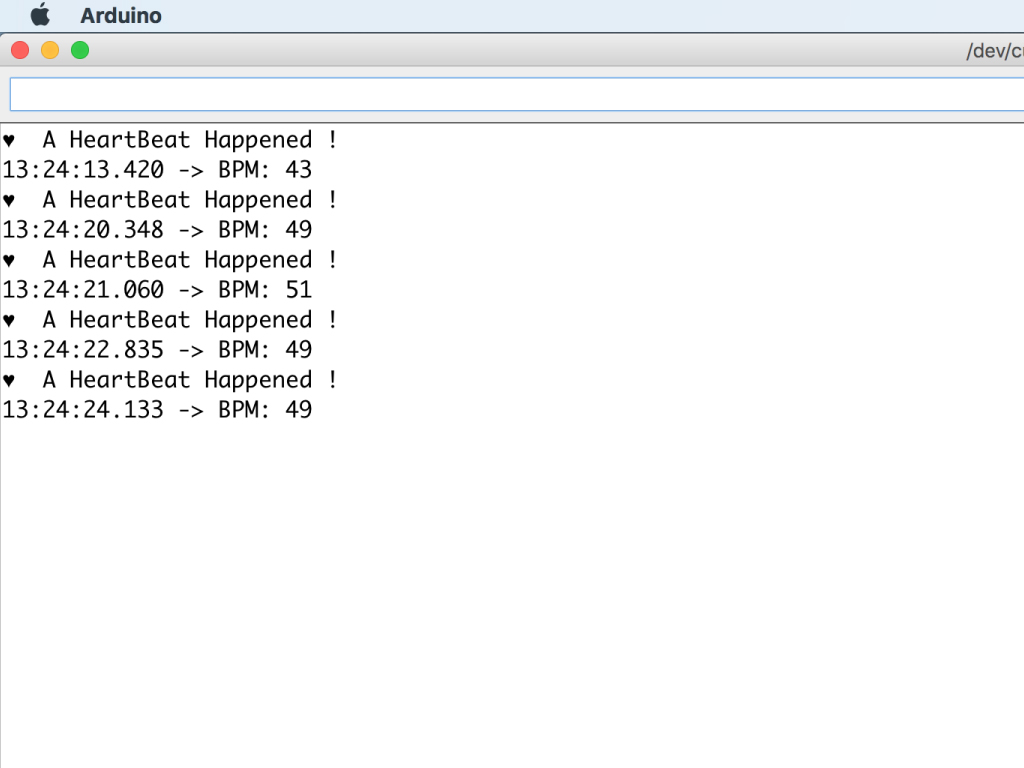

Step 10  Serial Monitor

  • Place the pulse sensor against your finger or ear lobe, and you should see BPM readings soon enough.

Step 11  OLED screen

  • Next, instead of displaying the sensor readings to the Serial Monitor:
    • Get it to display on an OLED screen, specifically the SSD1306.
    • We'll also omit the heart-shaped LED in the final build.
  •  An OLED screen stands for organic light-emitting diode screen, composed of layers including layers of organic compound that lights up when fed with electricity.
  • The SSD1306 OLED screen has four pins:
    • GND: In electronics, we define a point in a circuit to be a kind of zero volts or 0V reference point, on which to base all other voltage measurements. This point is called common ground or GND.
      • Note: Voltage is the difference in electric potential between two points. As it is difficult to talk about voltage without a reference point, we need another point to compare it to.
    • VCC  : While 'VCC' stands for Voltage Common Collector, we'll connect the VCC pin to 3.3V on the EagLED
    • Serial Clock (SCL)
    • Serial Data (SDA)
      • Note: To connect the SCL and SDA pins to the EagLED, they must be connected to Pins 3 and 2.

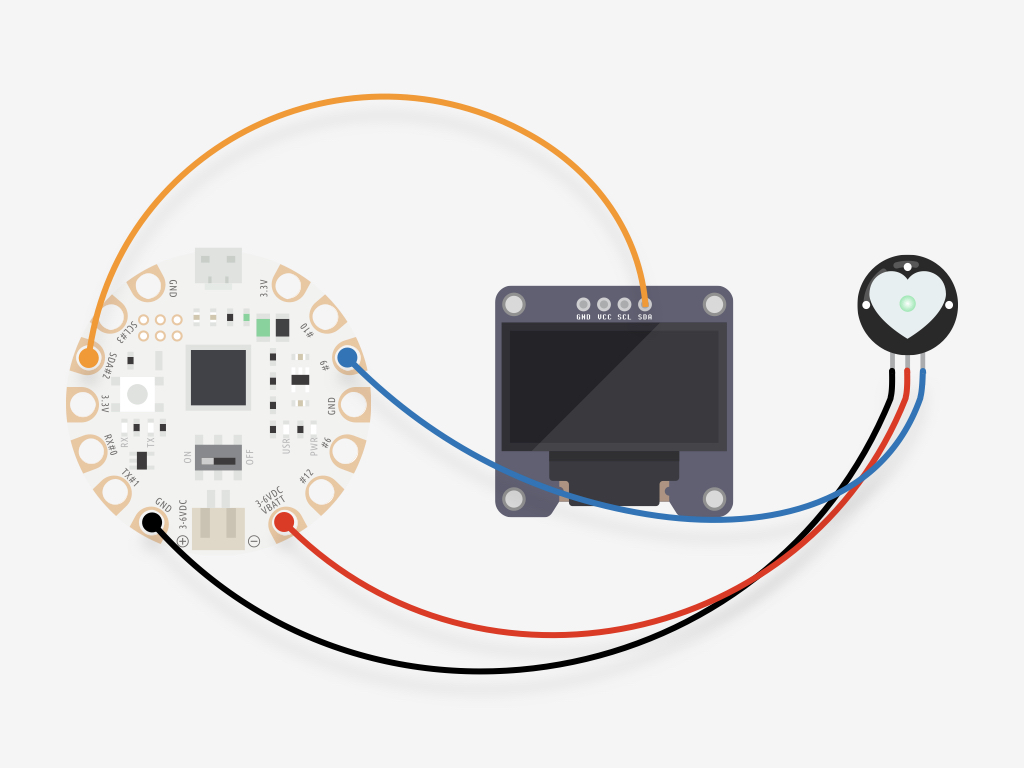

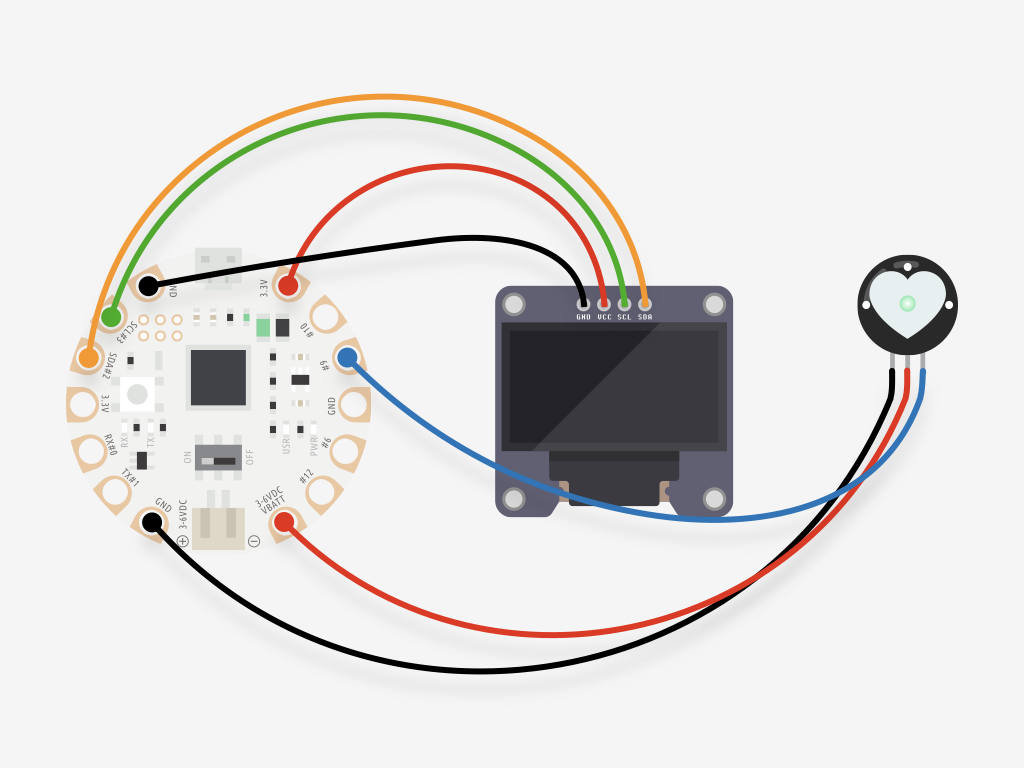

Step 12  Connect OLED SDA pin to EagLED

  • Attach an alligator clip from 'SDA#2' on the EagLED to 'SDA' on the OLED screen

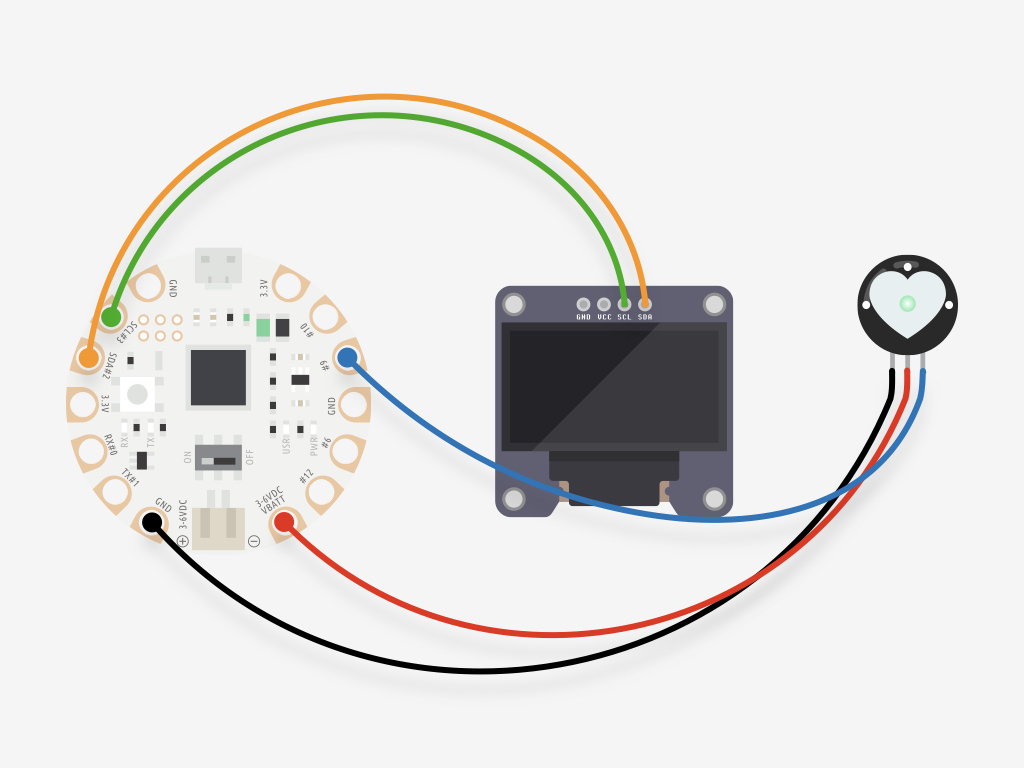

Step 13  Connect OLED SCL pin to EagLED

  • Attach an alligator clip from 'SCL#3' on the EagLED to 'SCL' on the OLED screen

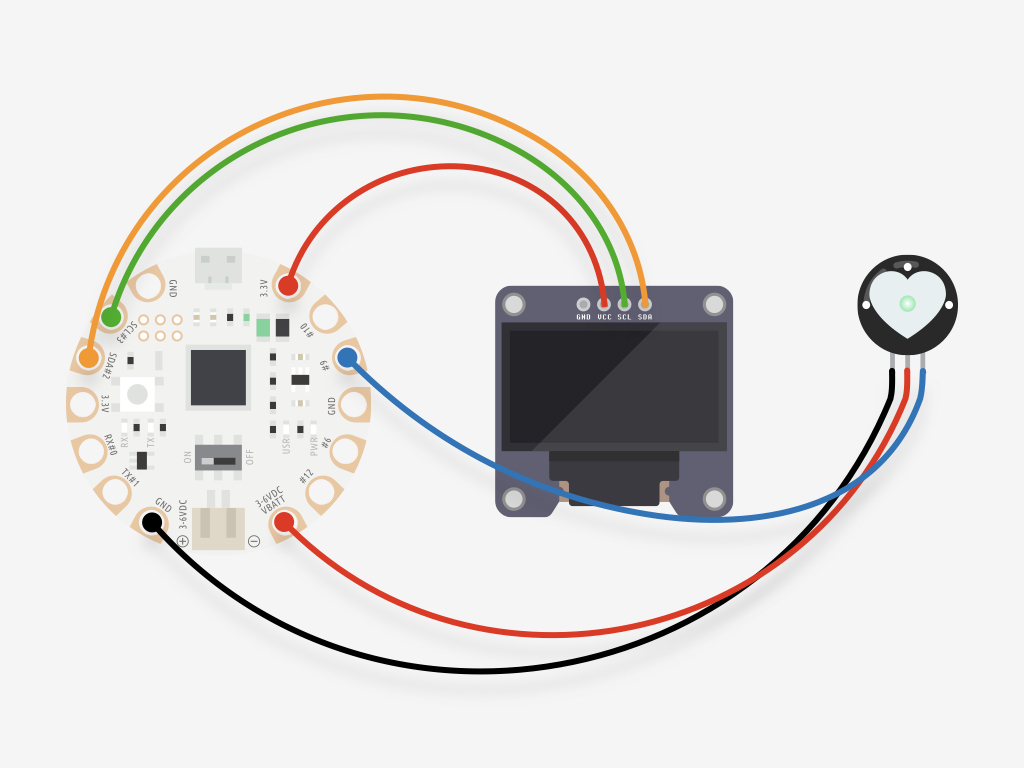

Step 14  Connect OLED VCC pin to EagLED

  • Attach an alligator clip from '3.3V' on the EagLED to 'VCC' on the OLED screen

Step 15  Connect OLED GND pin to EagLED

  • Attach an alligator clip from 'GND' on the EagLED to 'GND' on the OLED screen

Step 16  Display BPM on OLED



#define USE_ARDUINO_INTERRUPTS true    // Set-up low-level interrupts for most acurate BPM math.
#include <PulseSensorPlayground.h>     // Includes the PulseSensorPlayground Library.
#include <Wire.h>
#include <Adafruit_SSD1306.h>

#define OLED_RESET 4
Adafruit_SSD1306 display(OLED_RESET);

//  Variables
const int PulseWire = A9;       // PulseSensor PURPLE WIRE connected to ANALOG PIN 0
int Threshold = 550;           // Determine which Signal to "count as a beat" and which to ignore.
// Use the "Gettting Started Project" to fine-tune Threshold Value beyond default setting.
// Otherwise leave the default "550" value.


PulseSensorPlayground pulseSensor;  // Creates an instance of the PulseSensorPlayground object called "pulseSensor"


void setup() {

  display.begin(SSD1306_SWITCHCAPVCC, 0x3C);  // initialize with the I2C addr 0x3D (for the 128x64)
  delay(2000);
  display.clearDisplay();   // clears the screen and buffer
  Serial.begin(9600);          // For Serial Monitor
  // Configure the PulseSensor object, by assigning our variables to it.
  pulseSensor.analogInput(PulseWire);
  pulseSensor.setThreshold(Threshold);

  // Double-check the "pulseSensor" object was created and "began" seeing a signal.
  if (pulseSensor.begin()) {
    Serial.println("We created a pulseSensor Object !");  //This prints one time at Arduino power-up,  or on Arduino reset.
  }
}



void loop() {

  int myBPM = pulseSensor.getBeatsPerMinute();  // Calls function on our pulseSensor object that returns BPM as an "int".
  // "myBPM" hold this BPM value now.

  if (pulseSensor.sawStartOfBeat()) {            // Constantly test to see if "a beat happened".
    display.clearDisplay();
    display.setTextSize(2);
    display.setTextColor(WHITE);
    display.setCursor(0, 0);
    display.println("BPM: ");
    display.println(myBPM);
    display.display();
  }

  delay(20);                    // considered best practice in a simple sketch.

}



  • Connect EagLED to the computer via microUSB cable
  • Make sure the EagLED switch is flicked to 'ON'
  • Upload the following sketch to the EagLED

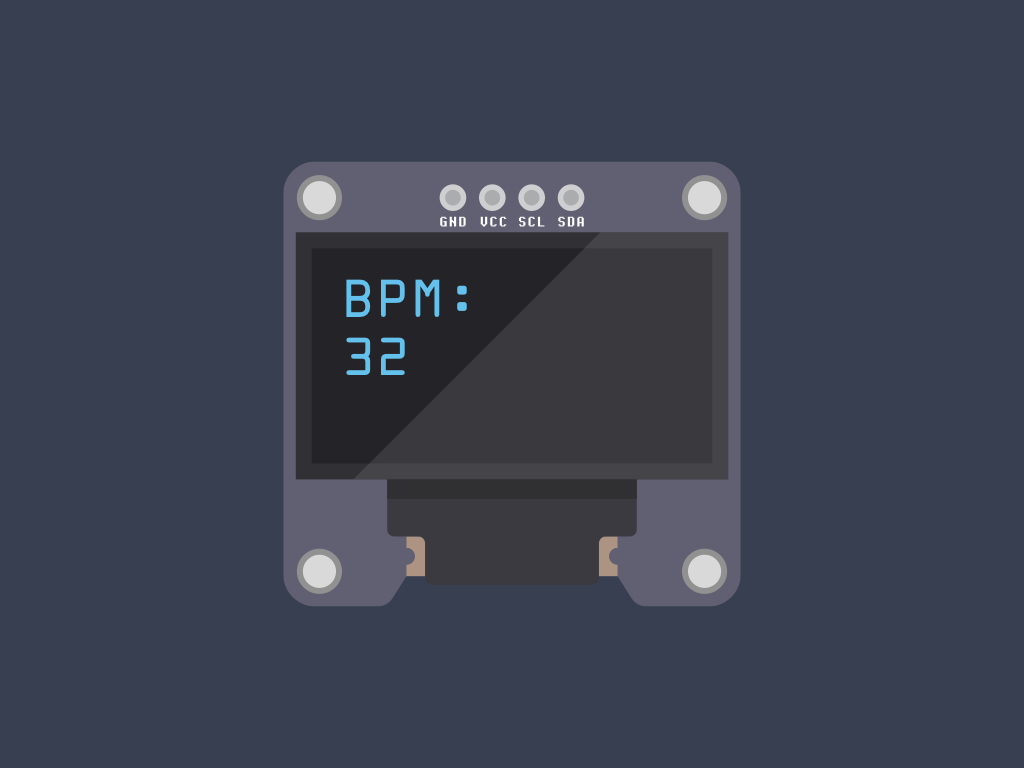

  • The OLED screen should now display the BPM

Step 17  Solder the OLED screen onto EagLED

  • To move the prototype to a more permanent solution, remove the alligator clips and solder the OLED screen onto the EagLED:
    • 'GND' to 'GND'
    • 'VCC' to '3.3V'
    • 'SCL' to 'SCL#3'
    • 'SDA' to 'SDA#2'

Step 18  Solder pulse sensor pins to EagLED

  • Next, solder the Pulse Sensor pins to the EagLED:
    • '-' to 'GND'
    • '+' TO 'VBATT'
    • 'S' to '#A9'

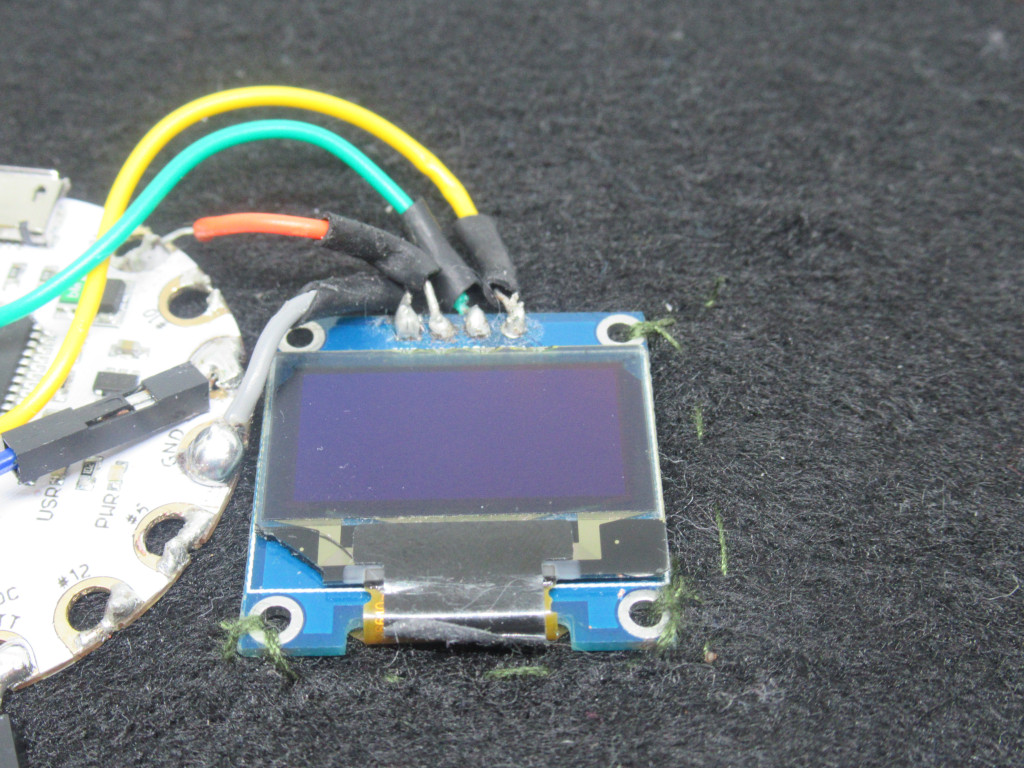

Step 19  Sew OLED screen in place

  • There are four mounting holes on the OLED module.
  • Use regular, non-conductive thread and sew the OLED screen in place.

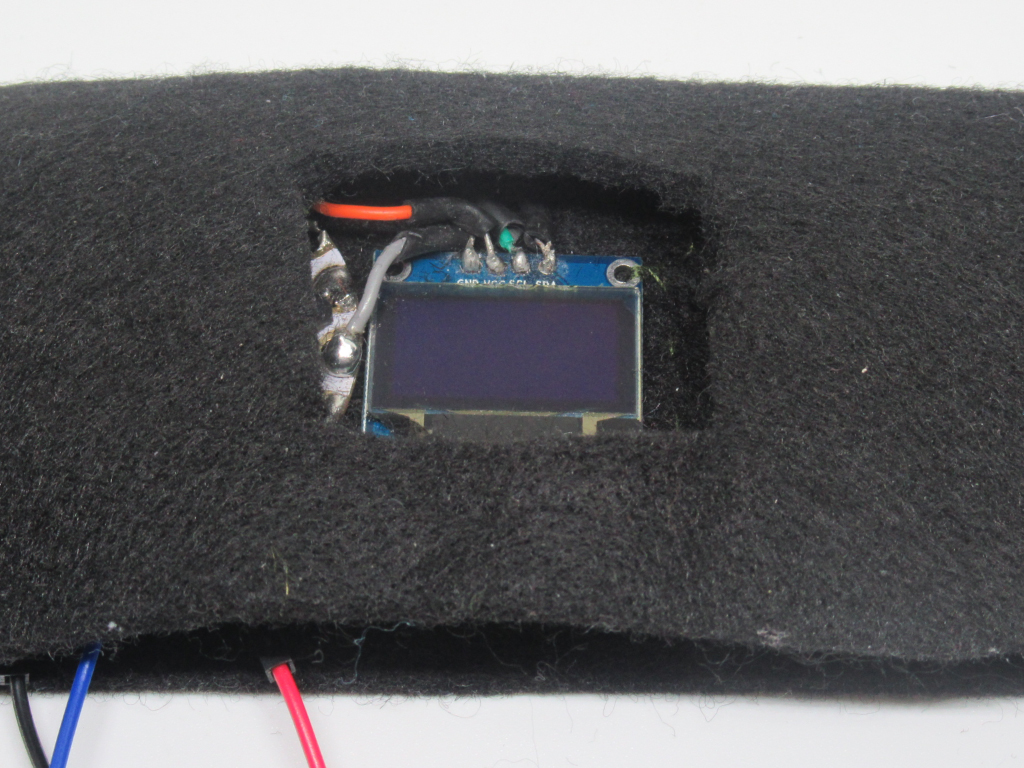

Step 20  Prepare craft materials

  • In this guide, we'll move the prototype onto felt fabric.
    • Cut out a rectangular piece of felt fabric, making sure that the length of it will wrap around your wrist

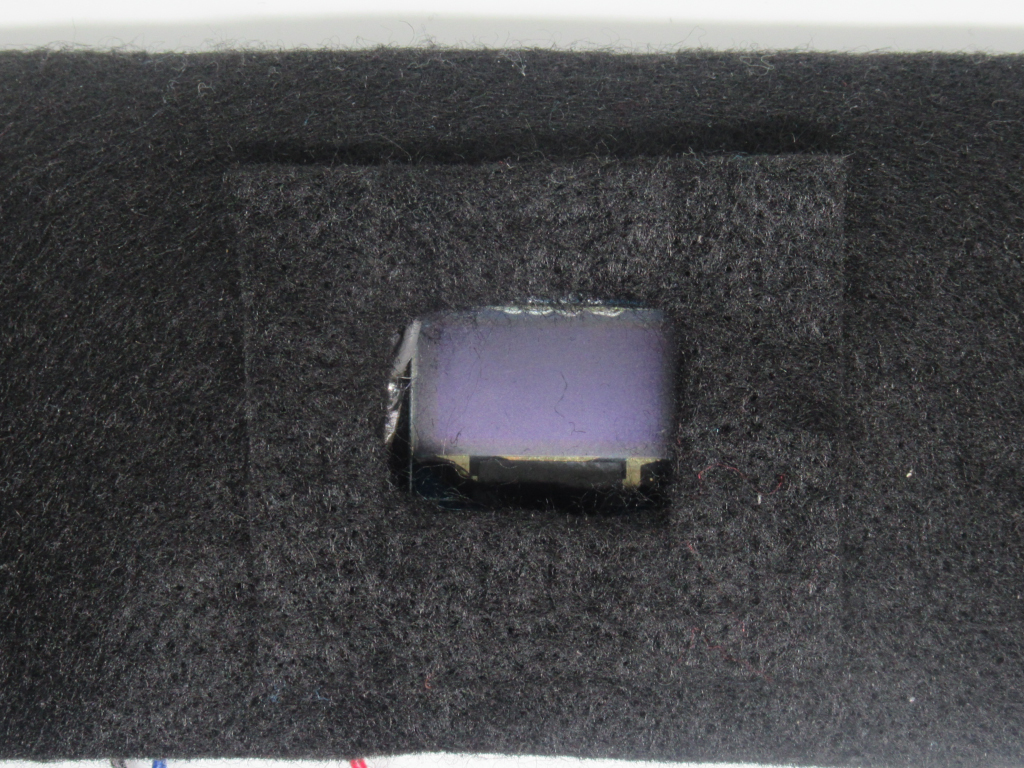

    • Cut out another rectangular shaped piece of felt fabric. This will be placed on top of the OLED screen.

Step 21  Stitch ends of felt fabric together

  • Finally, sew both ends of the felt fabric strap together.

Conclusion

Once complete, your build may look something like this.  Use it to monitor your BPM, reduce anxiety and increase feelings of calm. Some suggestions on how to go further:
