Use a Tilt Sensor with Arduino

Difficulty
Moderate
Steps
4

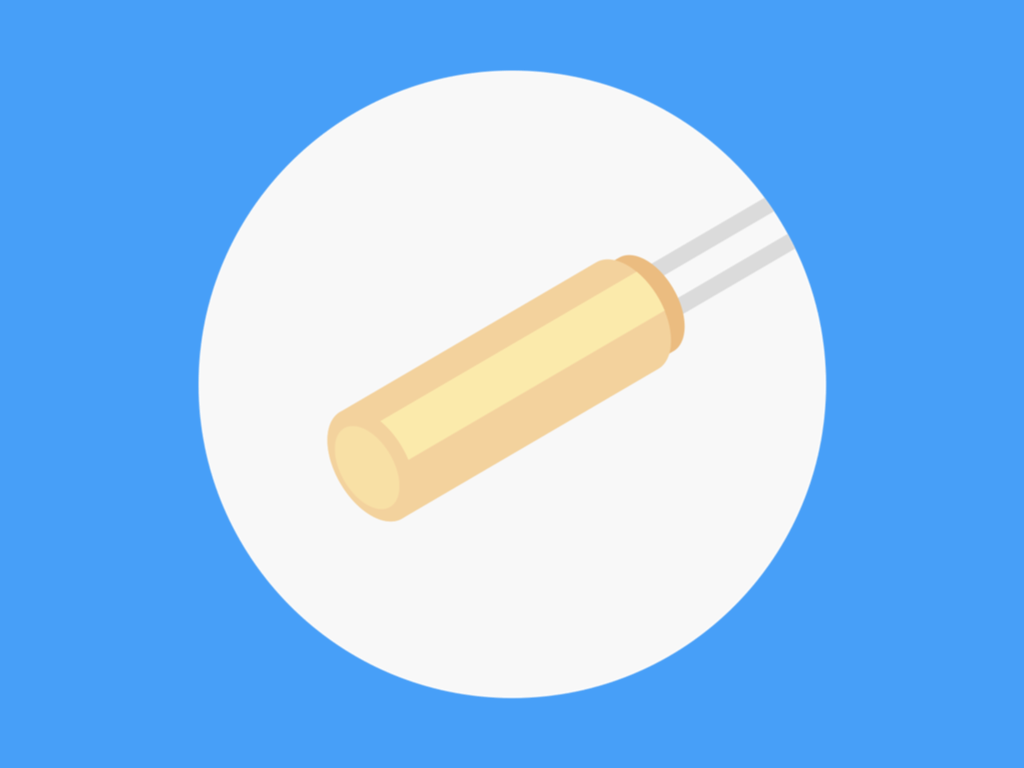

A tilt sensor allows the detection of orientation, and are tiny, inexpensive and low-power components used in plenty of Arduino projects.

In this guide, we will learn to use a ball tilt sensor with the 100% Arduino compatible development board, Little Bird Uno R3, so that when the sensor is tilted, it opens the circuit. When the switch is vertical, the switch is ON.

After completing this guide, you will be able to use tilt sensors in your next projects!

Parts Used in This Guide

Buy

Buy

Buy

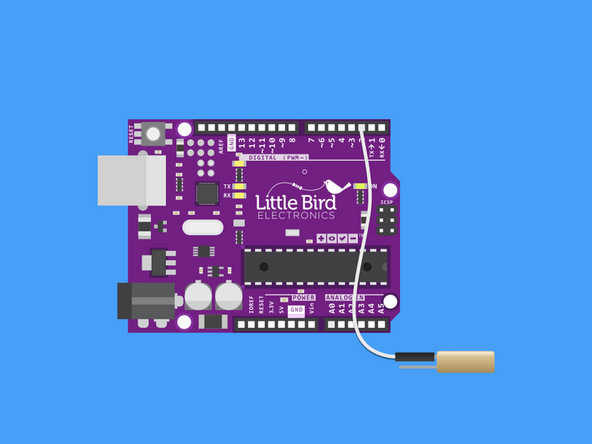

Step 1  Connect Pin 2 to the tilt switch.

  • Connect Pin 2 to the Tilt Switch.
  • The Tilt Switch isn't polarised, so you can plug it into either of the legs.

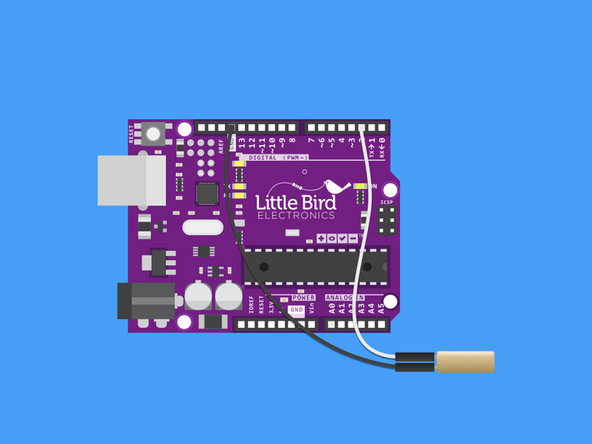

Step 2  Connect Ground to the tilt switch.

  • Connect the other leg of the Tilt switch to ground.

Step 3  Upload the code.


              const int ledPin = 13;// we will turn the Pin 13 light on
void setup()
{
  pinMode(ledPin,OUTPUT);
  pinMode(2,INPUT);
  digitalWrite(2, HIGH);
}
/******************************************/
void loop()
{
  int digitalVal = digitalRead(2);
  if(HIGH == digitalVal)
  {
    digitalWrite(ledPin,LOW);//turn the led off
  }
  else
  {
    digitalWrite(ledPin,HIGH);//turn the led on
  }
}

  • Copy this code and upload it to your Arduino.
  • Now when you move the sensor up and down, the ball will roll and the built-in LED (on pin 13) should turn on

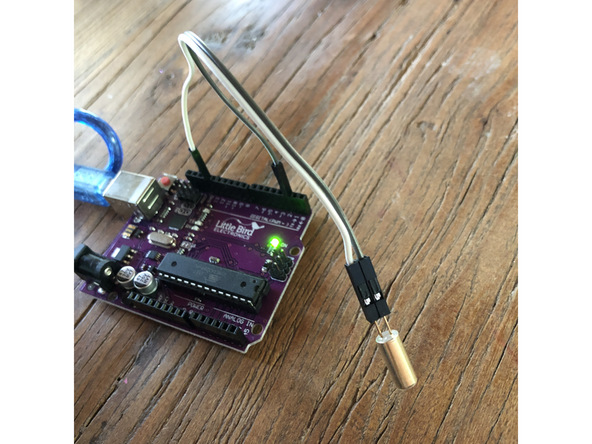

Step 4  This is what your circuit should look like!

  • As the ball inside the tube rolls - the ball inside rolls down and touches the two contacts.
