Temperature Sensing with ShaKey

Difficulty
Easy
Steps
7

Did you know that your ShaKey has an in-built temperature sensor?

In this guide, we'll show you how to get started with data logging using the Arduino IDE and Google Sheets.

Complete this guide to start logging temperature data with your ShaKey!

Parts Used in This Guide

ShaKey Board Only
LB-SHAKEY-BOARD

Buy

Step 1  Arduino IDE

You will need the Arduino IDE downloaded and installed on your computer.

Already got the Arduino IDE installed and set up for the ShaKey? Move on to the next step!

If not, please follow our guide on how to set up the Arduino IDE for ShaKey.


Step 2  Example sketch

Open up the example sketch for the temperature sensor by clicking on:

File > Examples > Shakey > Demo > TemperatureSensor

Step 3  Serial Monitor

Click on Tools > Serial Monitor

If it's succesfully working, you should see the temperature being printed (in degrees Celsius and degrees Fahrenheit) to the serial monitor.

Step 4  TemperatureSpreadsheet example

In the previous sketch, the temperature was printed every 1 second. To start data logging, we need to go beyond printing it to the serial monitor.

Go ahead and open up the next sketch by clicking on:

File > Examples > Shakey > Demo > TemperatureSpreadsheet

Upload this sketch to the ShaKey by clicking on the 'Upload' button on the top left-hand corner in Arduino IDE.

Step 5  Create google sheet

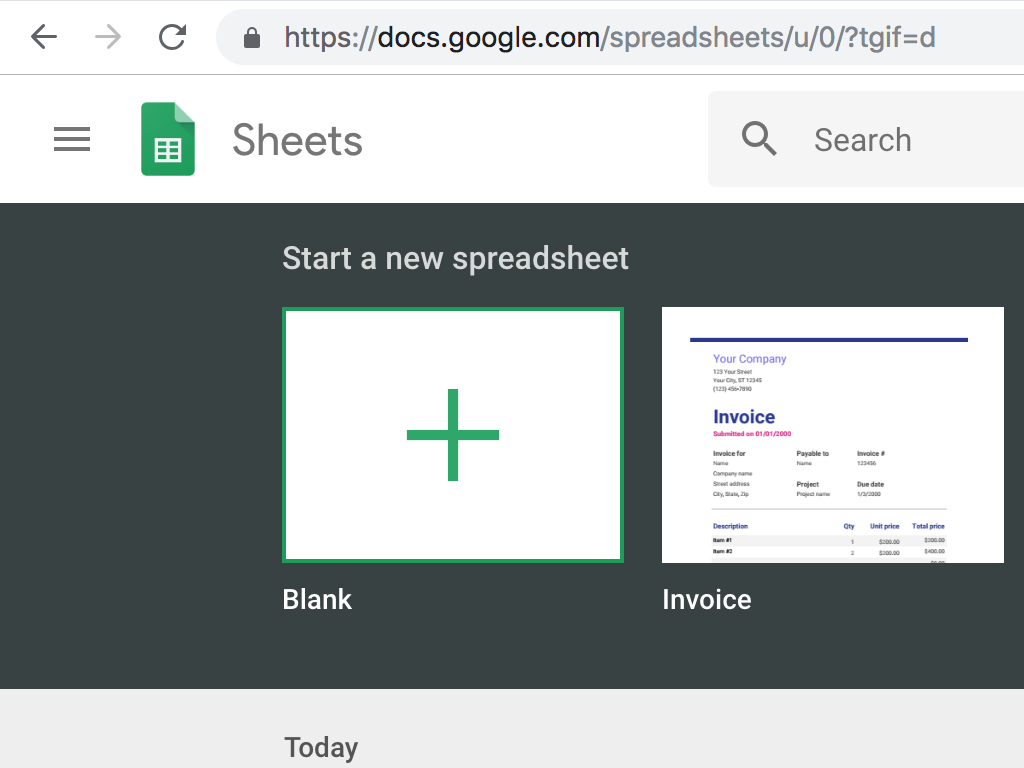

Now head to Google Sheets and click on 'Blank' to create a new Google Sheet.

Step 6  Connect alligator clip to Earth and Space

Connect an alligator clip from 'Earth' to 'Space' on the ShaKey.

Step 7  Watch the temperature log

Once you've got the spreadsheet open and the code uploaded to the ShaKey, you'll notice that the temperature will be logged automatically into the Google sheet.

Nice work!
