Pacman game and controller with ShaKey

Difficulty
Moderate
Steps
15

If you were born around the 80's, you might remember the iconic Pacman game.

If not, you'll get to play it in this guide,  after building it in Scratch from the ground up. You will also use the ShaKey to make a super special controller of your own.

Complete this guide to get started with game programming! Here, you'll learn about programming concepts such as variables, and how to use conditional control blocks.

Parts Used in This Guide

ShaKey Board Only
LB-SHAKEY-BOARD

Buy

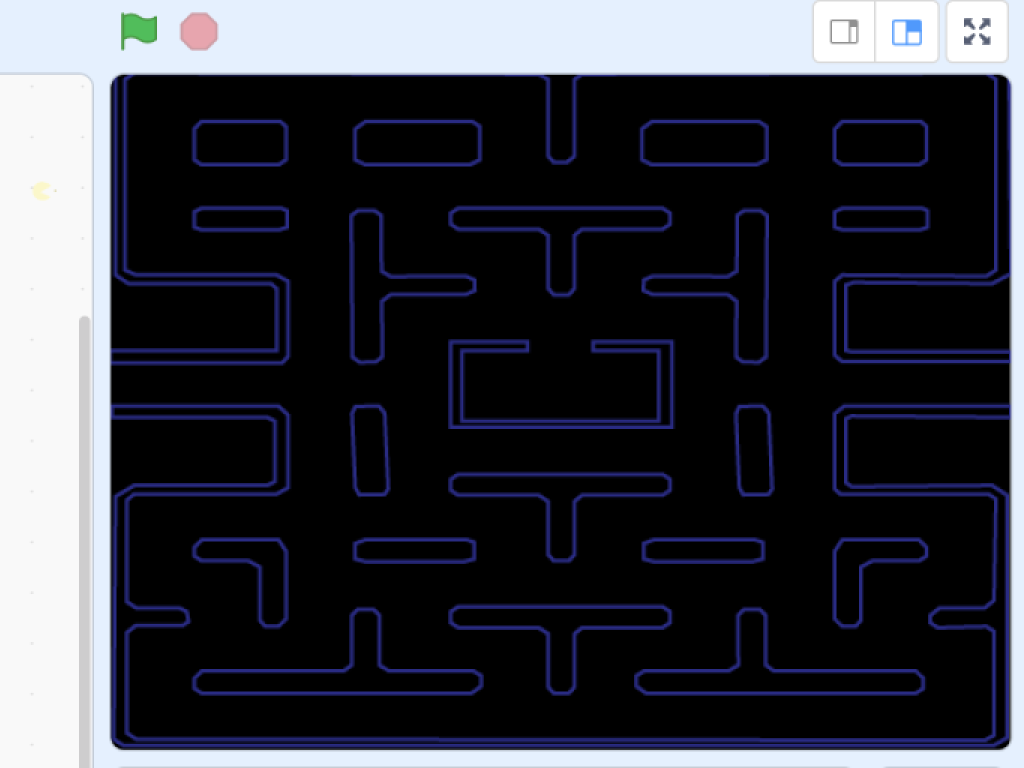

Step 1  The backdrop

The game will be programmed in Scratch, so go on and open up the Scratch editor.

You could paint the backdrop, or choose a backdrop of the Pacman game.

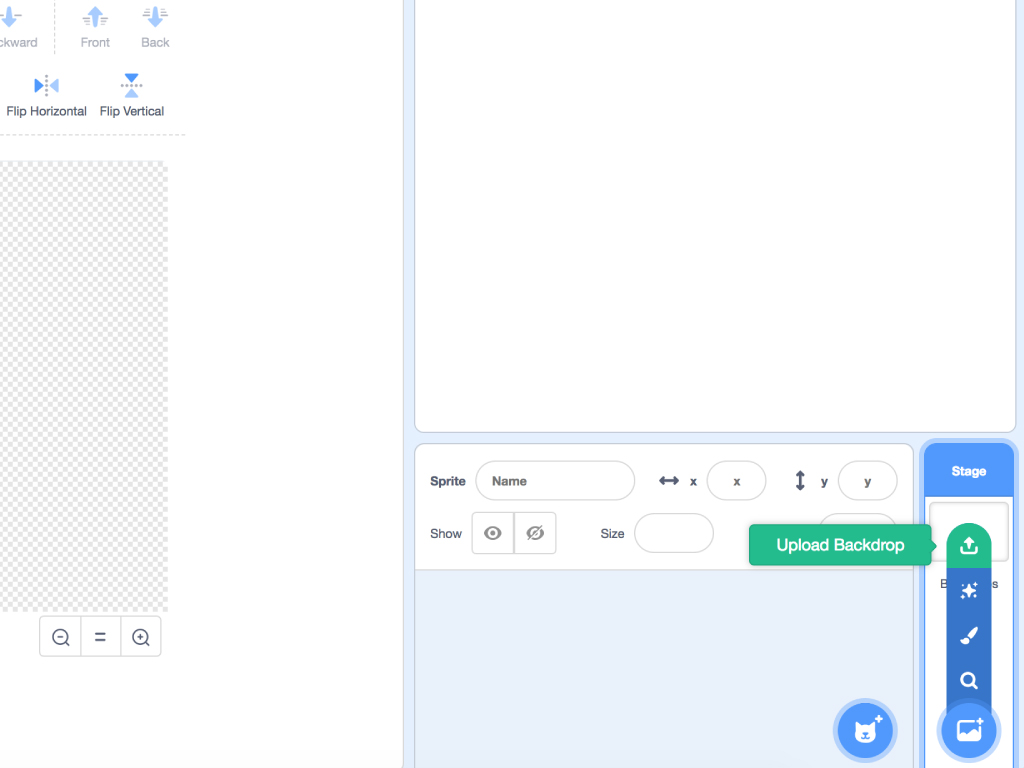

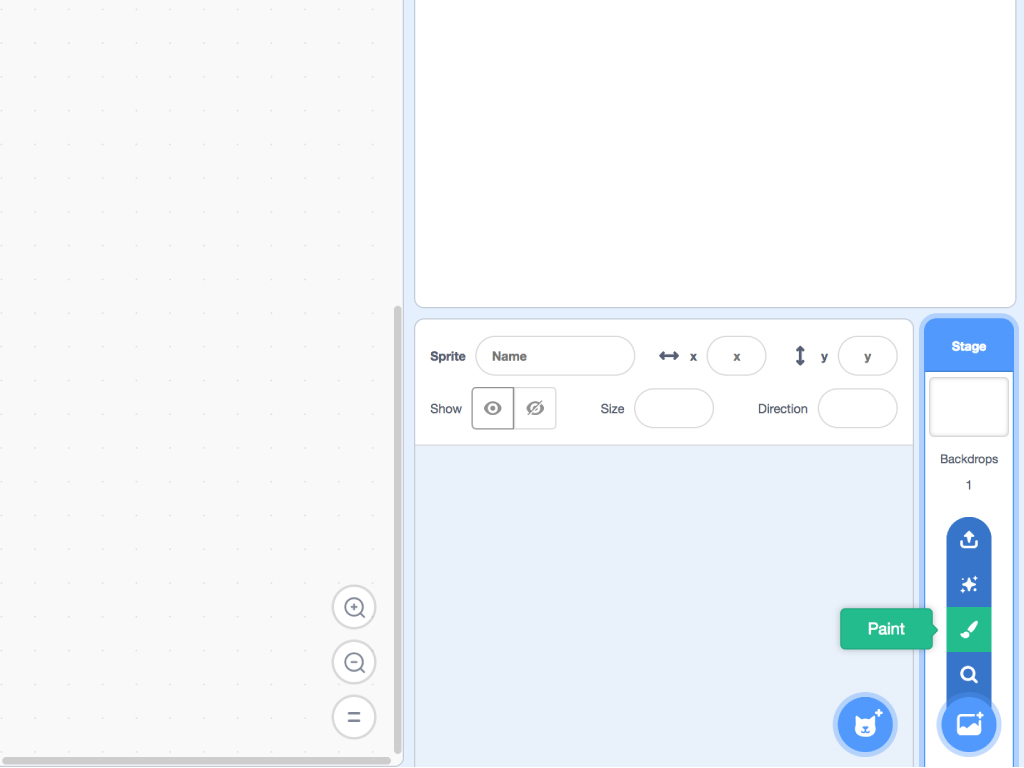

  • Hover over the icon on the bottom right-hand corner. It should say 'Choose a backdrop' before showing other options
  • Click on 'Paint' to start painting or click on 'Upload a Backdrop'
  • If you want to use another image, remember that the Scratch stage is 480px x 360px in size.
  • Click on 'Convert to Vector' button.

Step 2  Pacman sprite

  • Delete the cat sprite by clicking on the little cross icon on 'Cat' as shown in the first image.
  • Hover your mouse over 'Choose a backdrop' button found on the bottom right corner
  • Select 'Paint' to make the Pacman sprite
  • Two costumes are needed.
  • Add a dot of colour in front of the Pacman for both costumes.
    Note: Choose a colour that is not the same as the background maze sprite.

Step 3  Animate Pacman

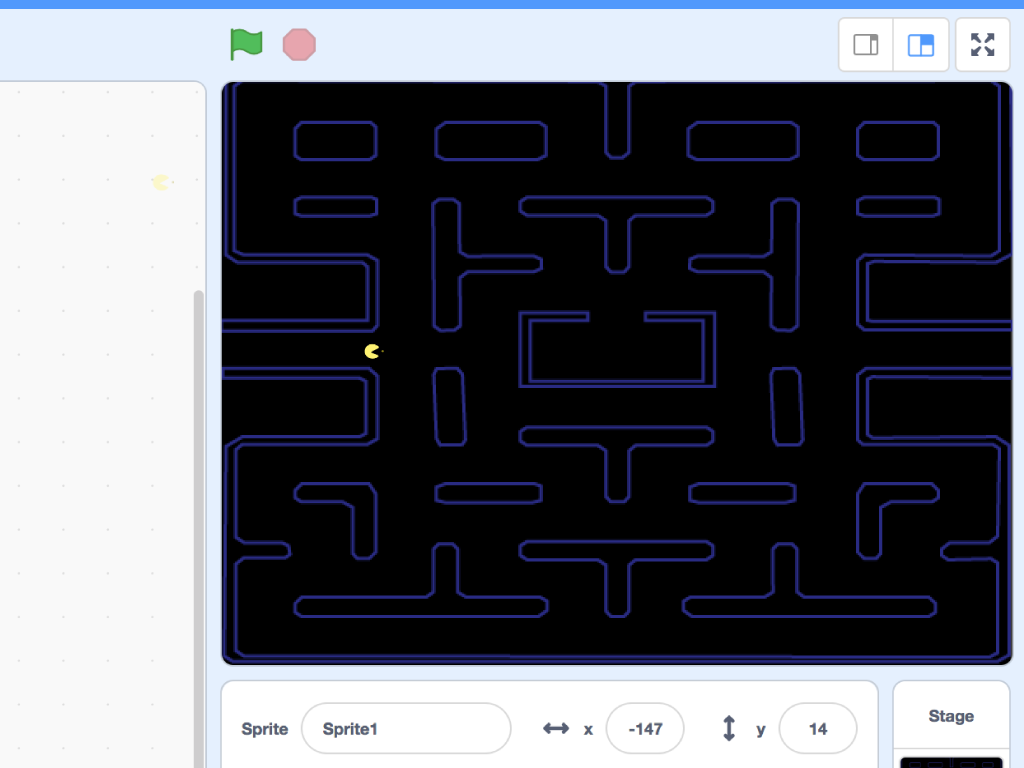

First, set the Pacman sprite in the starting position by changing

  • its x value to -150
  • its Direction value to 15
  • In the Sprite list, select the pacman sprite by clicking on it.

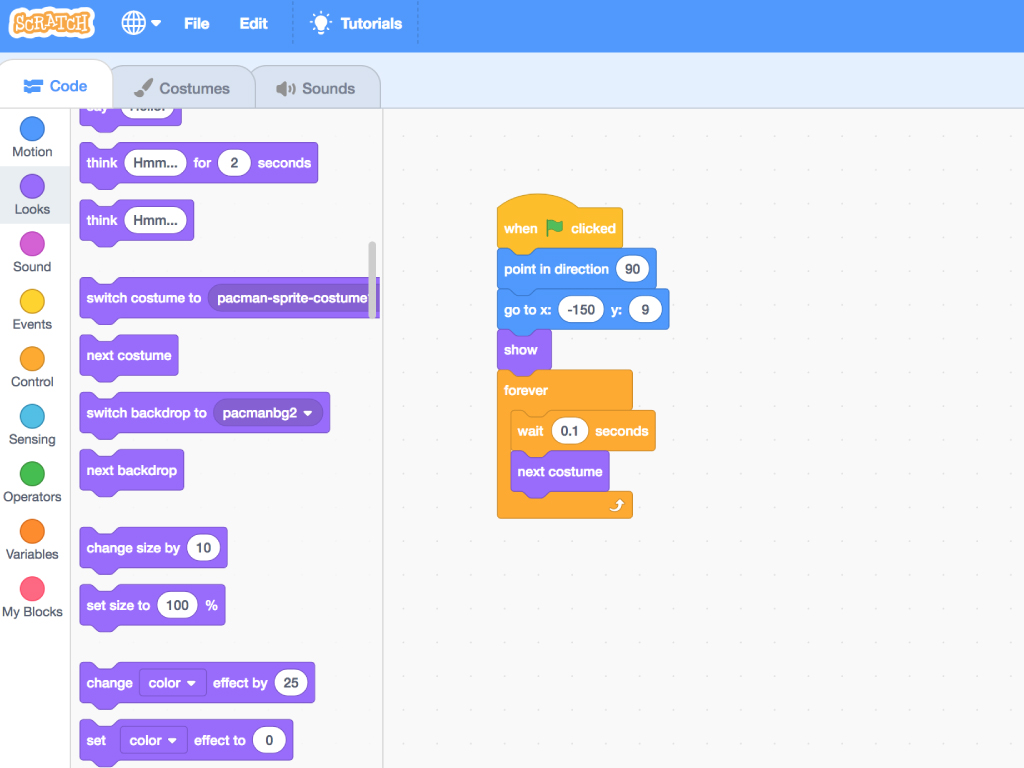

  • Click on 'Code' tab, then add the Scratch code shown in the second image
  • You can also download the Scratch code here: test-pacman-sprite.sb3

Step 4  Make Pacman move

Now for the code that will get the pacman to move, use the following blocks as shown in the image.

  • Grab a 'when green flag clicked' block from 'Events' tab.
  • Attach a 'forever' block from 'Control' tab to it
  • Add an 'if ... then' block, a 'color ... is touching ... ? ' block from 'Sensing' tab
  • Finally, get a'move ... steps' block from the 'Motion' tab

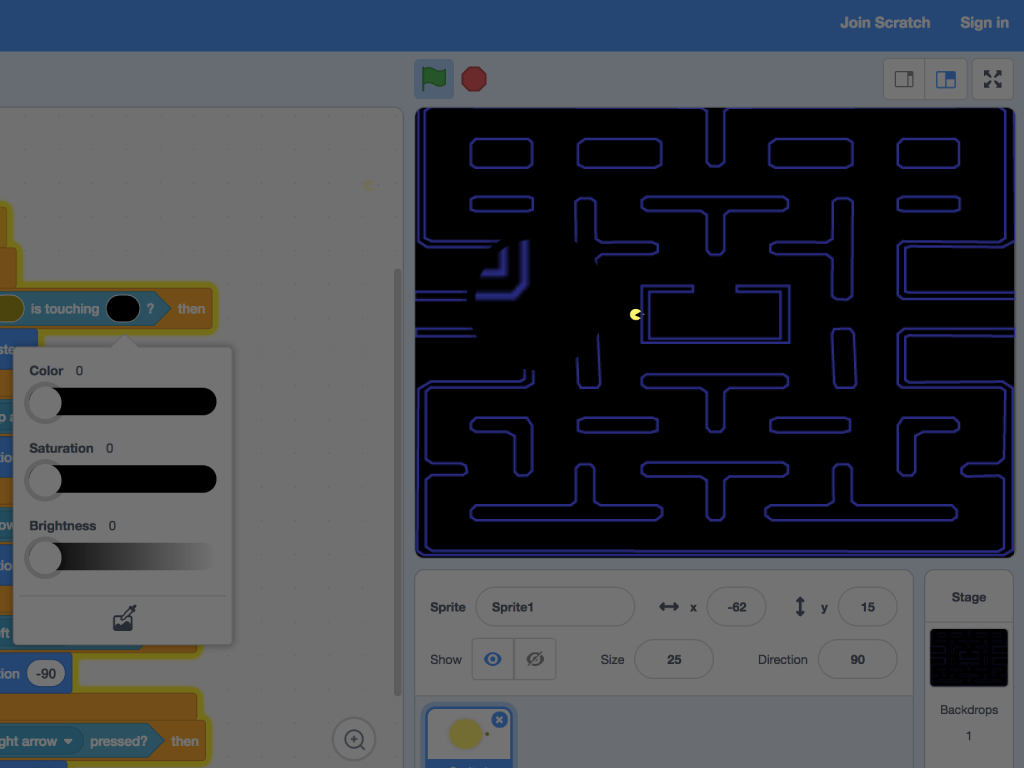

  • Set the first color option from 'color ... is touching ... ? ' to the colour of the dot from pacman sprite
  • Then set the second color option from 'color ... is touching ... ?' to the colour of the background.

With the 'color ... is touching ... ' block, placed within the 'forever' block, the code is telling the pacman sprite this: Once green flag is clicked, start the game by moving forever, but only if the pacman is within bounds of the maze (black).

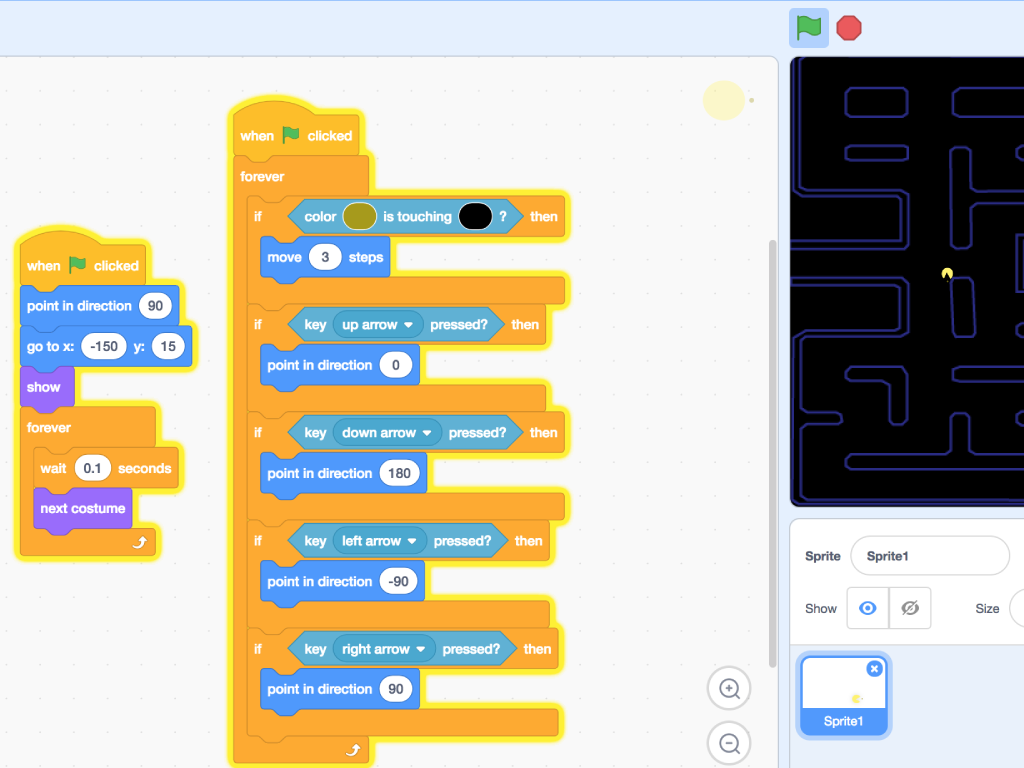

Step 5  Change direction

Let's next program the pacman sprite to be able to change direction.

Add the following blocks as shown in the image:

  • four more 'if ... then ... ' blocks
  • four 'key ... pressed?' blocks
  • four 'point in direction ... ' blocks

Step 6  Sprites for 'teleports'

  • In Pacman, there are 'teleports' at either end of the maze map.
  • Create another sprite, this time, using the rectangle tool to create a black rectangle.
  • Duplicate the rectangle sprite and move it on to the other side of the screen
  • Rename them 'leftTeleport' and 'rightTeleport'

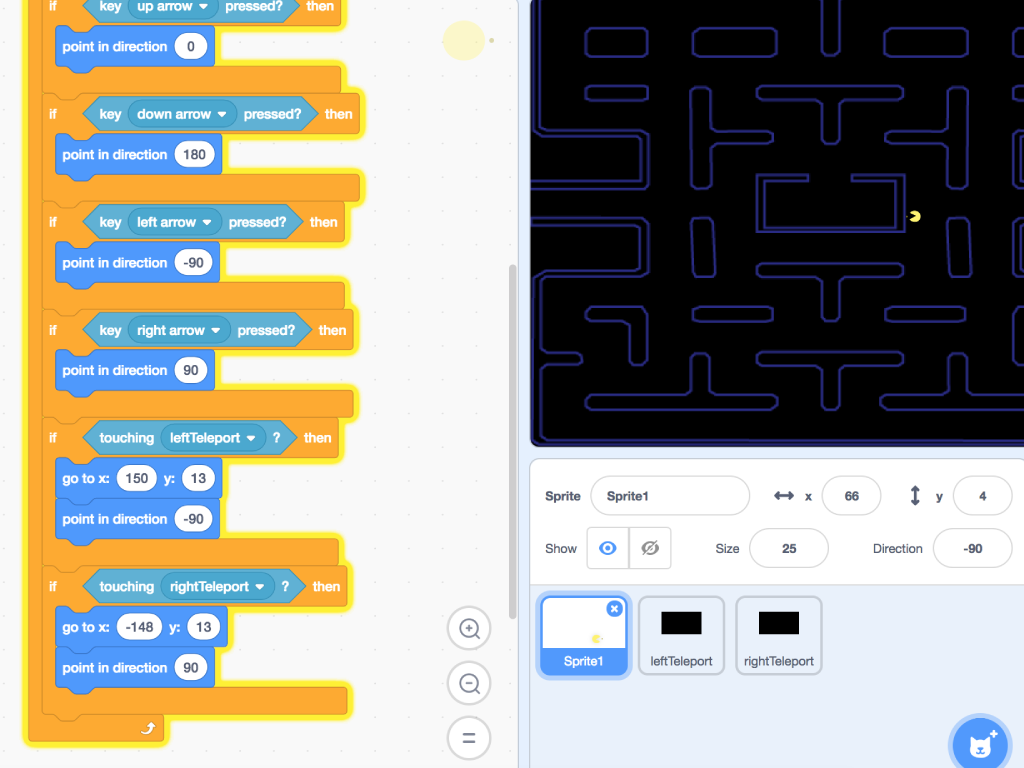

Step 7  Pacman to teleport

Now, let's make the Pacman teleport from that end where the first rectangle is, to the other end.

We'll add the following blocks:

  • Add two more 'if ... then' blocks
  • Add another two 'key ... pressed?' blocks
  • Then add two  'go to x: ... y: ...' blocks.
  • Arrange them like shown in the image, so that:
    •  The pacman sprite moves to x: 150 y: 13 when it touches the left teleporter.
    • Else, it will move to x: -148 y: 13 when it touches the right teleporter.

Step 8  Food

Next, create the food sprite for the pacman.

We've made a small orange circle sprite and named it 'food'.

Click on the 'food' sprite you've just created.

Then click on 'Code' tab.

Add the following blocks:

  • 'when green flag clicked' block
  • 'show' block
  • 'forever' block
  • 'if ... then ...' block
  • 'touching ... ' block
  • 'hide' block

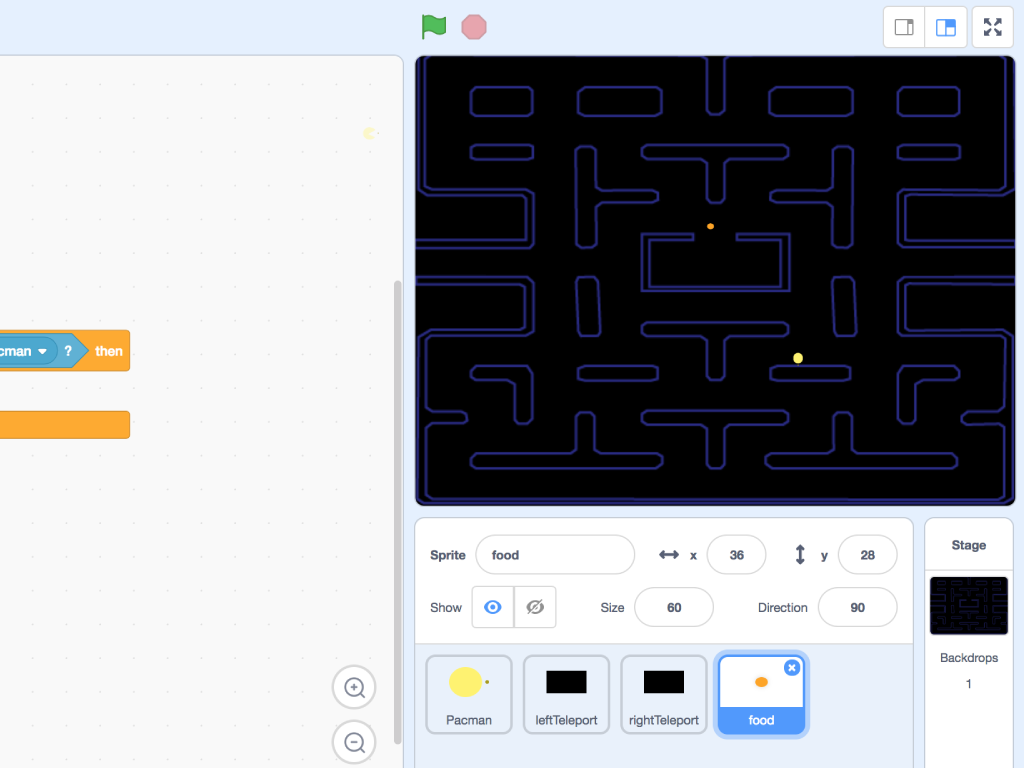

Finally, if the food sprite you created is too large, resize it so that it is smaller than the pacman sprite. Here, we have changed its size from '100' to '60'.

Step 9  Ghost sprites

  • The pacman game still needs some enemies. So create an 'enemy' sprite.
  • Rename the sprite, 'ghost'.
  • Change its starting point to 'x: 1 y: 9'

Step 10  Score

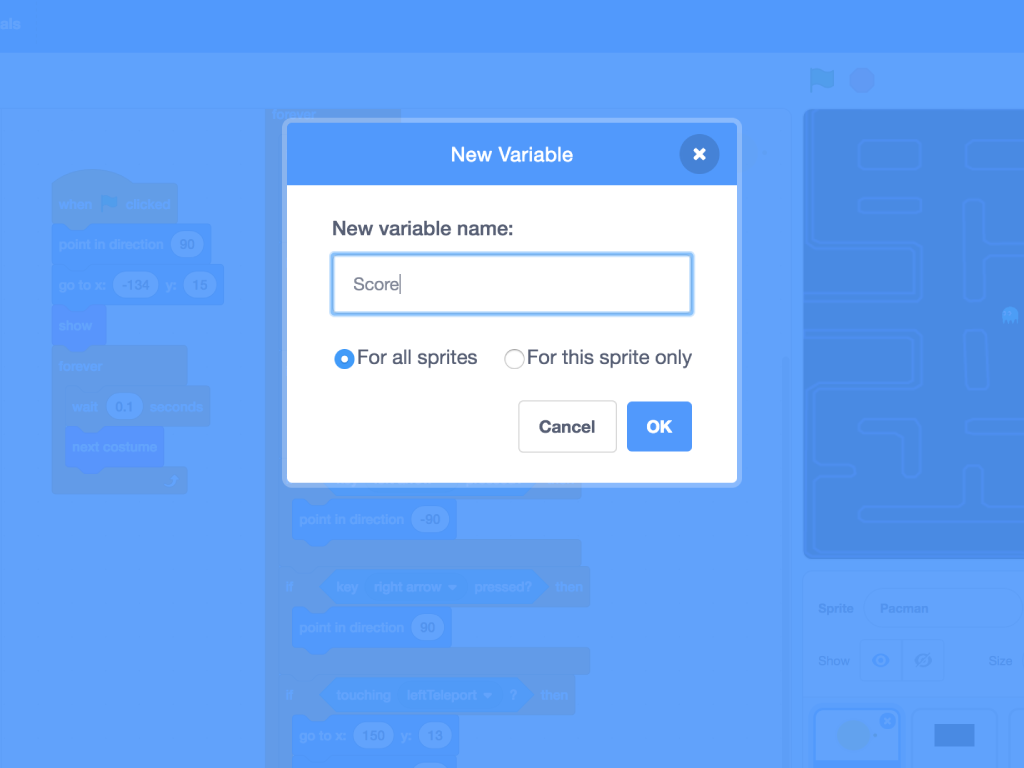

  • To keep score, we'll need to create a variable.
  • Click on 'Make a variable' button in the 'Variables' tab
  •  Check 'For all sprites' and then 'OK'.
  • Finally, name it, 'Score'.
  • To score points, pacman just needs to stuff himself with food. So go on and add a 'set 'Score' to '0', and then add a 'change ... by 1' block.

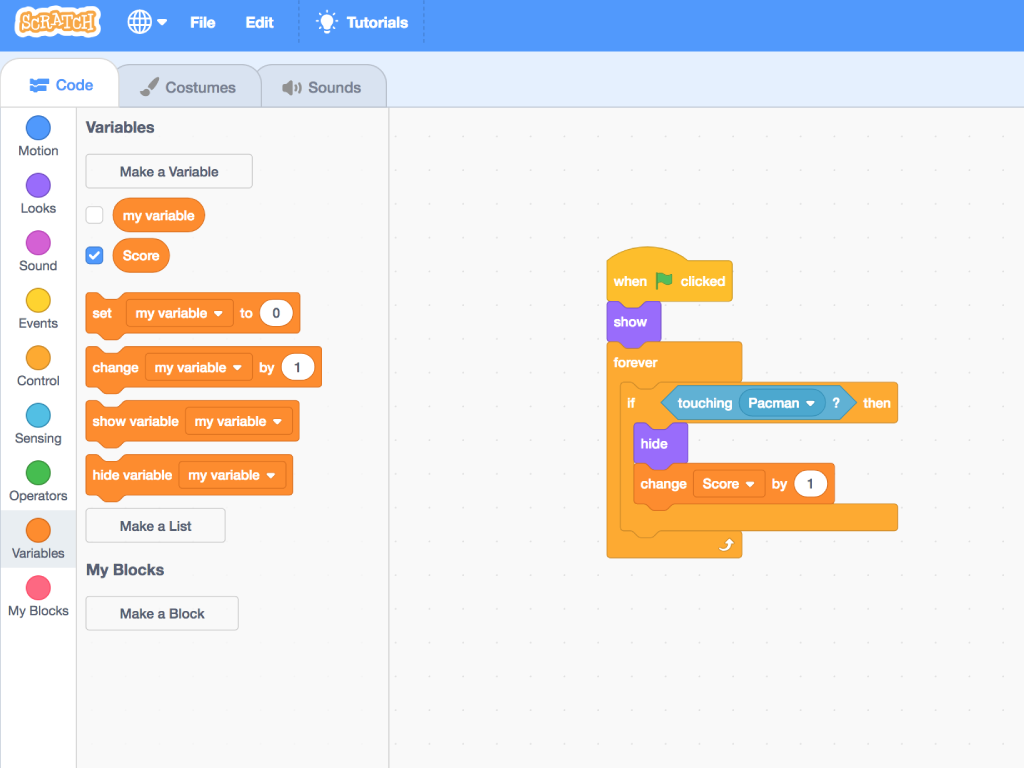

  • The blocks needed for the score to work:
    • Add 'when green flag clicked' block
    • 'show' block
    • 'forever' block
    • 'if ... then ...' block
    • 'touching ... ' block
    • 'hide' block
    • 'change ... by ... ' block
  • Arrange them as shown in the third image.
  • Right-click on the 'food' sprite and duplicate another 9 more.
  • Arrange the food sprites on the stage however you like.

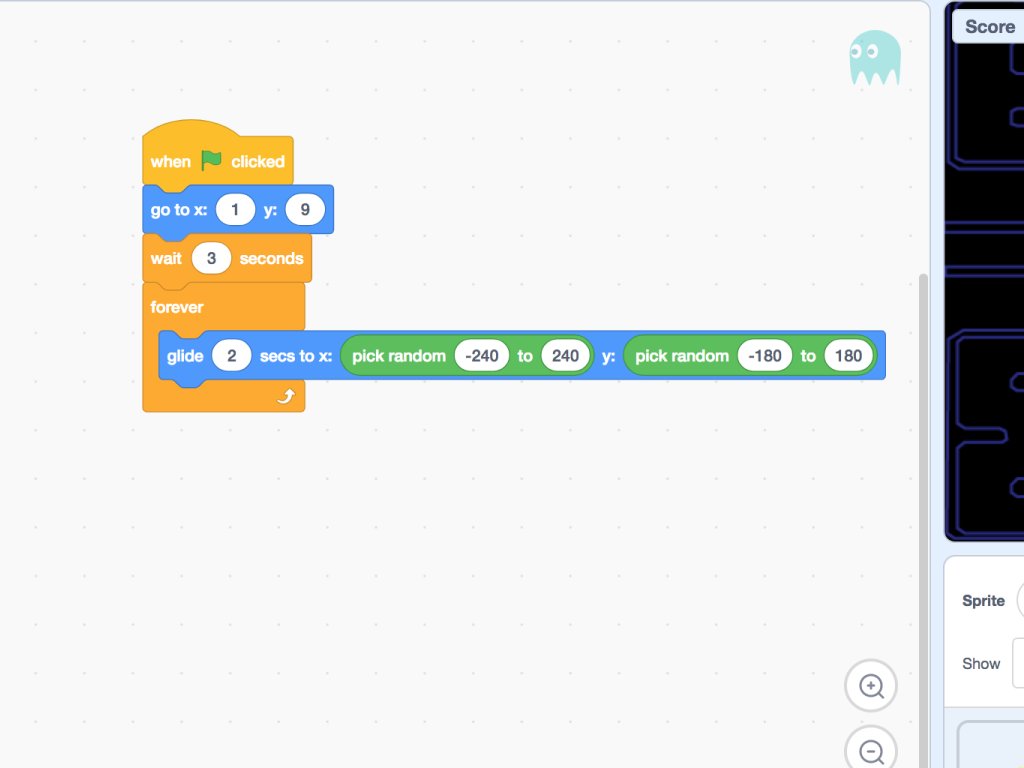

Step 11  Get the ghost moving

  • Click on the 'ghost' sprite before clicking on the 'Code' tab.
  • What we want to do is get the ghost to stay in the middle box, and on start it will stay there for 3 seconds.
  • Then it will glide in random directions and be able to pass through walls!
  • You will need a 'glide ... secs to x: ... y: ...' block.
  • Then get out a 'pick random ... to ... ' block.
  • You'll need two of these, one for the x-coordinates and one for the y-coordinates.
  • Change their range to '-240 to 240' and '-180 to 180' as shown.

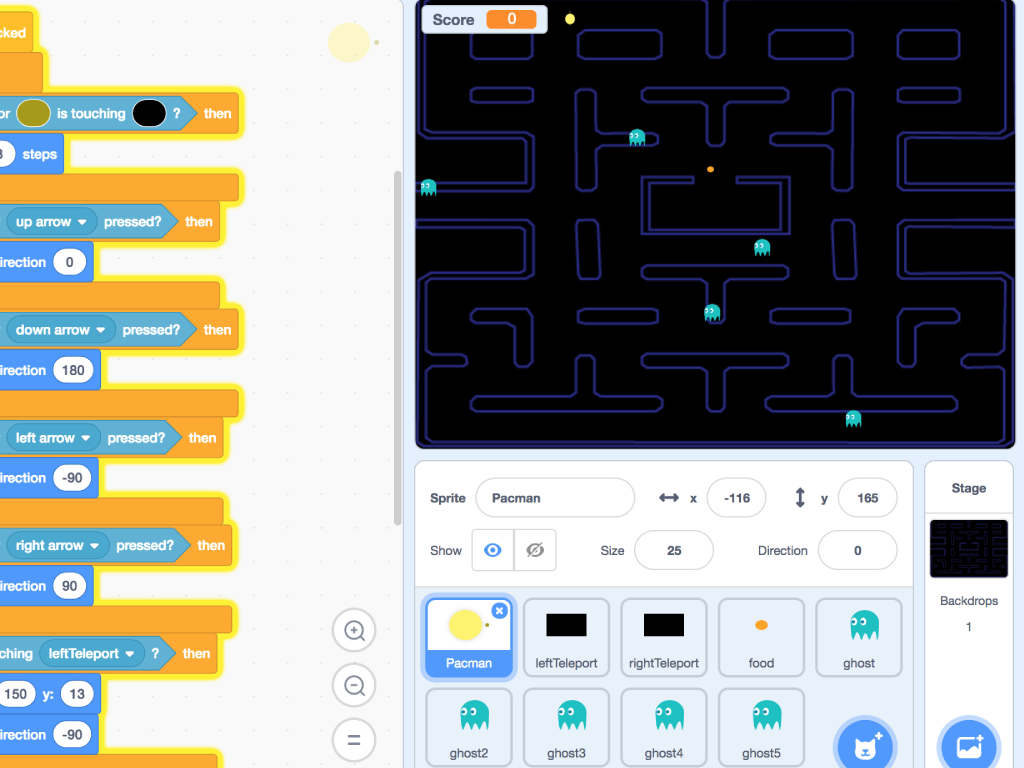

  • Finally, duplicate the ghost sprite for more of a challenge; We've made 9 more!

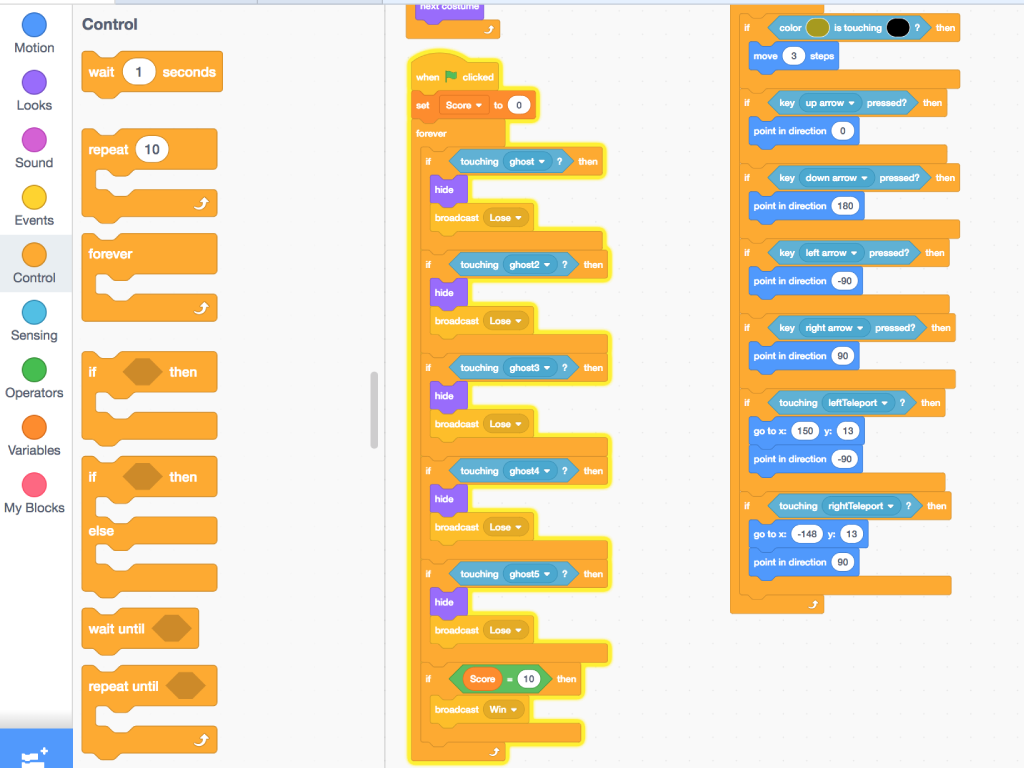

Step 12  Game over - Win or Lose

To win the game, Pacman needs to eat all the food. To avoid losing, Pacman will need to avoid touching any ghosts.

Click on Pacman and add these blocks:

  • 'When green flag clicked' block
  • 'set ... to ... ' block
  • 'forever' block
  • 'if ... then ...' block
  • 'hide' block
  • 'broadcast' block

Arrange as shown in the image.


Step 13  Sprites for 'win' and 'lose'

The final step before we can use the ShaKey!

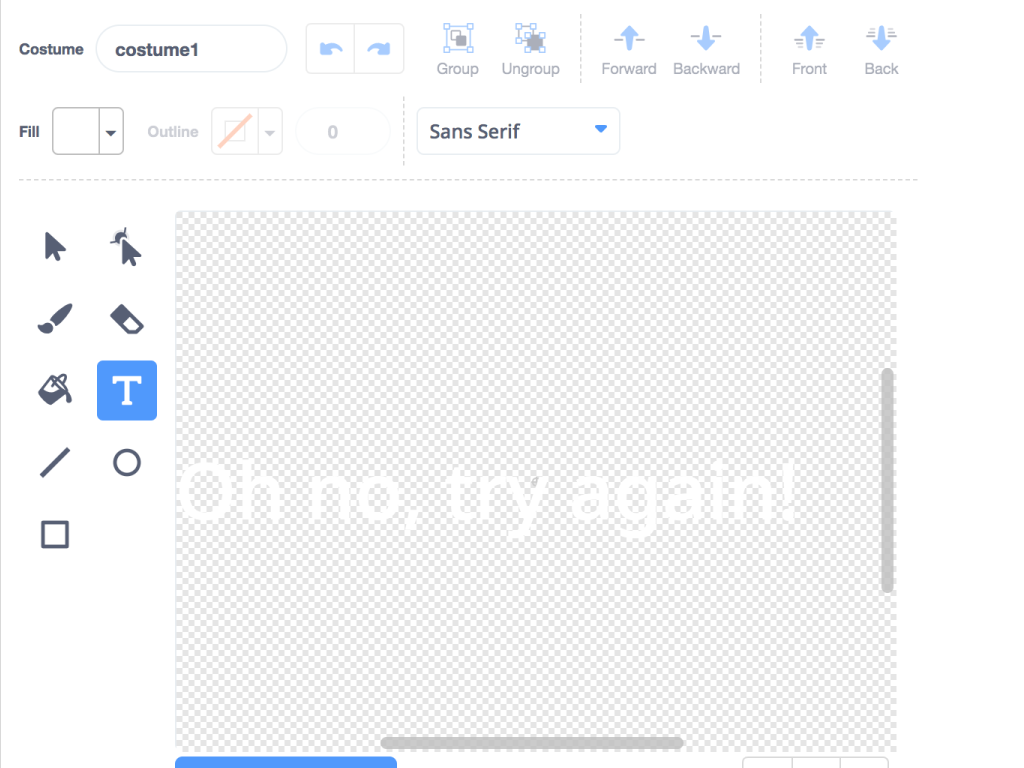

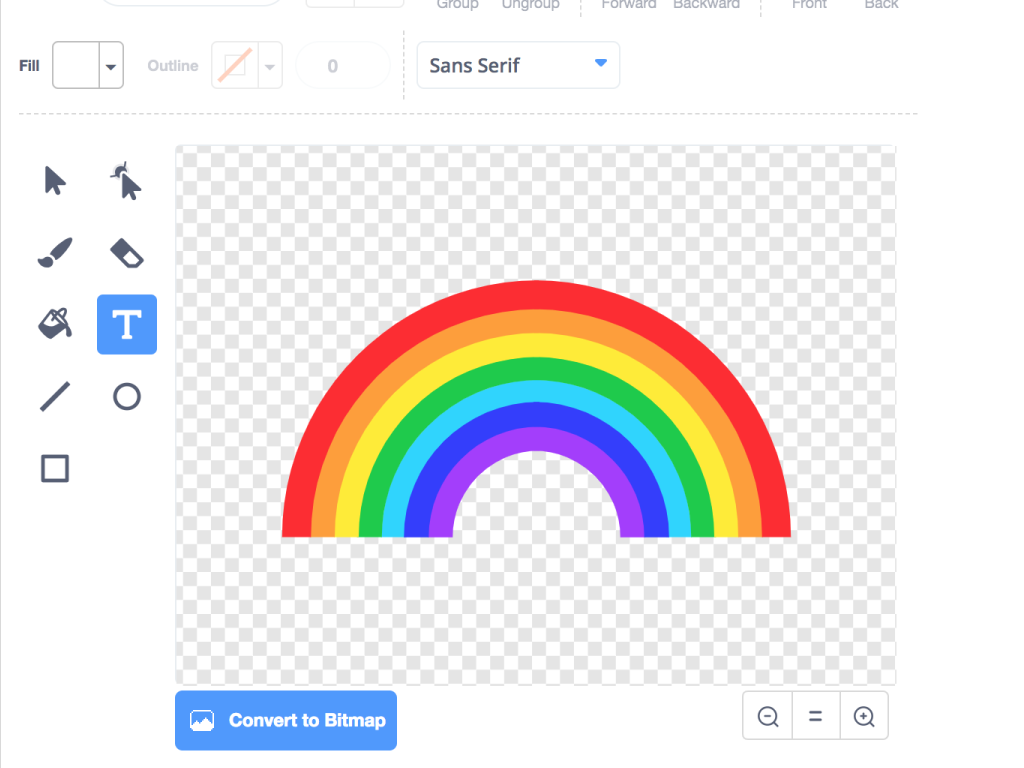

We will need to add two more sprites for the 'win' or 'lose' situation. Here, we have used a rainbow sprite for 'Win' and a 'Oh no.. try again!' text for 'Lose'.

Add these blocks for 'Win' and 'Lose' sprites shown in the third image.

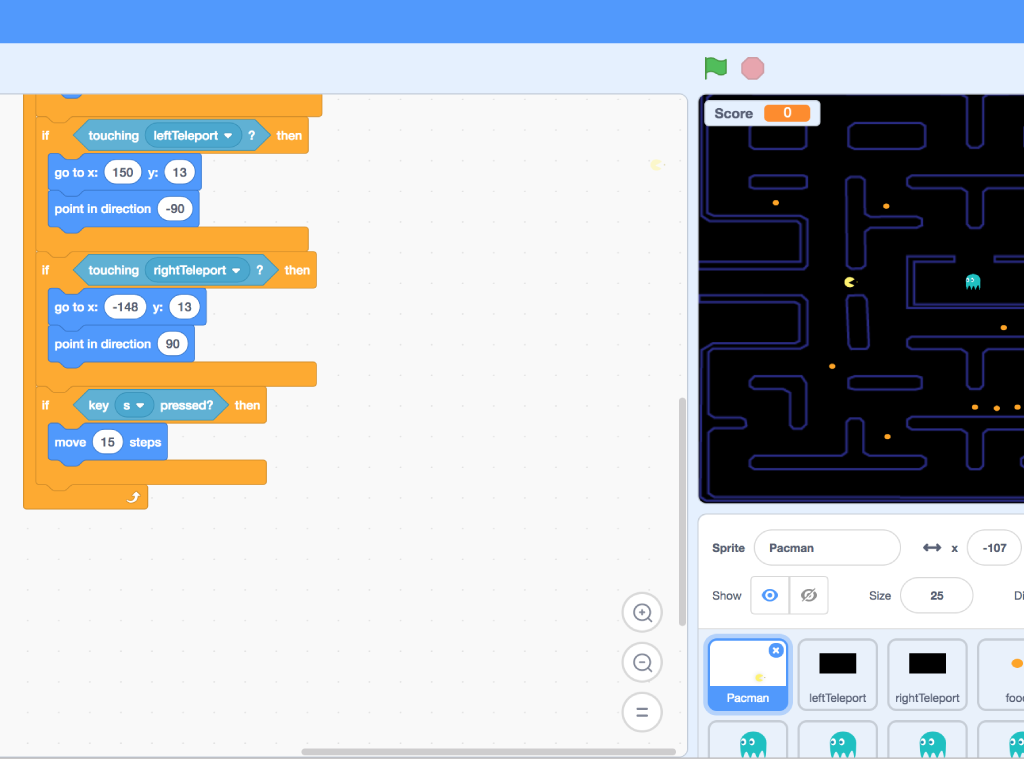

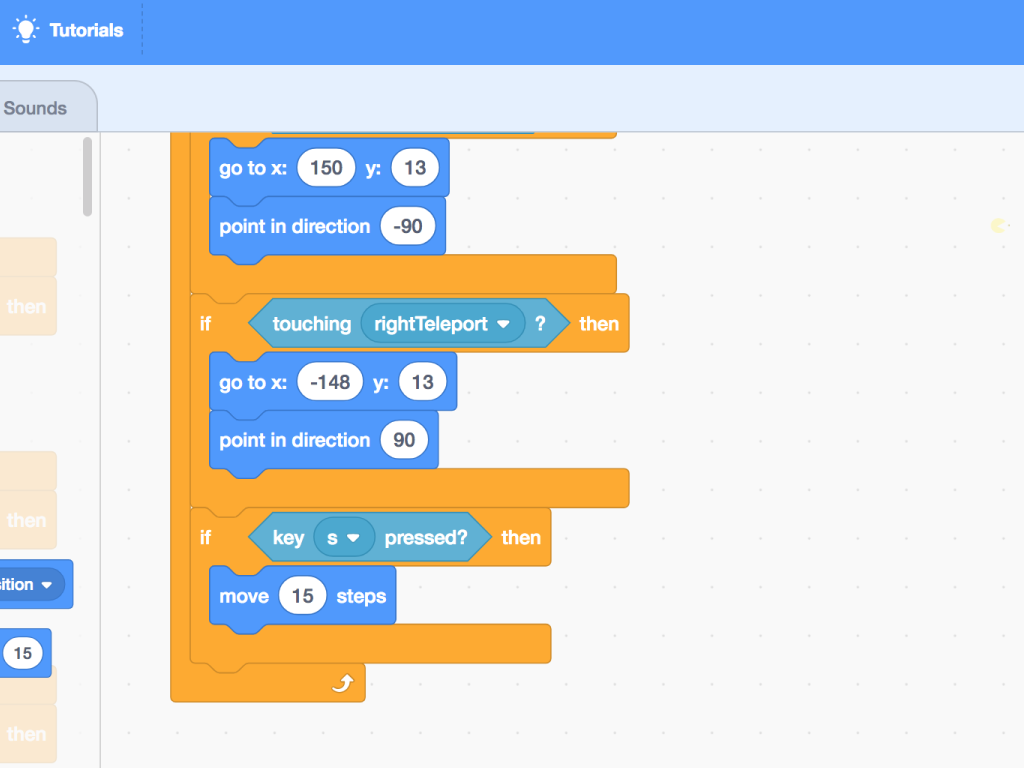

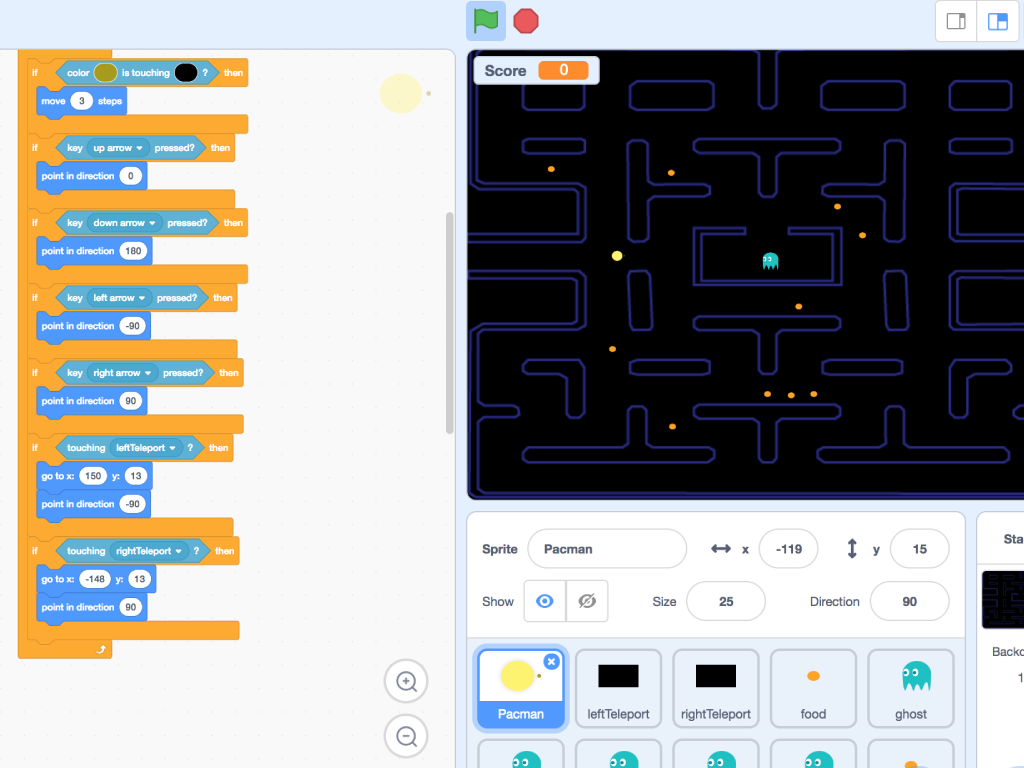

Step 14  Time to get out the ShaKey

Now, the game is ready to be played on your regular keyboard. But here's a more fun and cooler way - you can use the 'shake' feature on the ShaKey!

We'll make it so that when you shake the ShaKey, it will make Pacman move faster.

First click on the 'Pacman' sprite then add the following blocks:

  • 'if ... then ...' block
  • 'key ... pressed'
  • 'move ... steps' block

Connect the ShaKey to your computer via microUSB.

Download the complete Scratch code here: pacman-game-shakey-controller.sb3

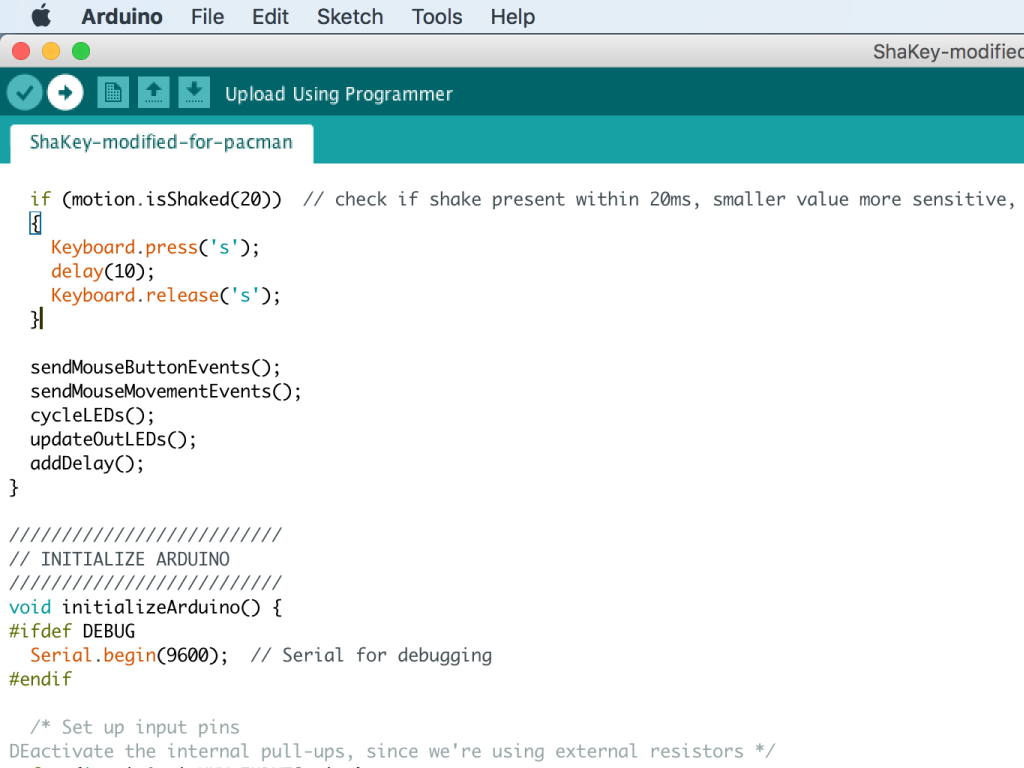

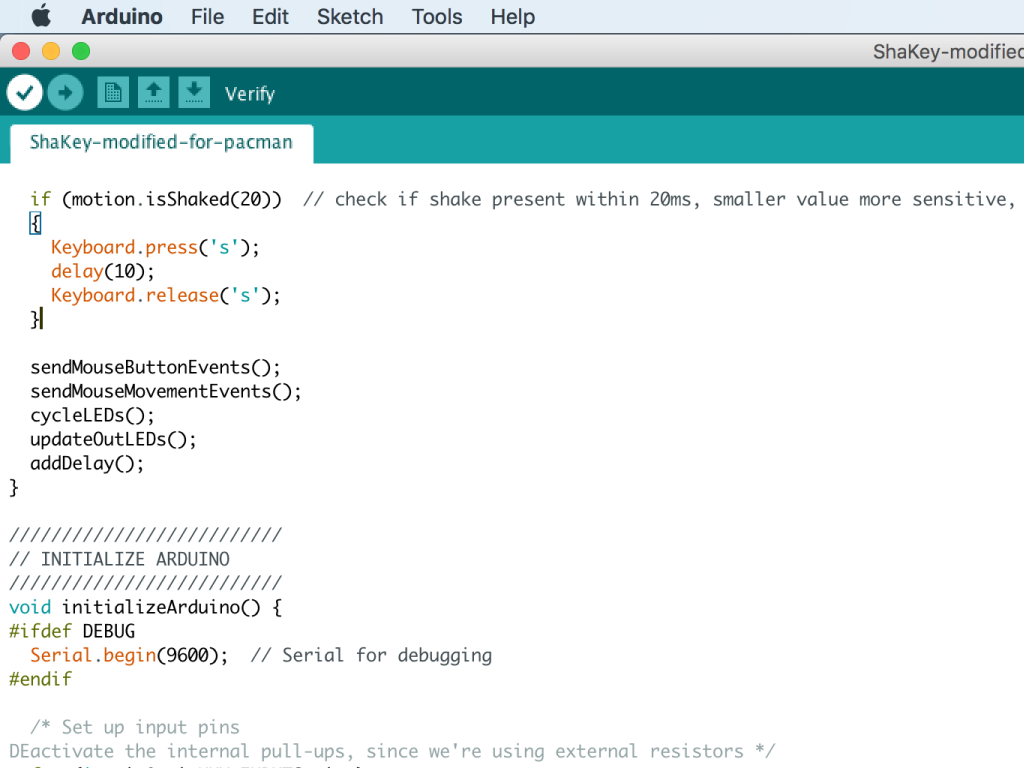

Step 15  Upload the Arduino sketch

You're ready to play!
