Meet the ShaKey

Difficulty
Easy
Steps
8

Meet the ShaKey, a two-sided circuit board that  not only acts as a keyboard or mouse, but it can help you connect everyday objects to your computer! It's simple to use, if you can plug in a Keyboard and Mouse to your computer, you can use the Shakey.

In this guide, you will learn about the ShaKey board and its various inputs, and write some code for it in Scratch. Then you will use alligator clips with it and turn play-doh into game controller buttons.

Complete this guide to get to know your ShaKey board!

Parts Used in This Guide

ShaKey Deluxe
LB-SHAKEY-DELUXE

Buy

Step 1  A First Look

Let's get to know the ShaKey ShaKey board!

There are eight inputs on the left: Up, Down, Left, Right, W, A, F, G

On the right-hand side the inputs are: Click, Space, Mouse-right, Mouse-left, Mouse-down, Mouse-up, Mouse right-click and Mouse left-click.

Flip it over as shown in the picture now. You will see the labels for the above inputs as well as the ATmega32U4. It can be programmed to emulate a USB keyboard or mouse in Scratch and the Arduino IDE. But more on that later.

You should also see the label 'Earth'.  just above the 10 holes on the bottom.

Step 2  Connect the ShaKey to computer

How can we use it? We'll now find out!

Plug in a microUSB cable into the microUSB port found on the ShaKey. This can be found on the top as shown in the picture.

When connected and powered up, you should see a red LED lighting up as shown in the picture.

Step 3  Program it with Scratch

Let's make it do stuff! We'll use Scratch, a programming language that's simple and easy to get started with using the ShaKey.

Open up the Scratch editor. We'll use the inputs to make the cat move.

  • Click on 'Events' tab, then drag and drop a 'when space key pressed' block to the middle panel.
  • Under 'Control' tab, get a 'if ... then ' block, drag and drop four of these.
  • Next, in 'Sensing', grab four 'key ... pressed?' blocks and place them in each 'if ... then' block.

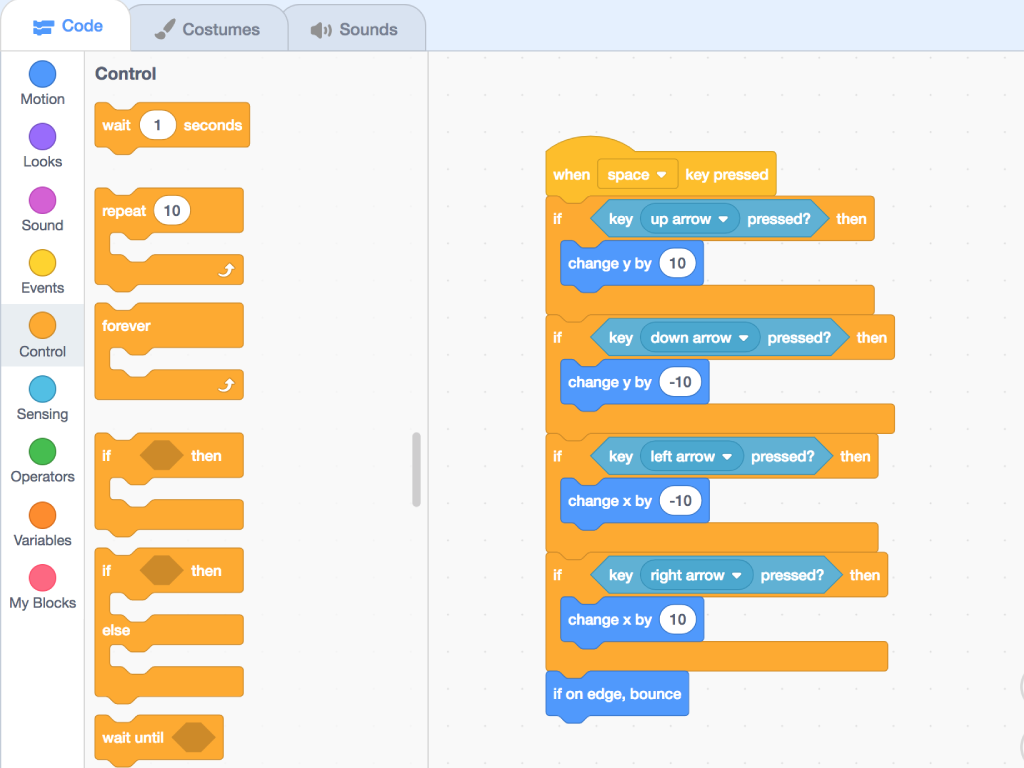

  • Change them so it detects 'up', 'down', 'left', and 'right' as shown in the picture
  • Back to the 'Motion' tab, and get a 'change y by ...' block. Get two of these.
  • Place one under the first if block and change it value to 10.
  • Place the other 'change y by ...' block under the second 'if' block. Change its value to -10.
  • Now for the last if block, grab two 'change x by ...' blocks and give the first a value of -10.
  • Give the second 'change x by ...' block a value of 10. Place it in the last if block.
  • Finally, grab a 'if on edge, bounce' block from 'Motion' tab. Place this under everything else.

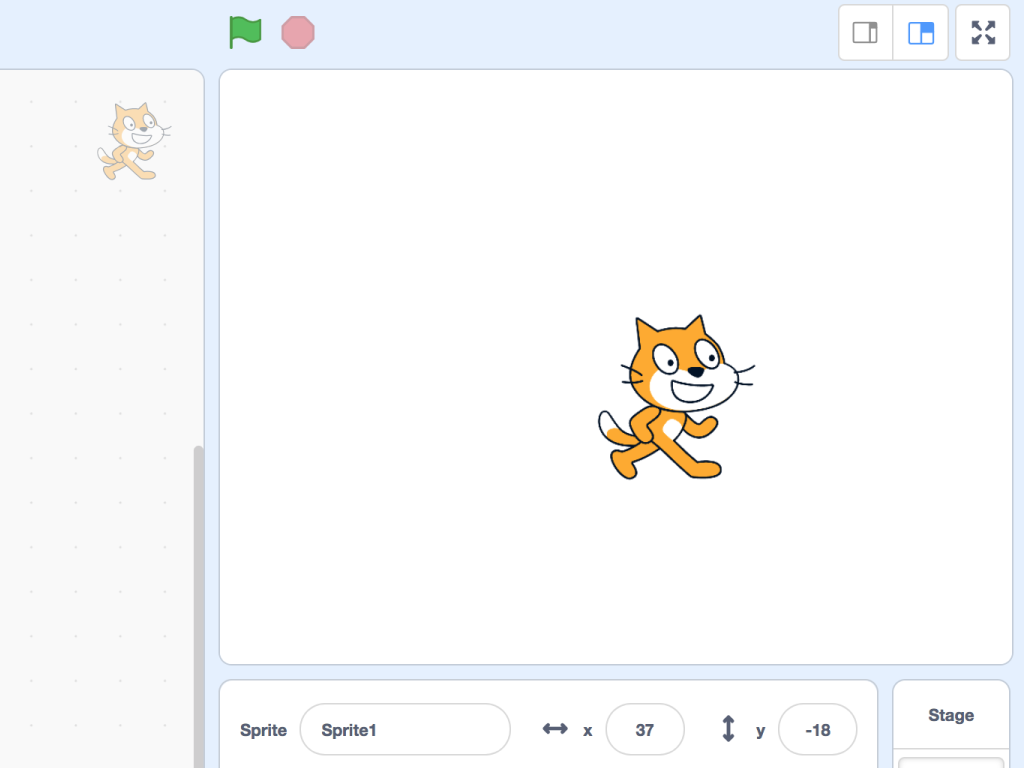

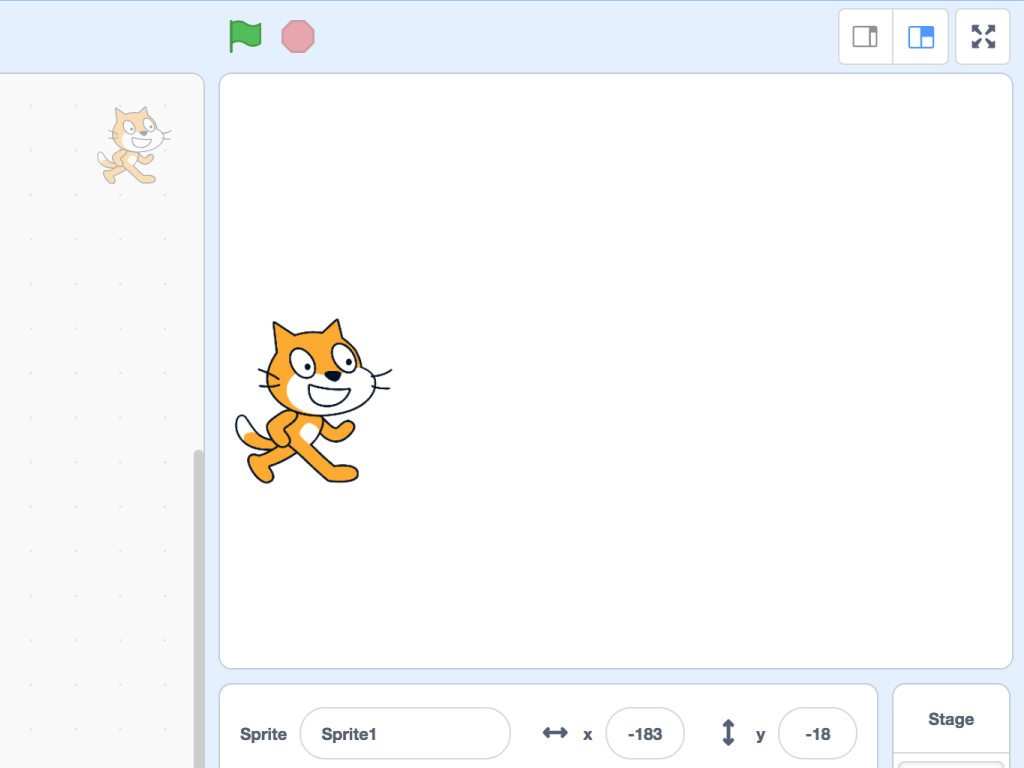

  • Try holding 'space'  and 'earth', while tapping  on  'up', 'down', 'left' or 'right'. The cat in the scratch editor should be moving!

It works just like a keyboard and mouse!

Step 4  Mouse inputs

We've programmed the inputs for 'up', 'down', 'left' and 'right'.

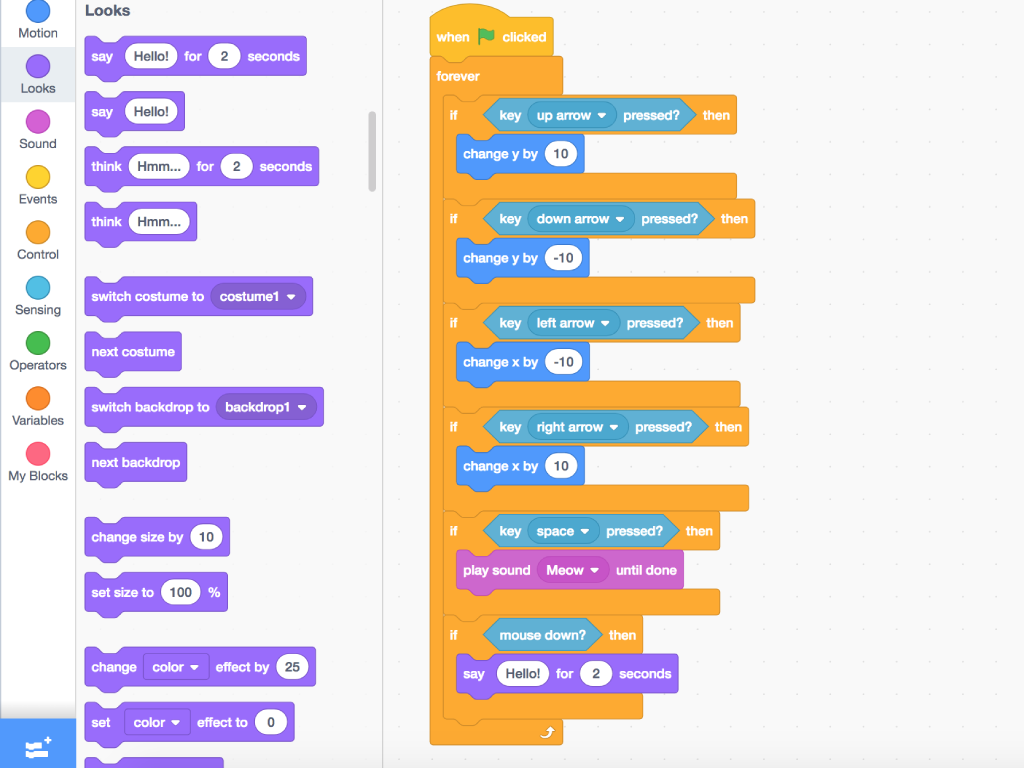

Now let's program the 'mouse' inputs, and while we're at it, make the scratch code better. This time, we'll get the cat meowing with the 'space' input!

  • Let's start with a new project. So click on File > New
  • From 'Events' tab, get a 'when green flag icon is clicked' block.
  • Next, get a 'forever' block from 'Control' tab
  • While on 'Control' tab, get an 'if .. then ..' block, and get six of these out
  • Next, click on 'Sensing' tab and grab 'key ... pressed?' blocks, you'll need five of those.
  • Arrange it as shown in the picture so that it detects 'up arrow', 'down arrow', 'left arrow',  'right 'arrow', and 'space'
  • Still on 'Sensing' tab, get a 'mouse down?' block and place this in the last 'if ... then' block
  • Now go to 'Motion' and grab 'change y by ..' block, you'll need two of these. Change their values to '10' and '-10'.
  • Place them in the if block for 'key up arrow pressed' and 'key down arrow pressed' as shown
  • To get the cat walking left and right, we'll use two 'change x by ...' blocks
  • Change their values to '-10' and '10' as shown in the picture
  • To get the cat meowing, we'll use the 'play sound Meow until done' block found in 'Sound' tab
  • Finally, we'll also get the cat to say hello when on 'mouse click'  (when you tap the 'Click' input on the ShaKey) So grab a 'say Hello for 2 seconds' block from the purple 'Looks' tab.

You can also download the completed Scratch code here: Meet the Shakey Project.sb3

 To use it:

  • In the Scratch editor, click on File > Load file from your computer
  • Select the file


Step 5  Connect alligator clips to ShaKey

What if you could use everyday objects like gummy bears or play-doh as a keyboard or mouse?

Using the ShaKey ShaKey, you can. Grab some alligator clips out!

Let's attach the ShaKey to alligator clips and play-doh.

Step 6  Make a game controller out of play-doh

Get out some play-doh and a piece of cardboard!

Create four play doh buttons for 'up', 'down', 'left' and 'right'

Create two play doh buttons for 'space' and 'mouse click'

Connect the alligator clips to the play doh buttons.


Step 7  Connect black alligator clip to a band

Finally, connect the black wire that is connected to 'Earth' on the ShaKey, to a band. Use one that you can wear around your wrist.

If you don't have a hair tie or plastic band, you can hold the alligator clip.

Tap the play-doh gamepad buttons, the scratch program will work as it did previously with just the ShaKey.

Step 8  Sensors

Yup, it works like a keyboard or mouse, and turns everyday things into input buttons so that it can be connected to the computer.

But that's not all.

The ShaKey also has sensors!

  • An accelerometer that can detect tilting
  • A temperature sensor to collect useful information on the environment
  • A gyroscope for detecting any knocks or bumps to the ShaKey

To use the ShaKey's sensors, use the Arduino IDE. Follow the steps outlined in our guide on How to Set up the Arduino IDE for ShaKey.  View the example sketches provided to learn how to use its sensors.
