Sockets/Connectors

SF-PRT-00116

A row of headers - break to fit. 40 pins that can be cut to any size. Used with custom PCBs or general custom headers.

SF-PRT-00553

A row of right angle male headers - break to fit. 40 pins that can be cut to any size. Used with custom PCBs or general custom headers.

SF-PRT-00115

Single row of 40-holes, female header. Can be cut to size with a pair of wire-cutters. Standard .1" spacing. We use them extensively in our SparkFun Original boards. They mate very well with break away male headers.

PL-1065

These 0.1″/2.54mm-pitch header strips are commonly used as low-cost connectors. The standard spacing allows use with solderless breadboards, perforated prototyping PCBs, female headers, and our premium and pre-crimped jumper wires. The single-row header strips can easily be ...

SF-PRT-10650

These 2x5 crimp connectors can be snapped onto 10-wire ribbon cable to make your own cable assemblies and keep your connections organized. Simply press the connector onto your ribbon cable, no soldering required, which makes it easy to add as many mid-cable connectors as you n...

SF-PRT-08084

Screw Terminals with 3.5mm pitch pins. Comes in 2 or 3 positions and have the really cool feature of slide-locking together to form any size you need (4, 5, up to 20 without problems). Rated up to 125V @ 6A. Terminal can accept 30 to 20AWG wire. 3.5mm/138mil pin pitch will not...

PL-967

These 0.1″/2.54mm-pitch header strips are commonly used as low-cost connectors. The standard spacing allows use with solderless breadboards, perforated prototyping PCBs, female headers, and our premium and pre-crimped jumper wires. The single-row header strips can easily be ...

SF-PRT-12791

This is a 2x23 pin male PTH header. This piece is in the common configuration for Beaglebone Black headers that can be broken apart to form smaller header formations. Each pin has a spacing of 0.1" in between each other.

SF-PRT-08272

This is a 10-pin socket with 2mm pitch that mates with the popular XBee radio from Digi. Use this small part to avoid having to solder your precious radio to a PCB. You’ll need two of these sockets to connect to all 20 pins on the XBee.

SF-PRT-08433

Screw Terminals with 5mm pitch pins. Comes in 2 or 3 positions and have the really cool feature of slide-locking together to form any size you need (4, 5, up to 20 without problems). Rated up to 300V @ 8A. Terminal can accept 26 to 14AWG wire. 5mm/197mil pin pitch will line up...

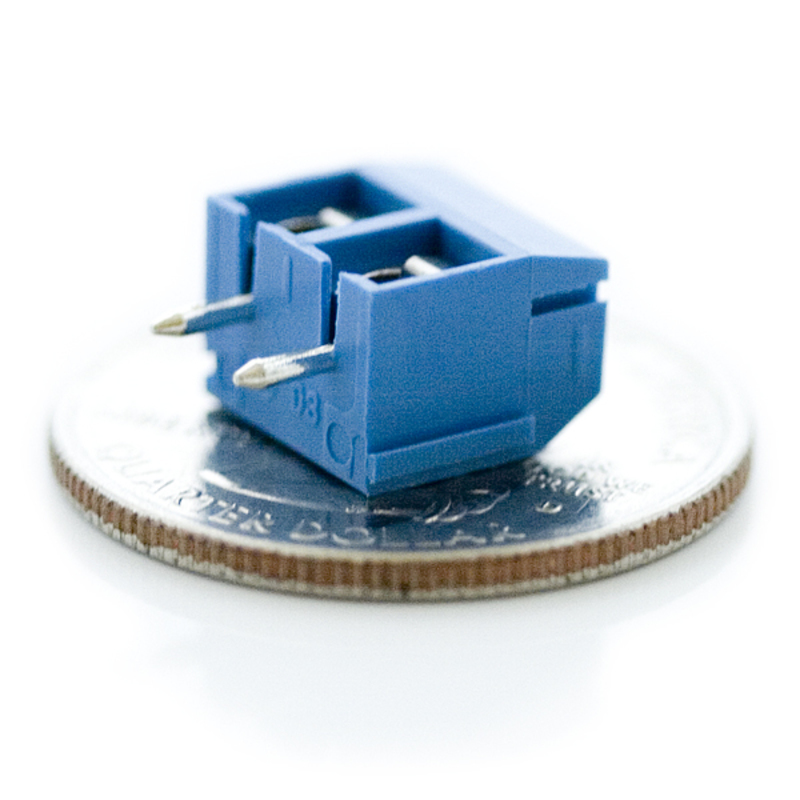

SF-PRT-08432

Screw Terminals with 5mm pitch pins. Comes in 2 or 3 positions and have the really cool feature of slide-locking together to form any size you need (4, 5, up to 20 without problems). Rated up to 300V @ 8A. Terminal can accept 26 to 14AWG wire. 5mm/197mil pin pitch will line up...

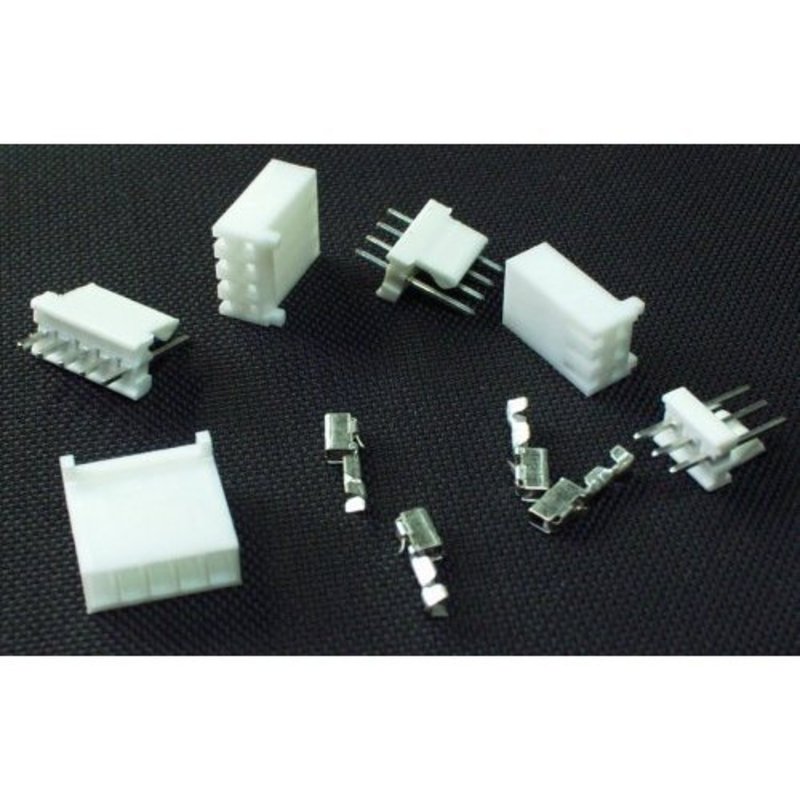

SF-PRT-08232

Polarized connectors and headers for your perf board/PCB projects. Use these connectors for power connections or any sensor/general connection to prevent users from connecting the peripheral incorrectly or reversed.

SF-PRT-09011

USB Type ‘A’ Female SMD connector. For use with any PCB that will be used with a Type A to Type A USB cable. Designed to mount to the UBW32.

SF-PRT-00587

USB Type ‘Mini-B’ Female SMD connector. This is a 5-pin Mini-B surface mount connector commonly found in MP3 players, media/disk readers, USB hubs, pretty much anything small and USB.

PL-1025

Overview

PL-1031

Overview

PL-1027

Overview

PL-1017

Overview

SF-PRT-08233

Polarized connectors and headers for your perf board/PCB projects. Use these connectors for power connections or any sensor/general connection to prevent users from connecting the peripheral incorrectly or reversed.

LB-LR0382

2.54mm 4 Positions 8Pin Red DIP Switch

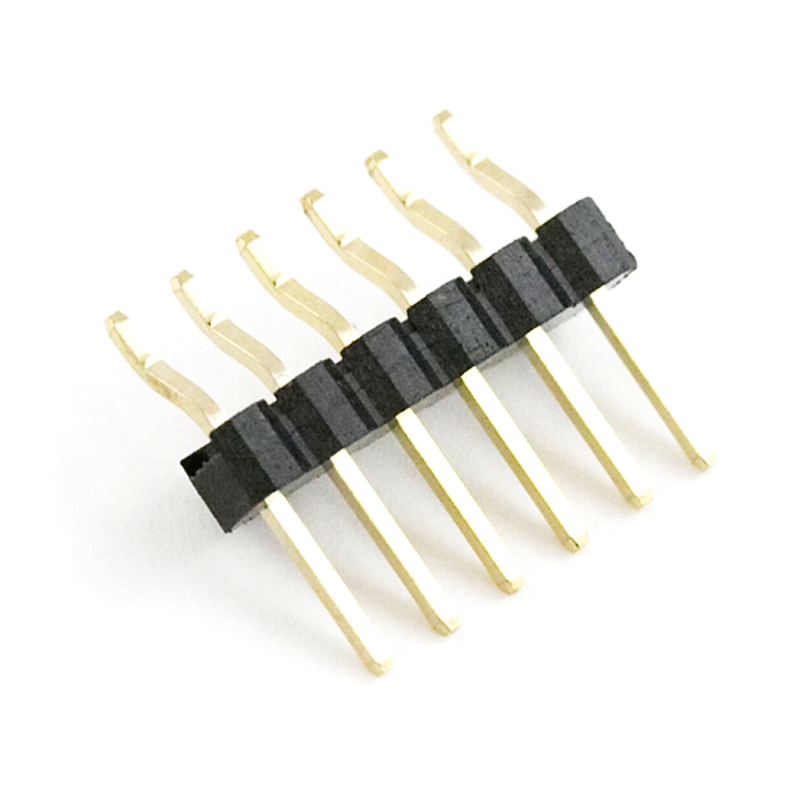

SF-PRT-09015

This is a SMD 6 pin right angle male header. We use this header on our LilyPad Main Board.

SF-PRT-08231

Polarized connectors and headers for your perf board/PCB projects. Use these connectors for power connections or any sensor/general connection to prevent users from connecting the peripheral incorrectly or reversed.

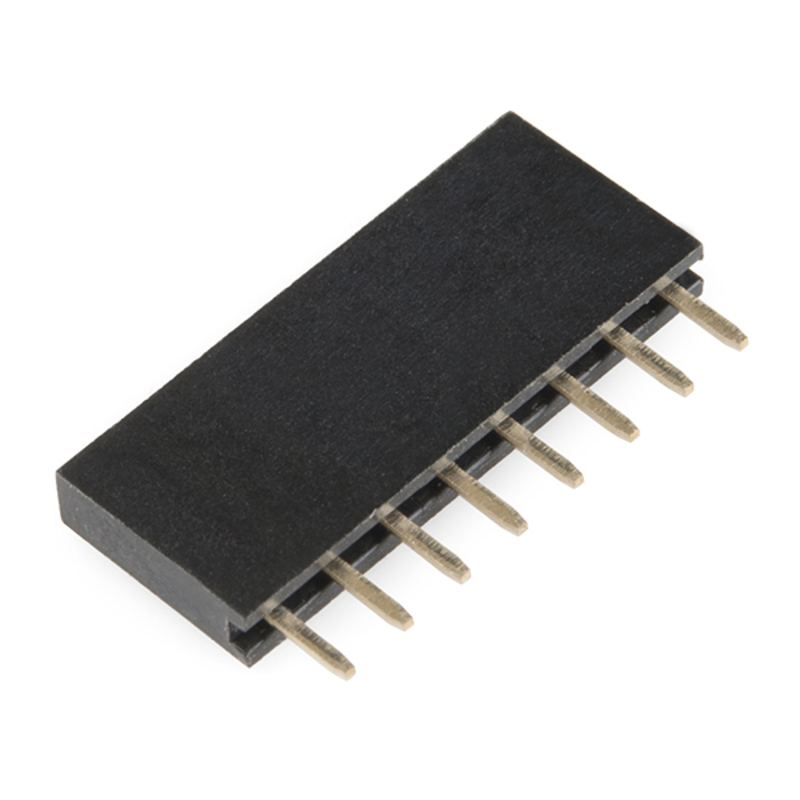

SF-PRT-11895

These are standard 0.1" spaced header pins that can be through-hole mounted. This header connects perfectly with most 8-pin male headers.

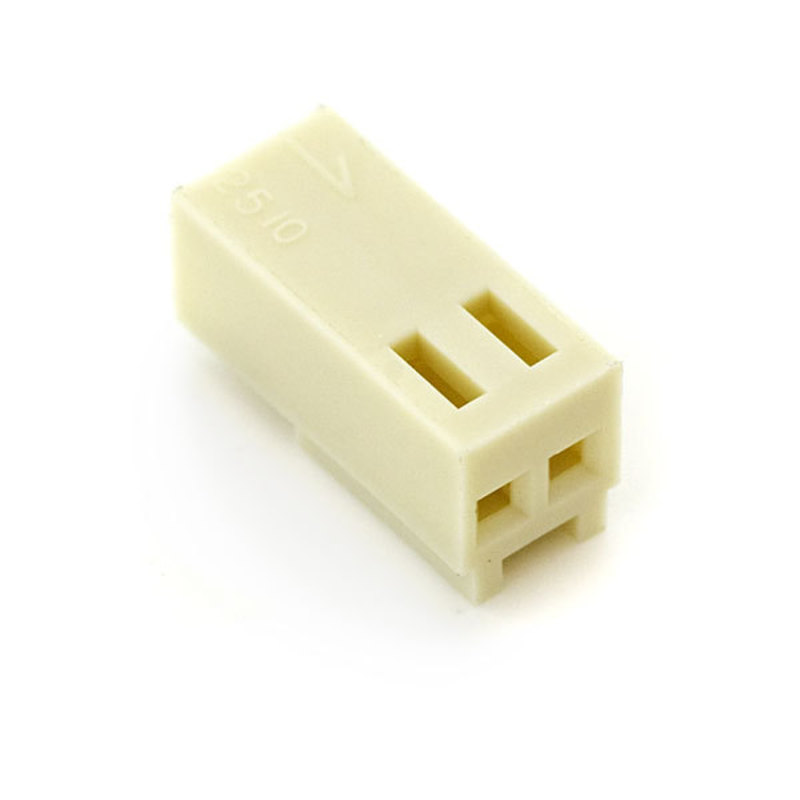

SF-PRT-08095

Polarized connectors and headers for your perf board/PCB projects. Use these connectors for power connections or any sensor/general connection to prevent users from connecting the peripheral incorrectly or reversed.

PL-1032

Overview

PL-1038

Overview

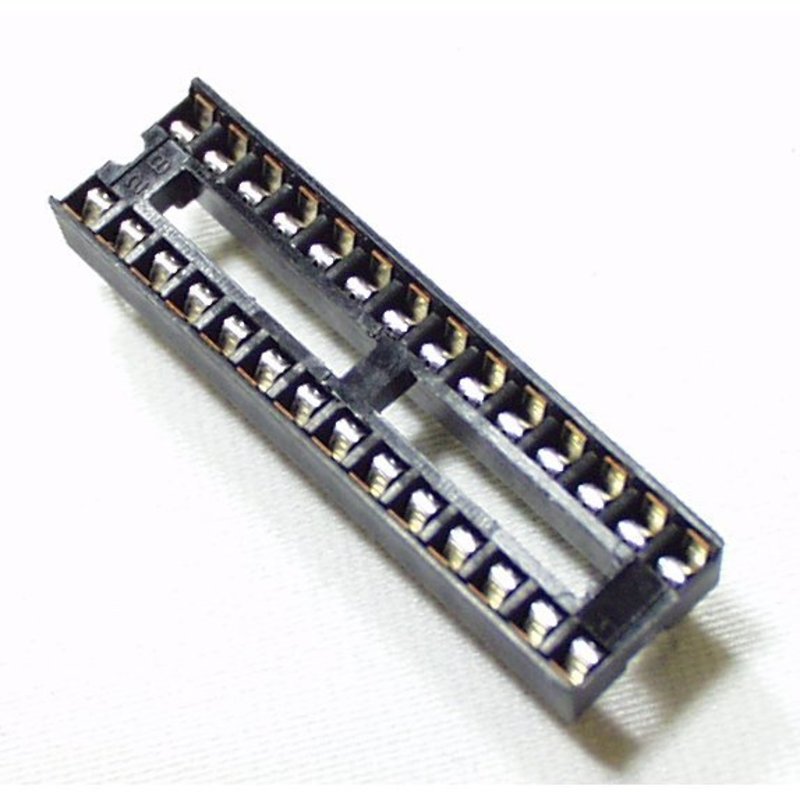

SF-PRT-07942

Dip sockets for all your prototyping needs. If you’ve ever had to de-solder a dip part from a circuit board, you know how valuable these are! Number of pins include: 8, 14, 16, 18, 28, and 40.

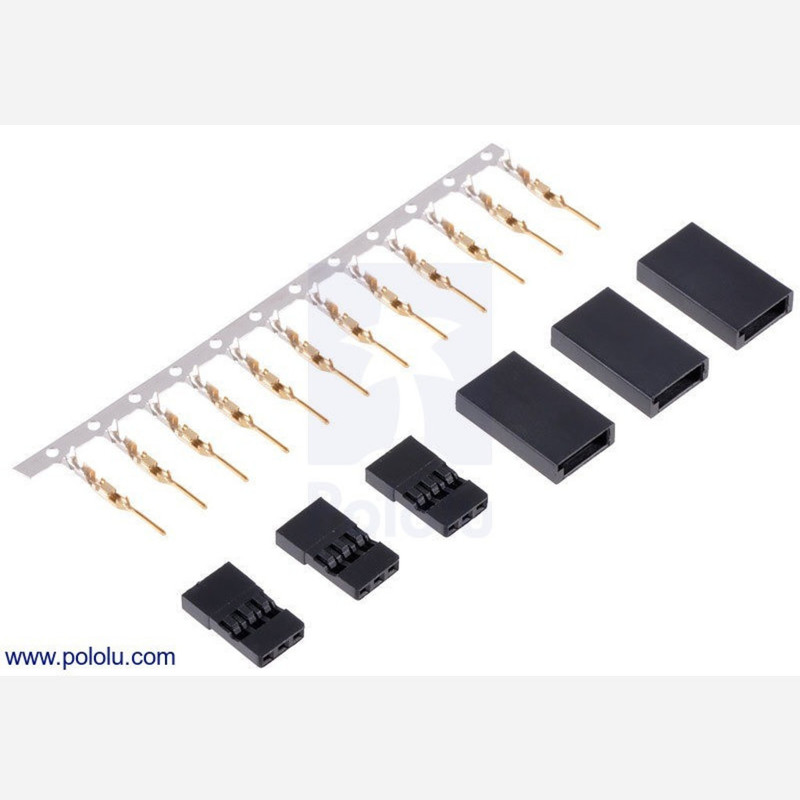

PL-1927

This Futaba J connector has a 0.1" pin spacing and mates with the female connectors found on many Futaba servos. It is keyed to enforce proper cable orientation when used with a corresponding female Futaba J connector, and it is also compatible with female JR connectors, whic...

PL-1015

Overview
