LCDs & Displays

MB-P3050001

This module can display geometric figures and characters. You can send commands through the serial port to display.

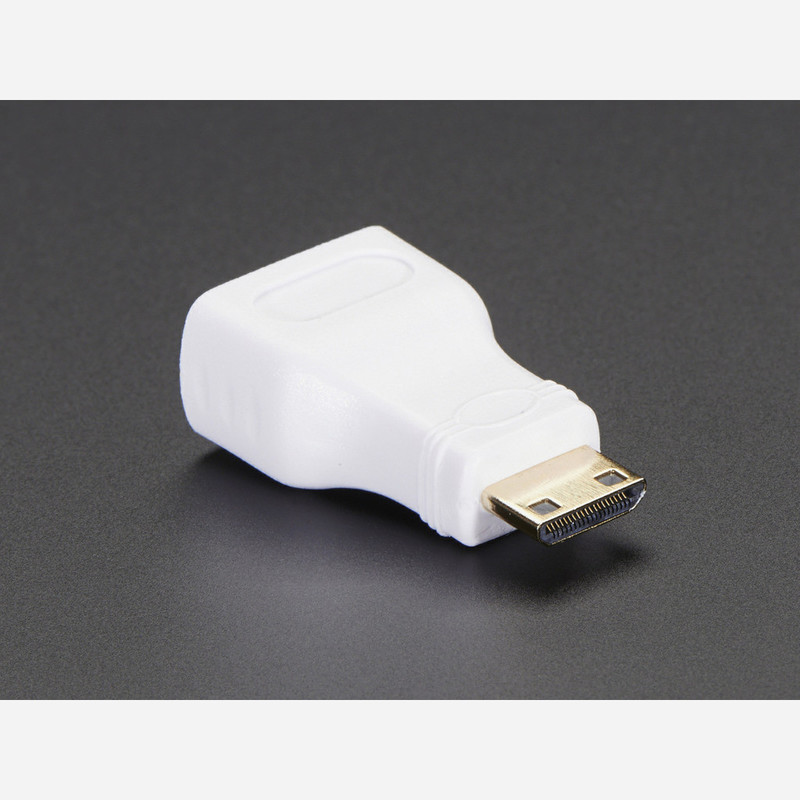

AF-2819

What an adorable little pug! Sorry - plug! What an adorable mini HDMI to HDMI plug.  We find this plug adapter really helpful.  It's a great way to convert any mini HDMI plug to a normal HDMI plug and...that's about it! Now you can use any of your classic HDMI cables.

DF-DFR0009

This is a very popular LCD Keypad shield for Arduino and other variants. It includes a 2x16 LCD display and 6 momentary push buttons. Pins 4, 5, 6, 7, 8, 9 and 10 are used to interface with the LCD. Just one Analog Pin 0 is used to read the five pushbuttons. The LCD shield sup...

SF-LCD-09568

This is the latest evolution of our serial LCD. Included on a single board is a 20x4 LCD and an embedded circuit based around a PIC 16F88. The on-board PIC takes a TTL serial input and prints the characters it receives onto the LCD. The installed firmware also allows for a num...

AF-1934

Make a lovely video setup with a 7" screen at 800x480 resolution. For this model, we tried to get an inexpensive 800x480 display that was still high quality and would be good for embedded computing usage. The visible display measures 7" diagonal and is a 'raw TTL' display, the...

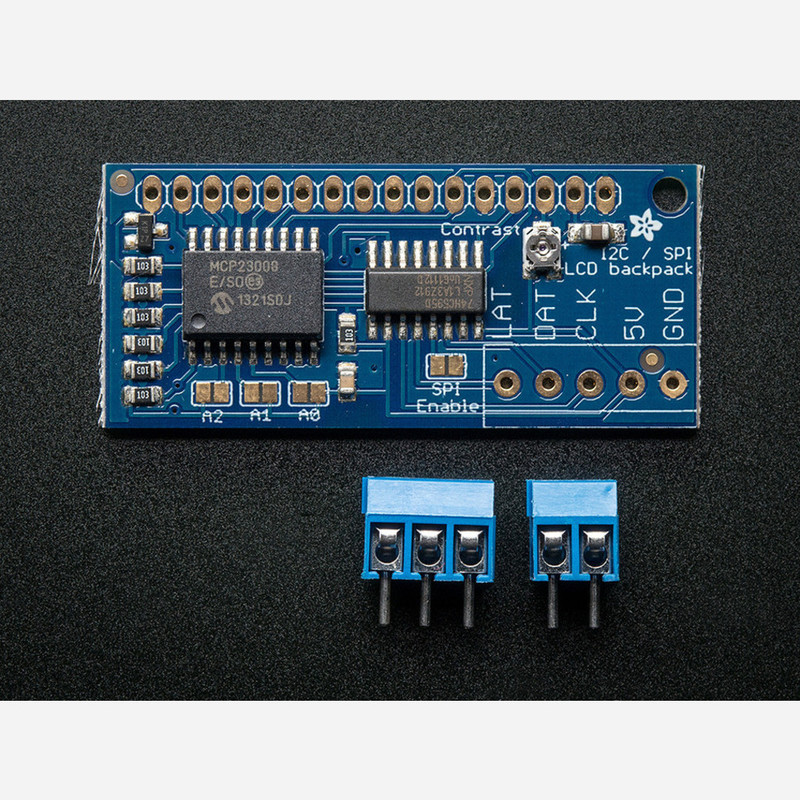

AF-292

LCD backpacks reduce the number of pins needed to connect to an LCD. LCDs are a fun and easy way to have your microcontroller project talk back to you. Character LCDs are common, and easy to get, available in tons of colors and sizes. We've written tutorials on using character...

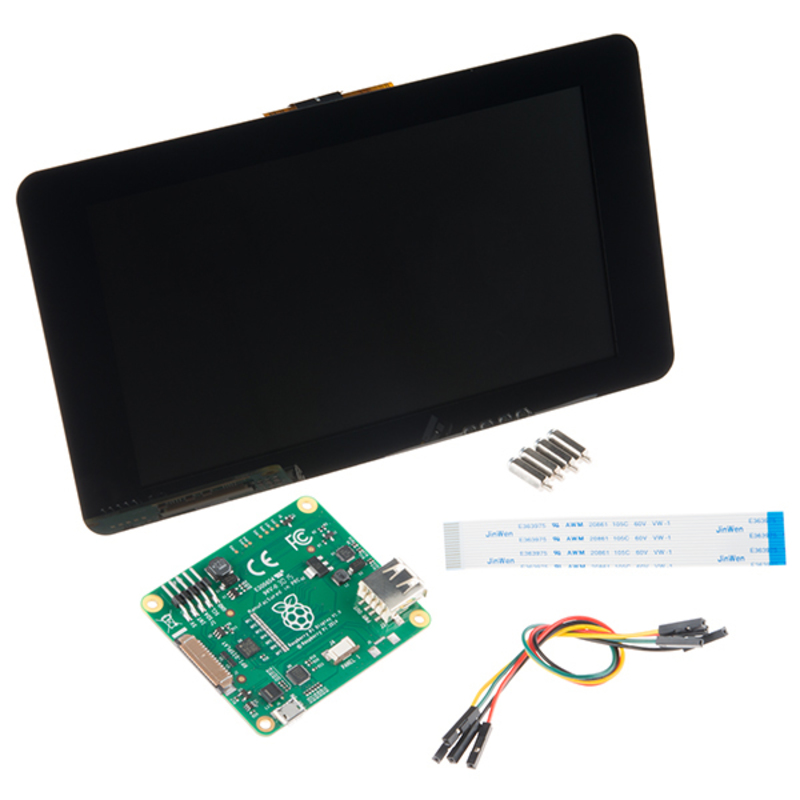

SF-LCD-13733

This 7" Raspberry Pi Touchscreen LCD provides you with the ability to create a standalone device that can be utilized as a custom tablet or an all-in-one interactive interface for a future project using your Raspberry Pi 3. Each LCD features a full color 800 x 480 capacitive t...

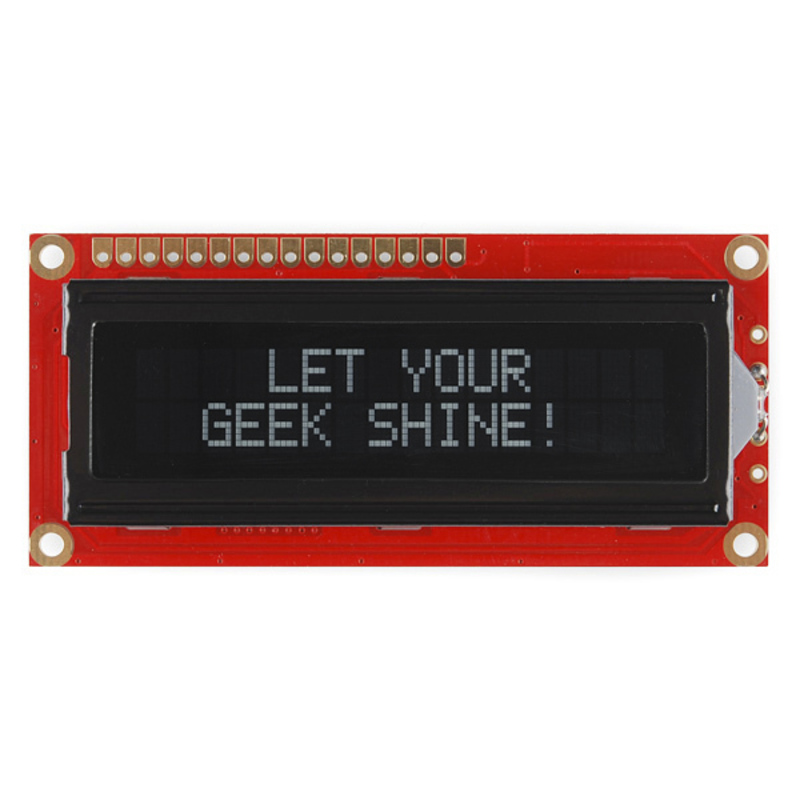

SF-LCD-00709

This is a basic 16 character by 2 line display with a snazzy black background with white characters. Utilizes the extremely common HD44780 parallel interface chipset (datasheet). Interface code is freely available. You will need ~11 general I/O pins to interface to this LCD sc...

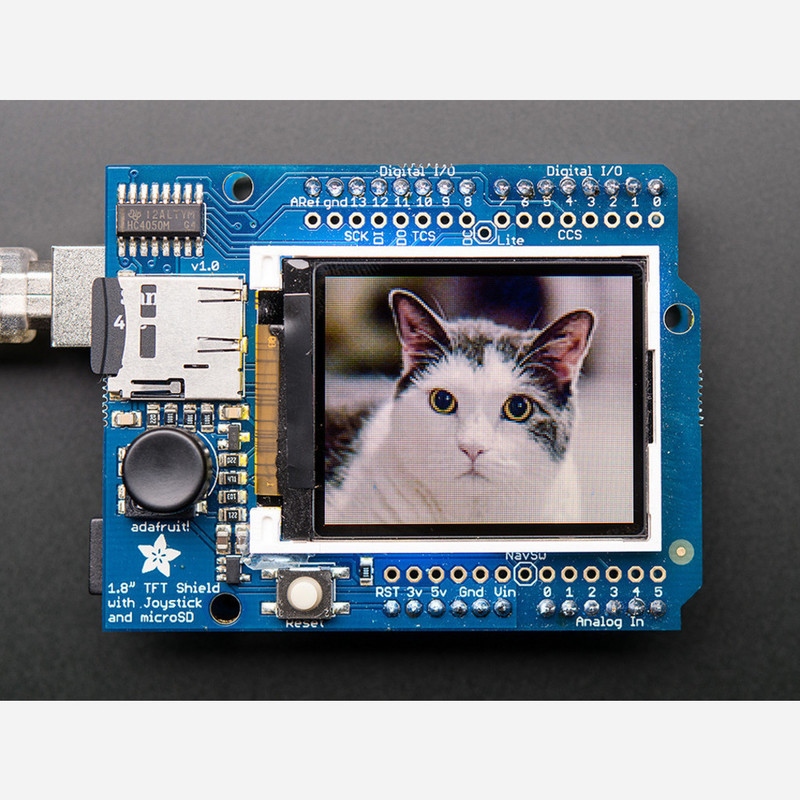

AF-802

This lovely little shield is the best way to add a small, colorful and bright display to any project.

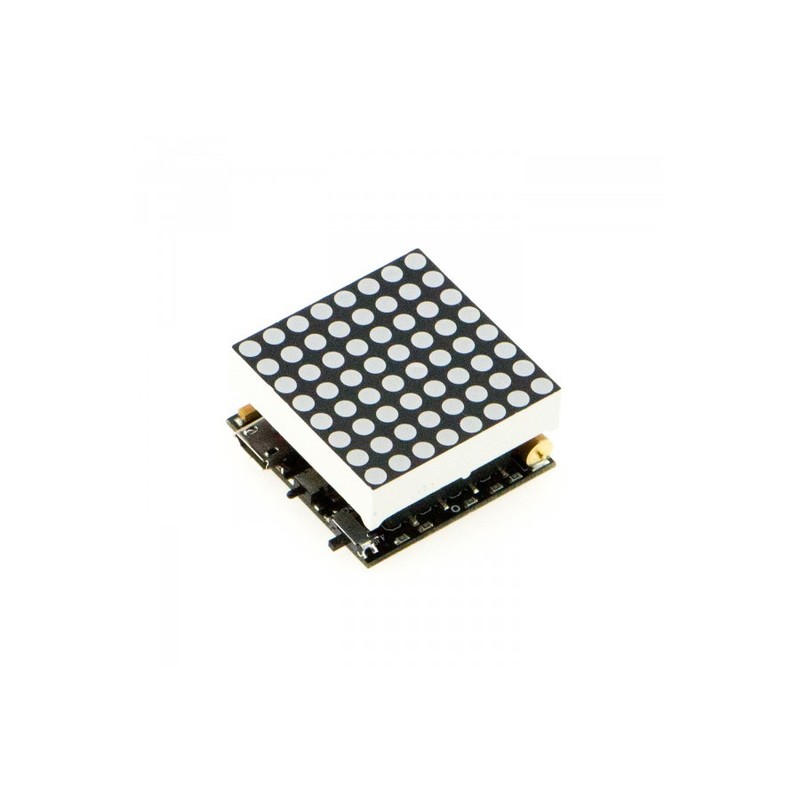

DF-DFR0286

To shy to confess? A beating heart might help you out. Express it. Display it, with this tiny, portable, magic LED matrix!

DF-DFR0369

INTRODUCTION

SF-LCD-11742

Most widgets could benefit from a shiny touchscreen interface.

SF-LCD-13631

This Nintendo DS Screen Kit joins two of our more unique products together to provide you with an easy means to equip your next project with touchscreen functionality.

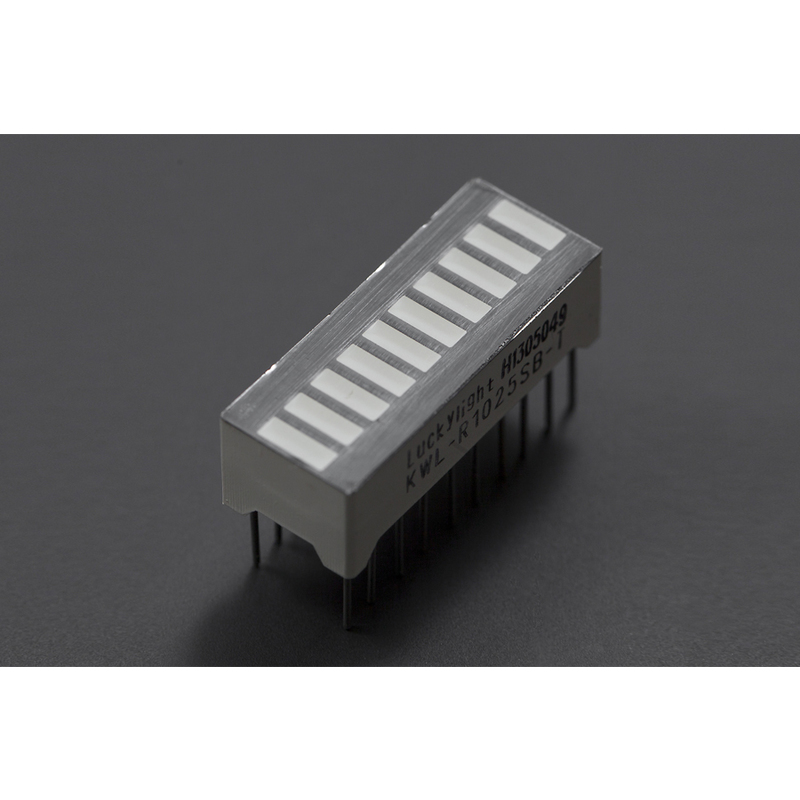

DF-FIT0188

These 10 segment bar graph LEDs have many uses. With a compact footprint, and a simple hookup, they are easy for prototyping or finished products. Essentially, they are 10 individual red LEDs housed together.

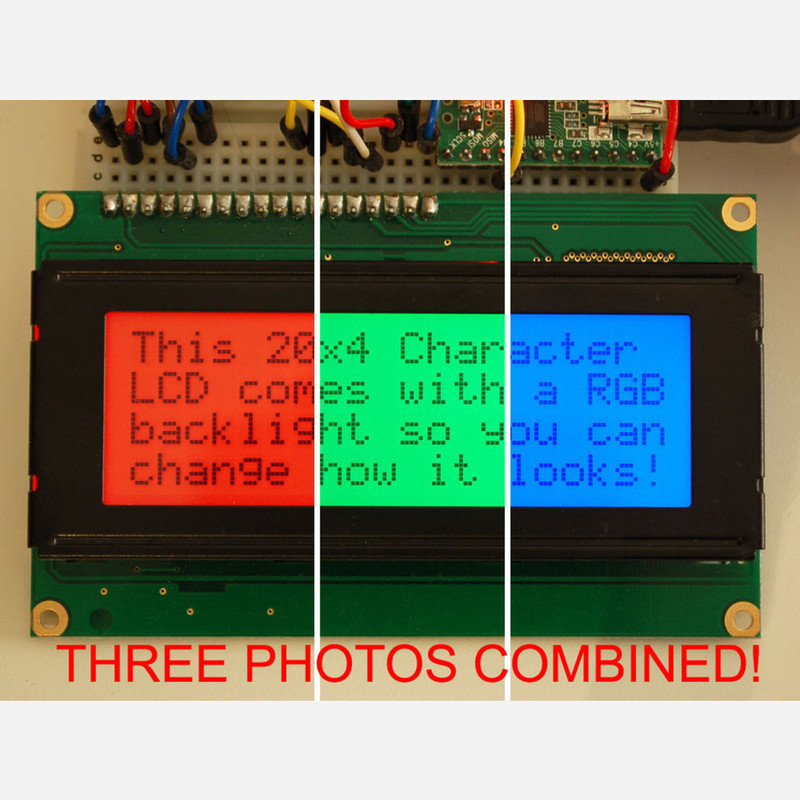

AF-499

This is a fancy upgrade to standard 20x4 LCDs, instead of just having blue and white, or red and black, this LCD has black characters on a full color RGB background! That means you can change the display background color to anything you want - red, green, blue, pink, white, pu...

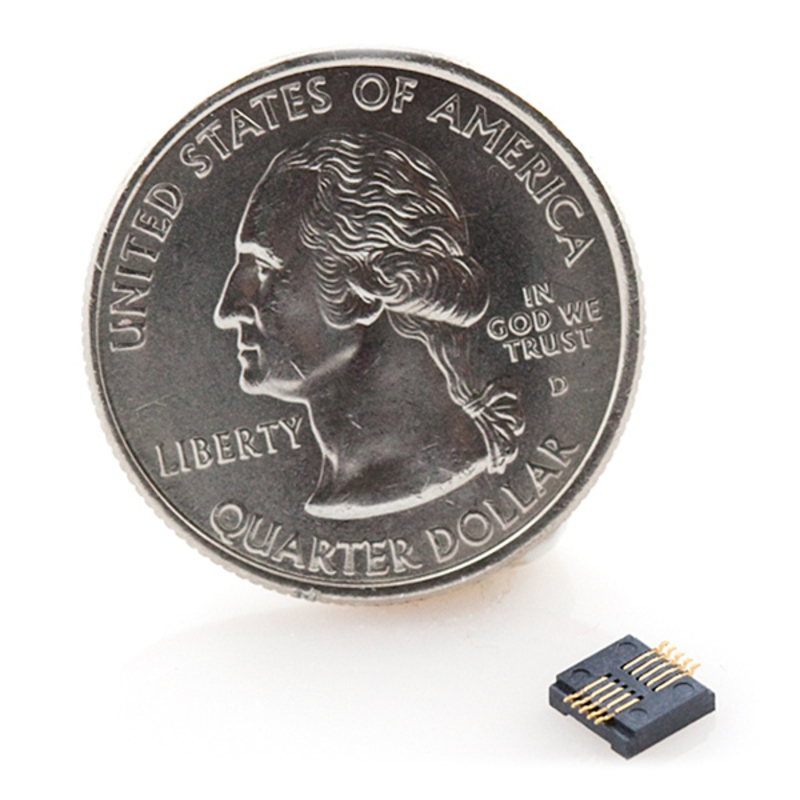

SF-LCD-00570

This is the itty-bitty connector for the Nokia color LCD. 10-Pins. Surface mount. Hard to find. 0.5mm pitch so be careful.

SF-LCD-00710

This is a framed graphical LCD 64x128 with LED backlight. This unit is a very clear STN type LCD with a simple command interface. This new module includes the negative voltage circuitry on board!

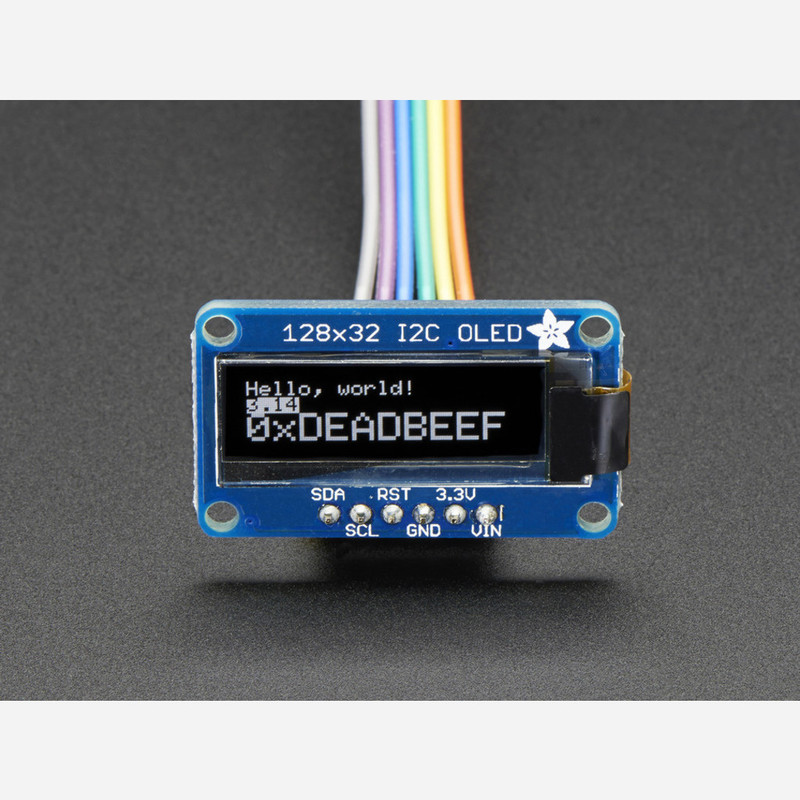

AF-931

These displays are small, only about 1" diagonal, but very readable due to the high contrast of an OLED display.

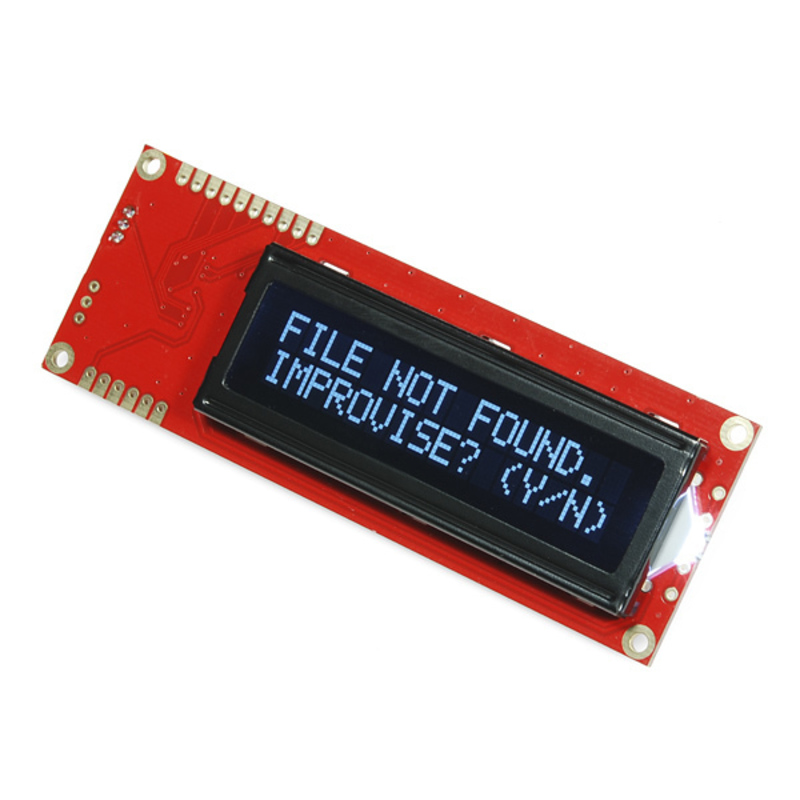

SF-LCD-09395

This is the latest evolution of our serial LCD. Included on a single board is a 16x2 LCD and an embedded circuit based around a PIC 16F88. The on-board PIC takes a TTL serial input and prints the characters it receives onto the LCD. The installed firmware also allows for a num...

DF-DFR0278

The Arduino TFT screen is a backlit LCD screen with headers. You can draw text, images, and shapes to the screen with the TFT library. There is an onboard micro-SD card slot on the back of the screen that can store bitmap images to be displayed.

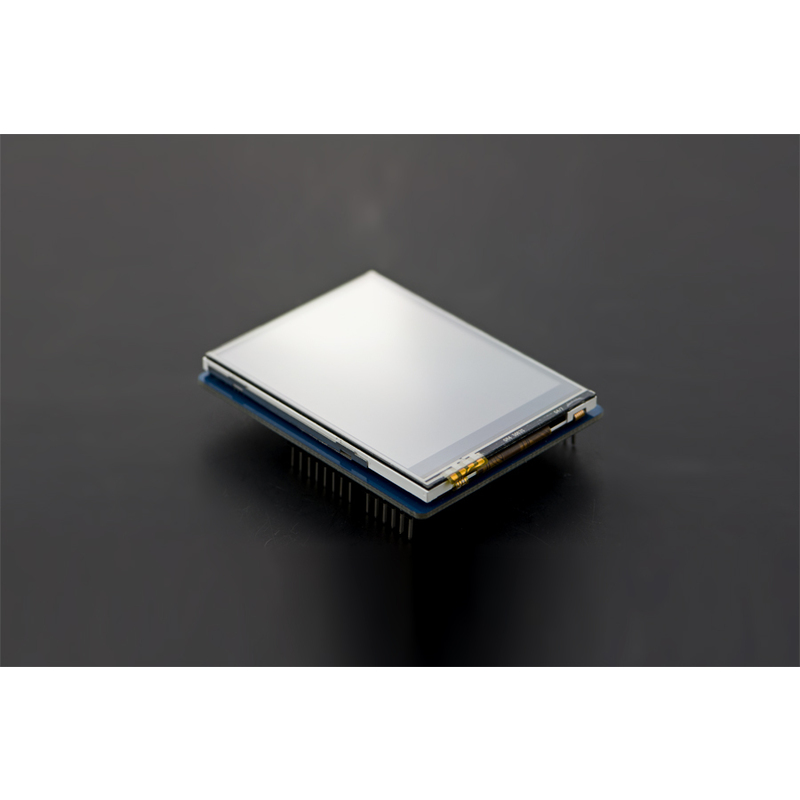

DF-DFR0347

Add some flavor to your Arduino / mbed project with this large colorful touch screen. This TFT Touch screen is a fantastic shield with big (2.8" diagonal) and 240x320 pixels with individual pixel control which could apply to Arduino and mbed. It also comes with micro SD slot a...

AF-3527

If you're looking for the most compact li'l display for a Raspberry Pi (most likely a Pi Zero) project, this might be just the thing you need!

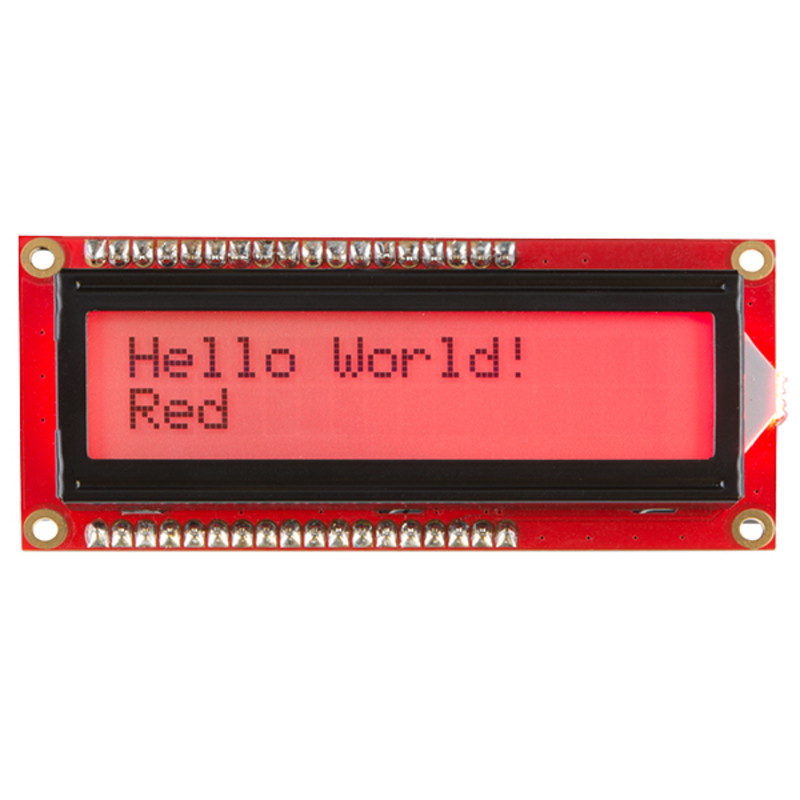

SF-LCD-10862

This is similar to other 16x2 character LCDs that you’ve seen before but with one vibrant difference: The backlight is actually an RGB LED. This means that you can change the backlight of this display to any color you want by controlling the three backlight levels. It also uti...

DF-DFR0009-BP

This is the back panel pcb of 1602 Arduino LCD Shield. This shield allows you to place your own LCD onto this shield. It only requieres a 16x2 HD44780 compatible LCD. This Shield uses Arudino LCD4Bit library.

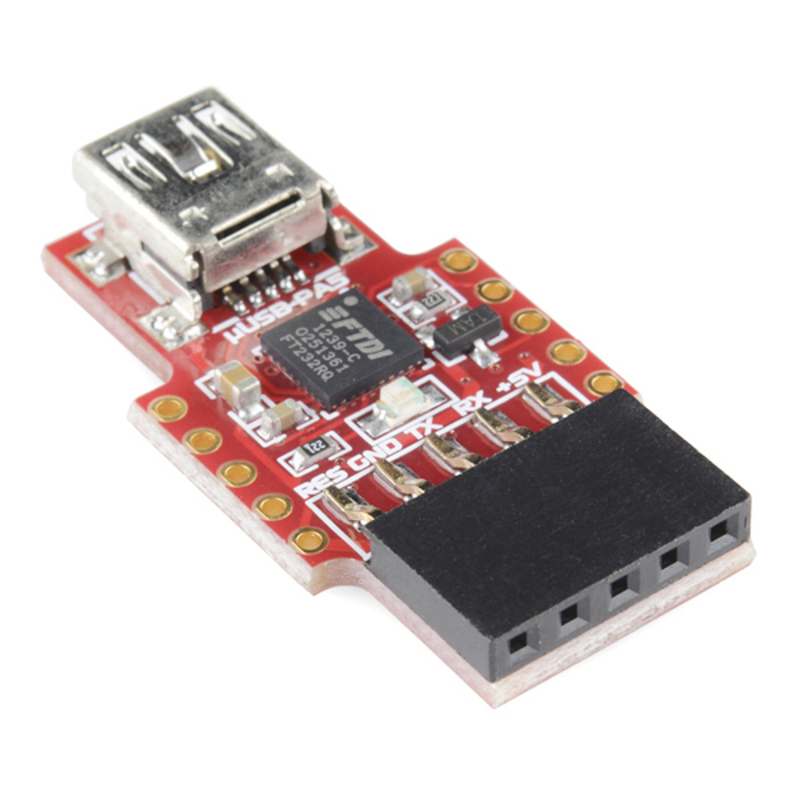

SF-DEV-11814

The microUSB Programming Adapter (μUSB-PA5) is a USB to Serial-TTL UART bridge converter which is very small and easy to use. It uses a mini-B type USB connector to connect to your PC and is based on the FTDI FT232RQ USB to Serial Bridge IC from FTDI. The μUSB-PA5 allows you t...

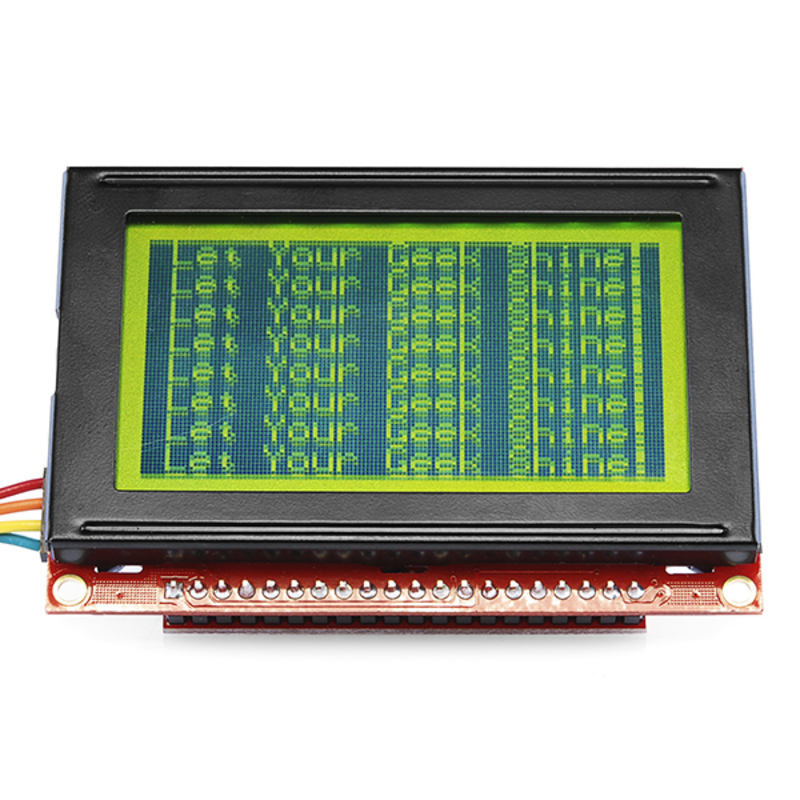

SF-LCD-09351

This is a smaller version of our serial graphic LCD. The SparkFun Serial Graphic LCD backpack is soldered to the 128x64 pixel Graphic LCD and provides the user a simple serial interface to a full range of controls.

SF-LCD-13051

This is the 3.

SF-LCD-09068

The serial enabled LCD allows you to control a parallel based LCD over a single-wire serial interface. Included in this product is a red on black 16x2 LCD connected to our serial backpack. The backpack, based around a PIC16LF88, takes a TTL serial input and prints the characte...

DF-FIT0127

Standard 16x2 character LCD display. It has a basic 16 character by 2 line display with a blue background with white characters. You could get a compatible LCD pannel or IIC LCD backpack here.

SF-LCD-10168

The Nokia 5110 is a basic graphic LCD screen for lots of applications. It was originally intended to be used as a cell phone screen. This one is mounted on an easy to solder PCB.
