Accel, Gyro, and Magnetometers Breakout Boards

LB-LS1026

9DOF MPU-9150 is a 9-axis MotionTracking MEMS device designed for the low power, low cost, and high performance requirements of consumer electronics equipment including smartphones, tablets and wearable sensors.

AF-2738

Control the same hardware as used in space...build your very own Astro Pi with the new Raspberry Pi Sense HAT! The Raspberry Pi Sense HAT is attached on top of the Raspberry Pi via the 40 GPIO pins to create an ‘Astro Pi’. The Sense HAT has several integrated circuit based sen...

AF-2472

If you've ever ordered and wire up a 9-DOF sensor, chances are you've also realized the challenge of turning the sensor data from an accelerometer, gyroscope and magnetometer into actual "3D space orientation"! Orientation is a hard problem to solve. The sensor fusion algorith...

FT-IMU9

Combining an accelerometer, a magnetometer, and a gyroscope all in one tiny package with an Arduino-friendly I2C interface.

SF-SEN-09836

This new version adds 2 standoff holes as well as an extra decoupling capacitor. The ADXL345 is a small, thin, low power, 3-axis MEMS accelerometer with high resolution (13-bit) measurement at up to +-16 g. Digital output data is formatted as 16-bit twos complement and is acce...

AF-1247

Add motion and direction sensing to your wearable FLORA project with this high precision 3-axis Accelerometer+Compass sensor.

AF-1413

Hey rocket man (burnin' out your fuse out there alone) ever wonder how fast you're rocketing? The ADXL377 +-200g 3-axis accelerometer may be able to tell the answer.

SF-SEN-12786

The ADXL337 is a small, thin, low power, complete 3-axis accelerometer with signal conditioned analog voltage outputs that measures acceleration with a full-scale range of ±3g. This board has broken out all the pins you’ll need to get the necessary data from the accelerometers...

SF-SEN-11447

Have you ever wanted your project to just “hibernate” until someone picks it up or moves it? It’s a great strategy for dramatically extending the battery life of a widget that doesn’t need to be active all the time. The SparkFun Wake-on-Shake board is designed to make it reall...

AF-2020

Add motion, direction and orientation sensing to your wearable FLORA project with this high precision 9-DOF sensors. Inside are three sensors, one is a classic 3-axis accelerometer, which can tell you which direction is down towards the Earth (by measuring gravity) or how fast...

AF-163

We've updated our favorite triple-axis accelerometer to now have an on-board 3.3V regulator - making it a perfect choice for interfacing with a 5V microcontroller such as the Arduino. This breakout comes with 3 analog outputs for X, Y and Z axis measurements on a 0.75"x0.75" b...

SF-SEN-09269

Breakout board for the 3 axis ADXL335 from Analog Devices. This is the latest in a long, proven line of analog sensors - the holy grail of accelerometers. The ADXL335 is a triple axis MEMS accelerometer with extremely low noise and power consumption - only 320uA! The sensor ha...

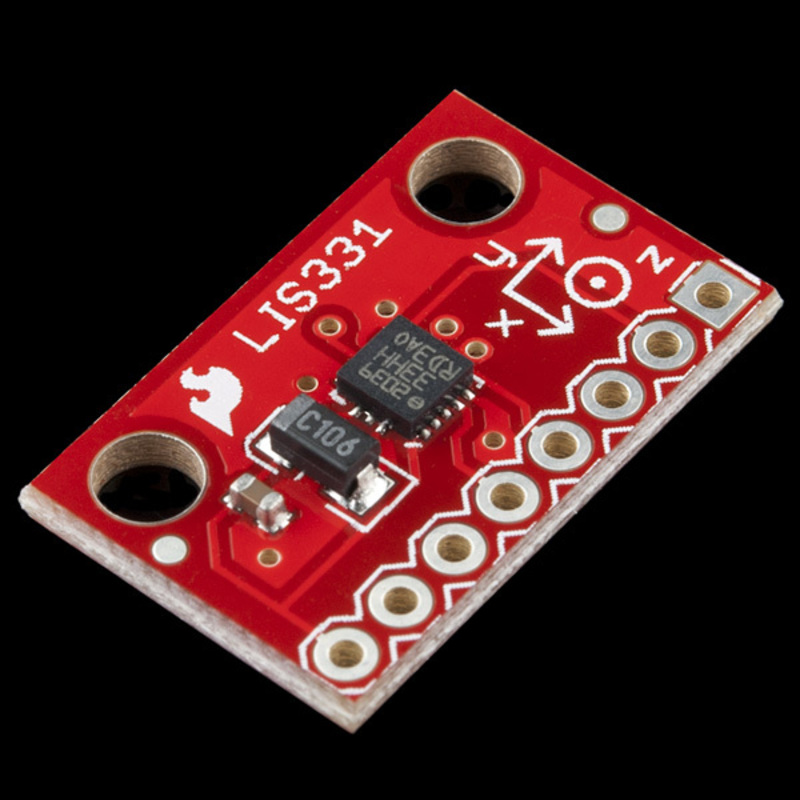

SF-SEN-10345

This is a breakout board for the ultra low-power LIS331HH three axis linear accelerometer. The device has a digital I2C/SPI serial interface which makes it ideal for using in embedded applications. All major pins are broken out to 0.1" spaced headers. It also includes two moun...

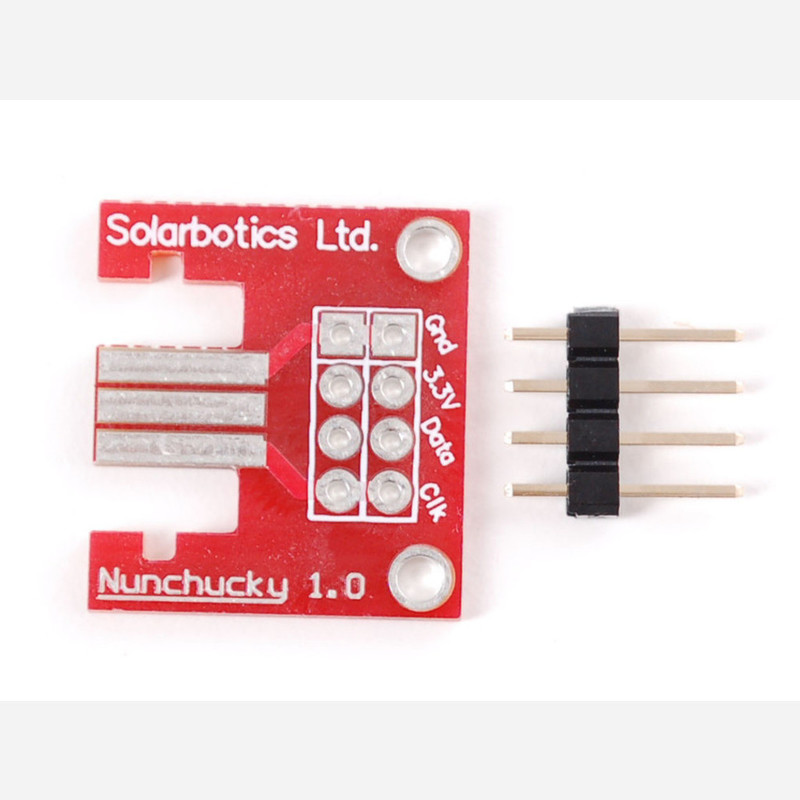

AF-345

The Wii Nunchuck has proven to be an excellent bargain - switches, joystick, and accelerometer in one handy package! But it's a shame to hack off the connector to make use of it, so use the Solarbotics Nunchucky breakout board adapter!

SF-SEN-12756

This breakout board makes it easy to use the tiny MMA8452Q accelerometer in your project. The MMA8452Q is a smart low-power, three-axis, capacitive MEMS accelerometer with 12 bits of resolution. This accelerometer is packed with embedded functions with flexible user programmab...

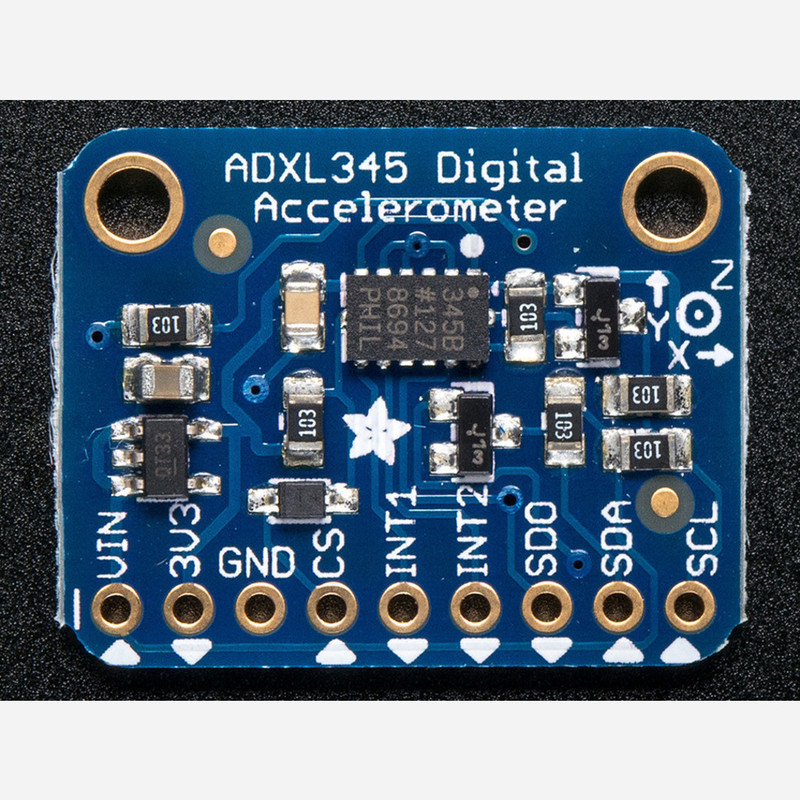

AF-1231

Filling out our accelerometer offerings, we now have the really lovely digital ADXL345 from Analog Devices, a triple-axis accelerometer with digital I2C and SPI interface breakout.

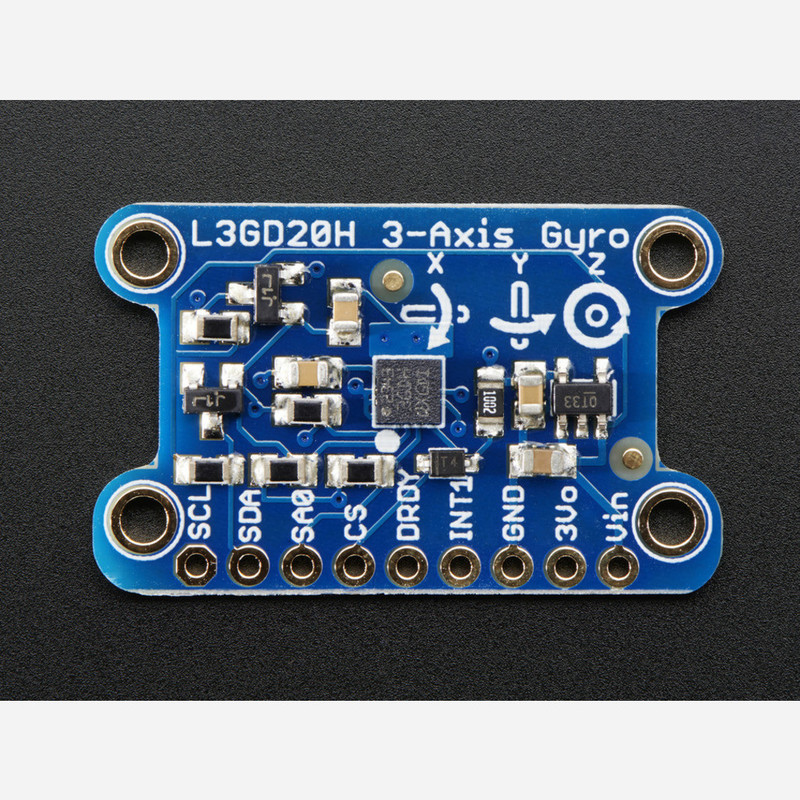

AF-1032

A gyroscope is a type of sensor that can sense twisting and turning motions. Often paired with an accelerometer, you can use these to do 3D motion capture and inertial measurement (that is - you can tell how an object is moving!) As these sensors become more popular and easier...

SF-SEN-12803

The ADXL377 is a small, thin, low power, complete 3-axis accelerometer with signal conditioned analog voltage outputs that has a full-scale range of ±200g for measuring more extreme changes in motion, shock or vibration. This board has broken out all the pins you’ll need to g...

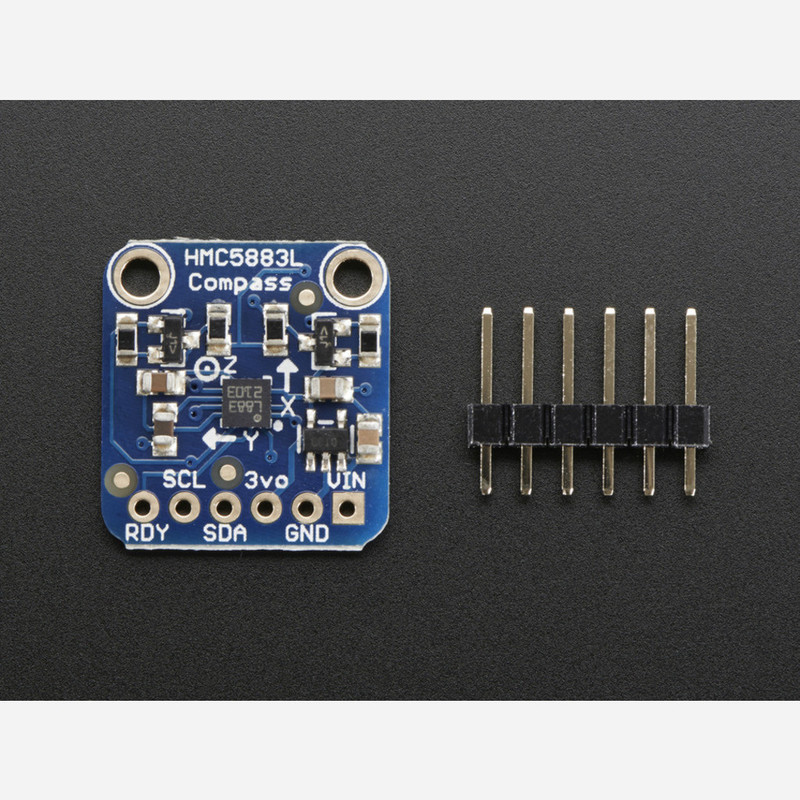

AF-1746

He told you "Go West, young maker!" - but you don't know which way is West! Ah, if only you had this triple-axis magnetometer compass module. A magnetometer can sense where the strongest magnetic force is coming from, generally used to detect magnetic north.We based this break...

AF-2809

The LIS3DH is a very popular low power triple-axis accelerometer. It's low-cost, but has just about every 'extra' you'd want in an accelerometer:

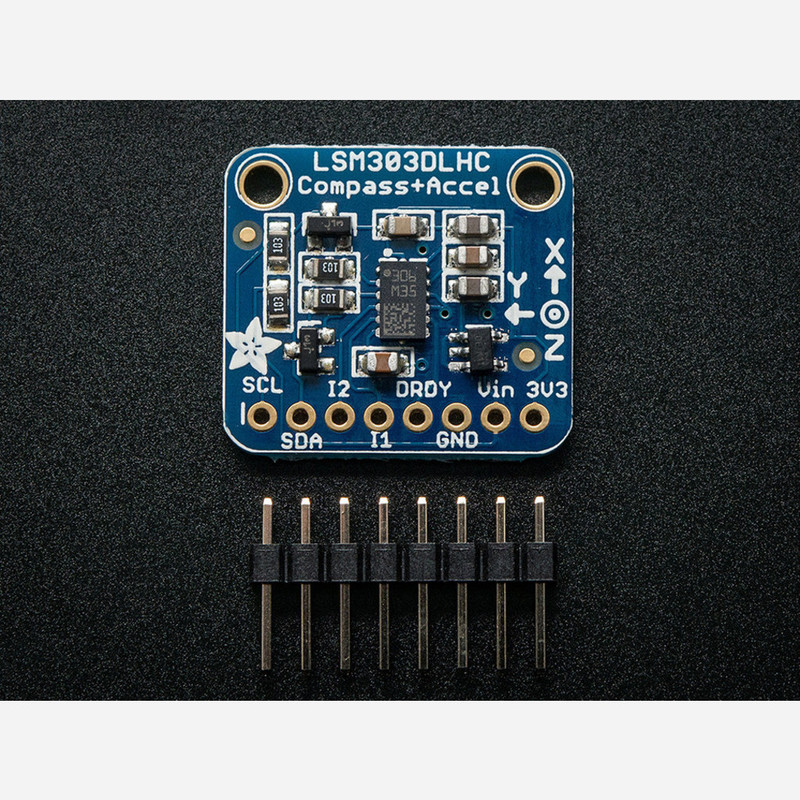

AF-1120

He told you "Go West, young maker!" - but you don't know which way is West! Ah, if only you had this triple-axis accelerometer/magnetometer compass module.

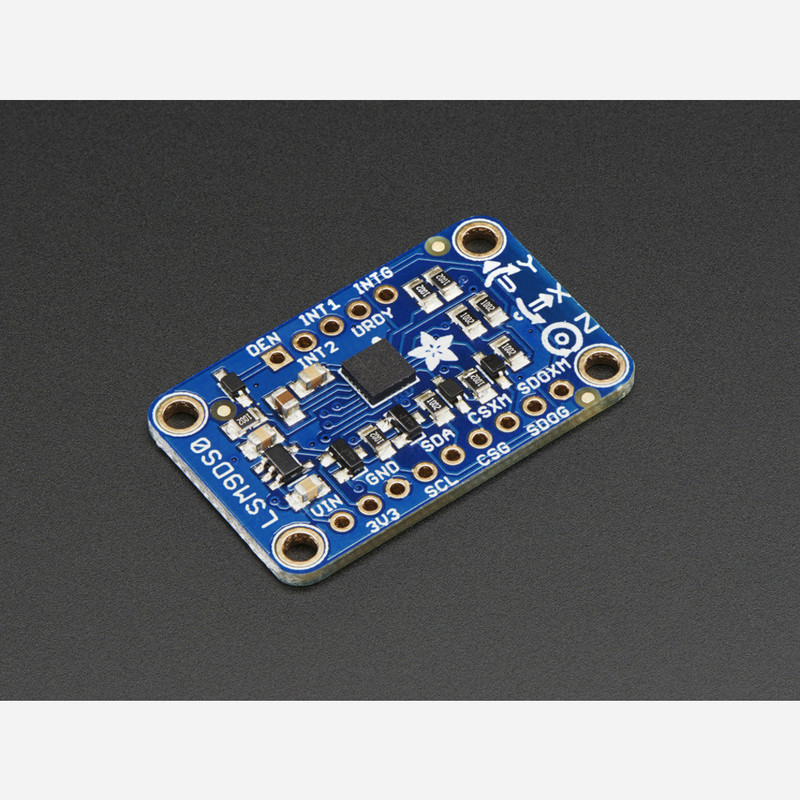

AF-2021

Add motion, direction and orientation sensing to your Arduino project with this all-in-one 9-DOF sensor. Inside the chip are three sensors, one is a classic 3-axis accelerometer, which can tell you which direction is down towards the Earth (by measuring gravity) or how fast th...

AF-3463

The NXP Precision 9DoF breakout combines two of the best motion sensors we've tested here at Adafruit: The FXOS8700 3-Axis accelerometer and magnetometer, and the FXAS21002 3-axis gyroscope.

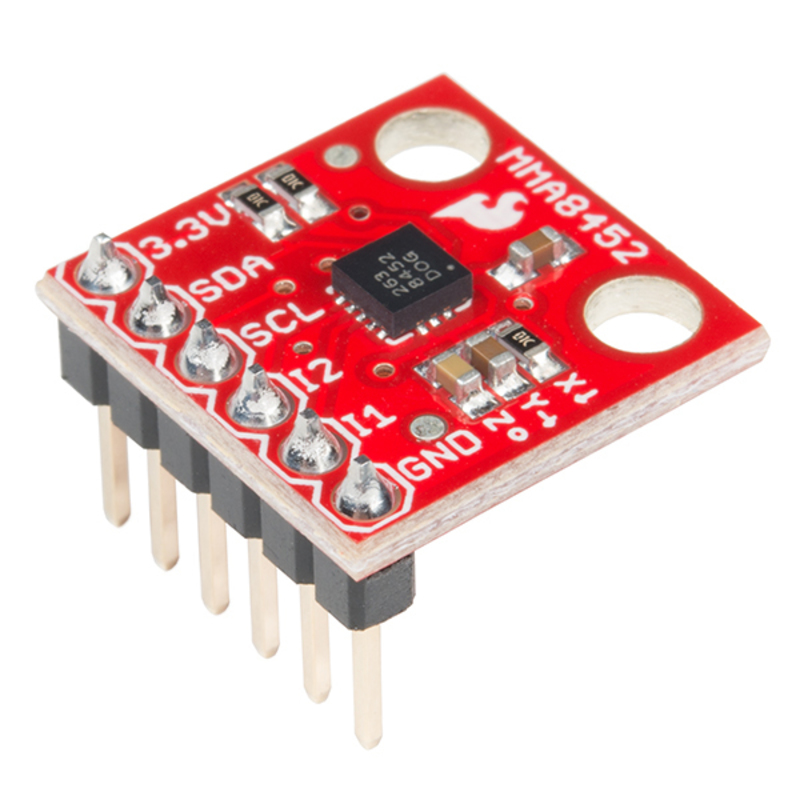

SF-BOB-13926

This breakout board makes it easy to use the tiny MMA8452Q accelerometer in your project. The MMA8452Q is a smart, low-power, three-axis, capacitive MEMS accelerometer with 12 bits of resolution. This accelerometer is packed with embedded functions with flexible user-programma...

AF-1604

This inertial-measurement-unit combines 3 of the best quality sensors available on the market to give you 11 axes of data: 3 axes of accelerometer data, 3 axes gyroscopic, 3 axes magnetic (compass), barometric pressure/altitude and temperature. We tested many different 'combin...

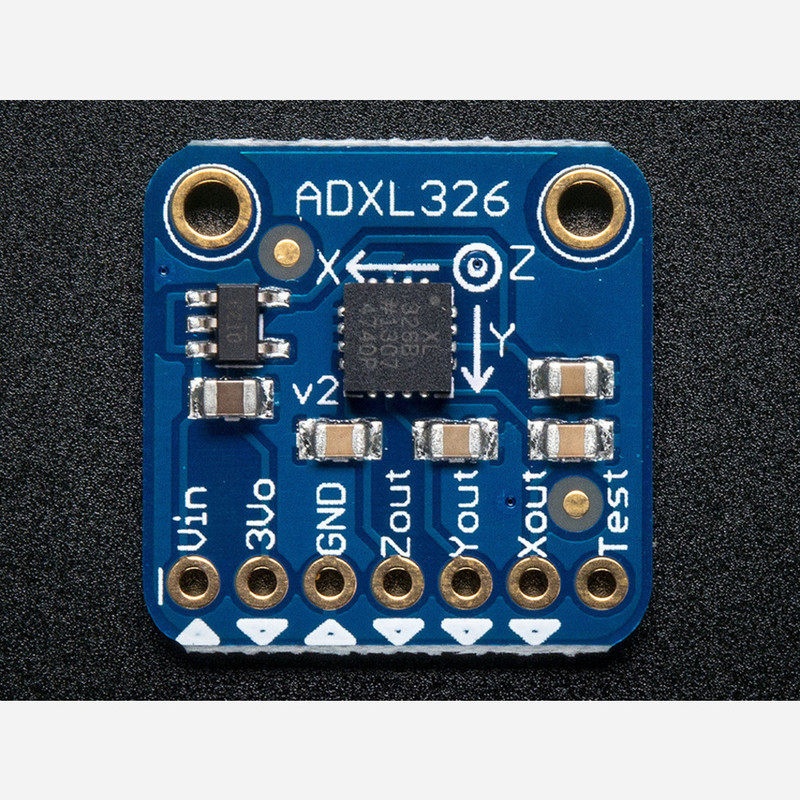

AF-1018

We've now got a wider range version of favorite triple-axis accelerometer - it even has an on-board 3.

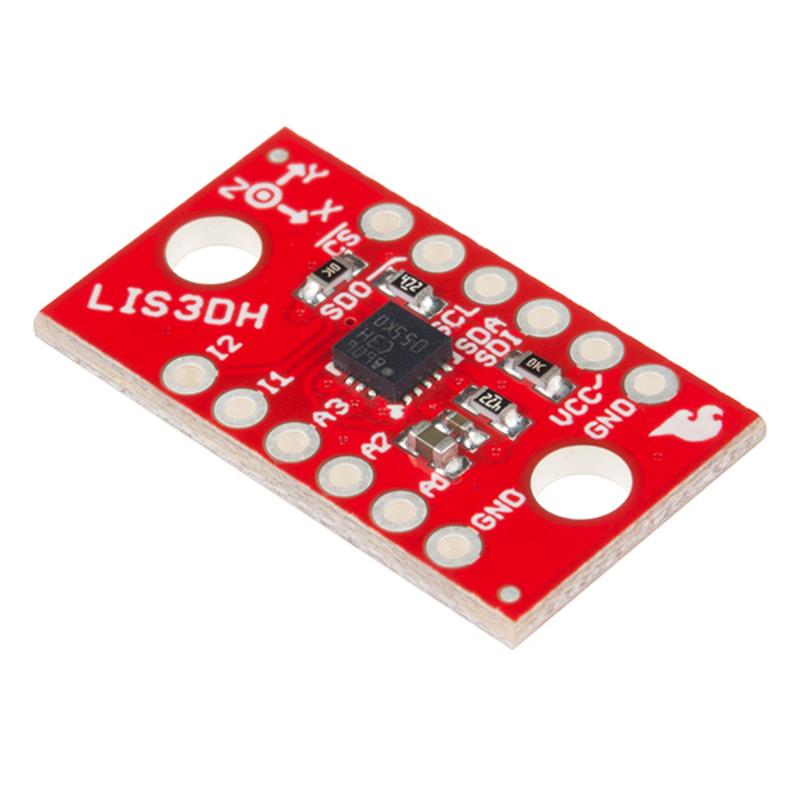

SF-SEN-13963

The LIS3DH Breakout is a smart, low-power, three-axis, capacitive micro-machined accelerometer with 12 bits of resolution that you can use to add translation detection to your project. It would be classified as a 3DoF, or 3 Degrees of Freedom. Inertial Measurement Units (or IM...

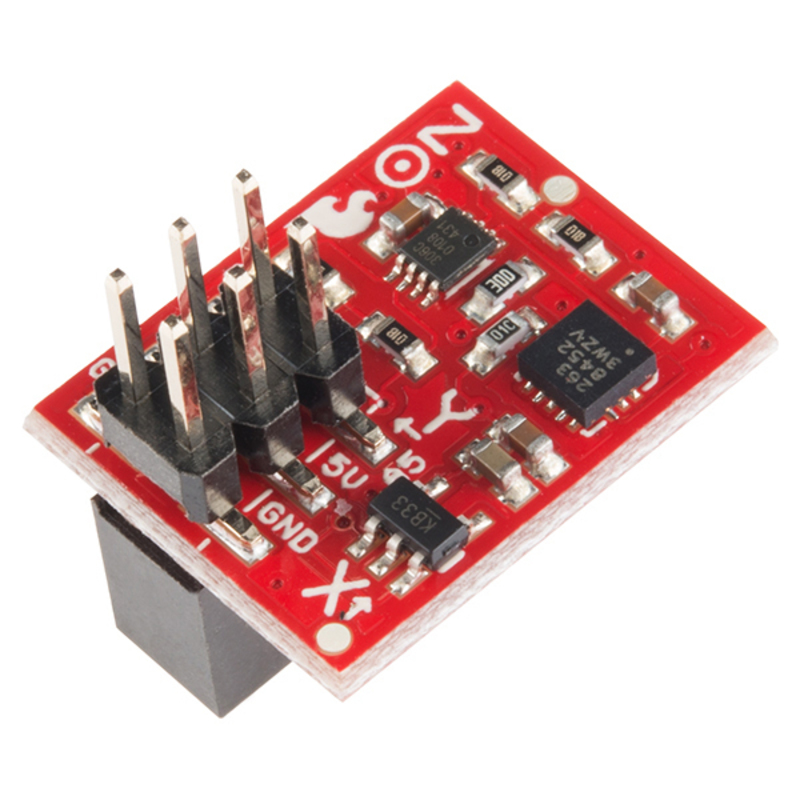

SF-SEN-12589

The Accelerometer sensor is an add-on for your RedBot that provides bump and motion detection. The sensor works by measuring acceleration forces on the x, y, and z axis. By measuring the amount of acceleration (or lack there of) your robot can get a better understanding of its...

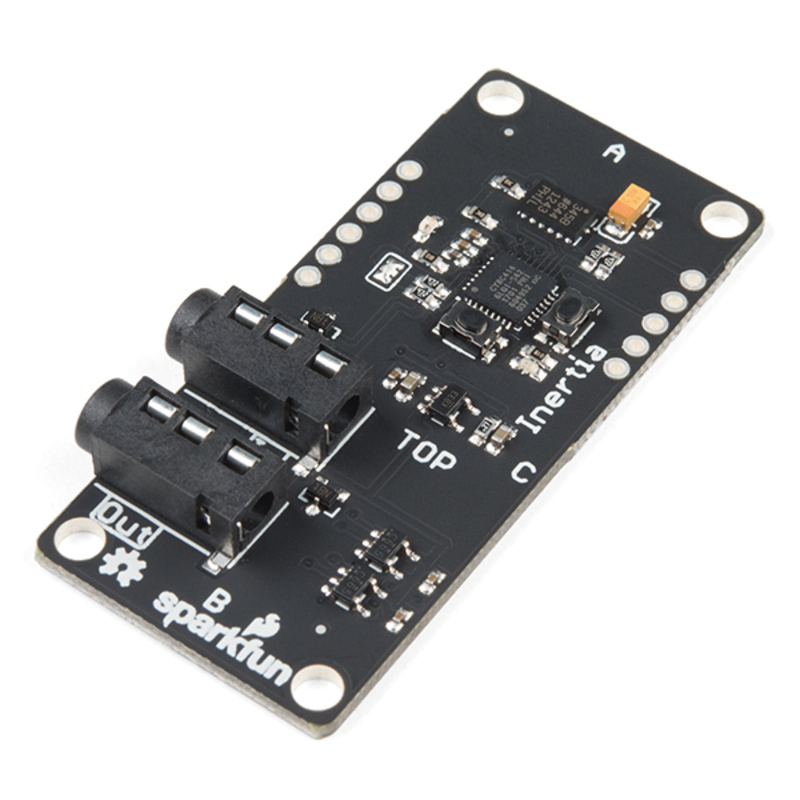

SF-DEV-13992

The Spectacle Inertia Board makes it easy to sense motion or orientation with a Spectacle project. The Spectacle Inertia Board is designed to allow your Spectacle to detect whether it is moving or stationary, or whether it is under acceleration. At the heart of each Inertia Bo...

AF-4022

Measure the invisible magnetic fields that surround us, with this wide-range magnetometer. The MLX90393 is a wide range magnetic field sensor, that can measure 16-bits in ranges from ±5mT up to ±50mT in all 3 axes.
